Compressor HVAC: Testing and Inspection

Compressor Flowchart

NOTE: First, check for refrigerant pressure.

Part 1:

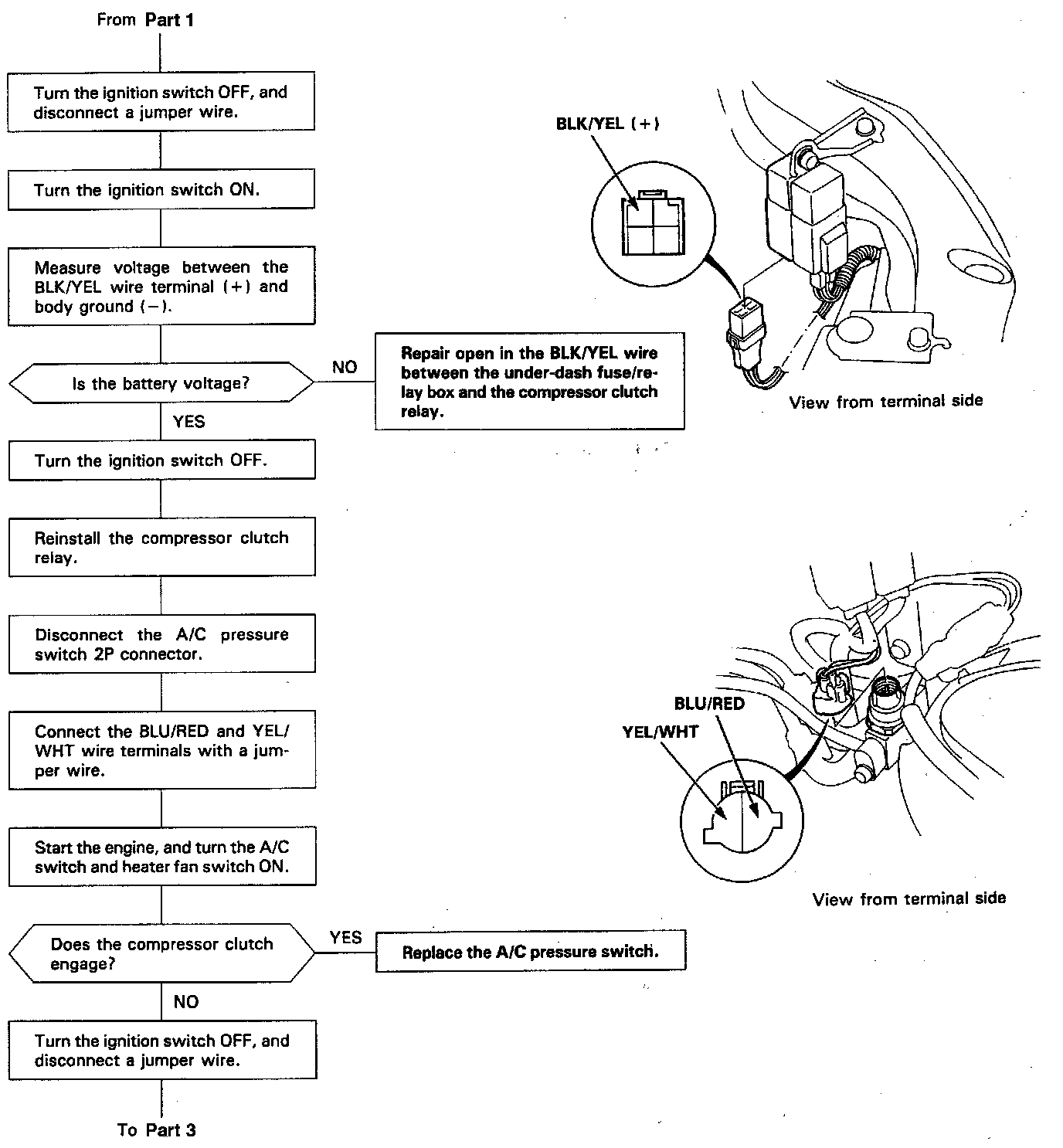

Part 2:

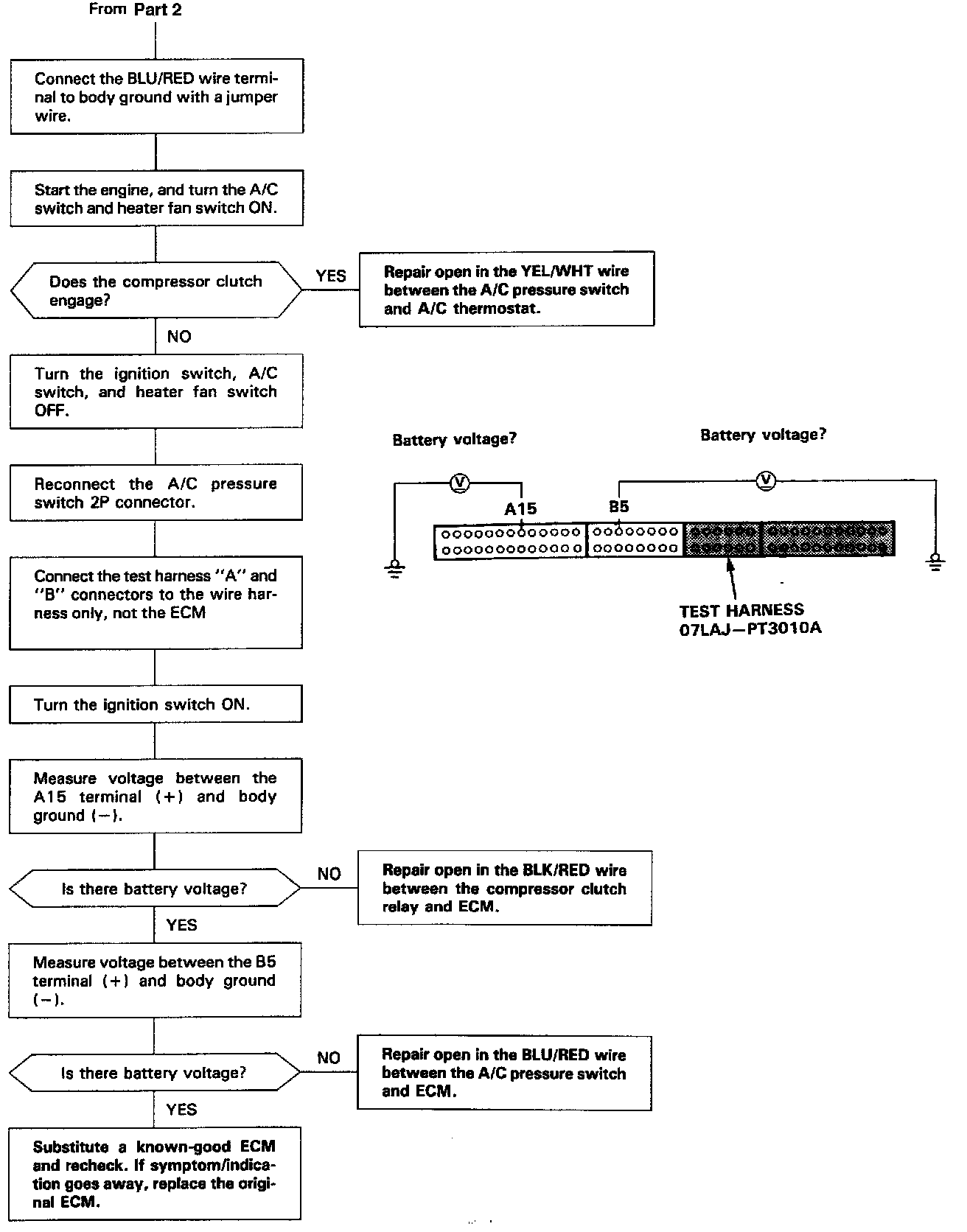

Part 3:
