Home >> Honda >> 1995 >> Civic Hatchback L4-1.6L SOHC (VTEC) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Brake Fluid Accumulator >> Service and Repair >> Removal and Installation

Removal and Installation

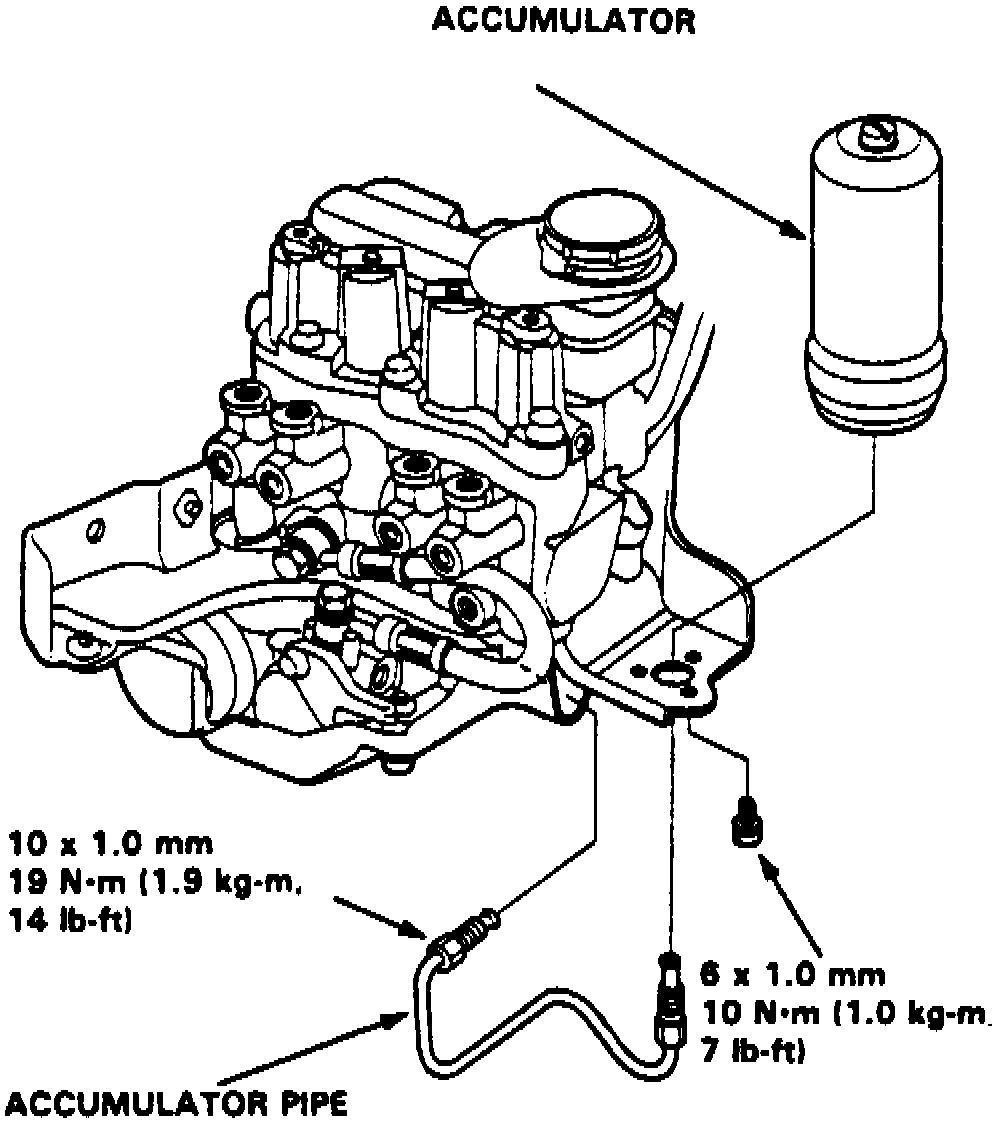

Fig. 95 Accumulator Replacement:





Refer to Fig. 95 when replacing accumulator.
