Front Door Panel: Service and Repair

Door Panel/Plastic Cover Replacemen

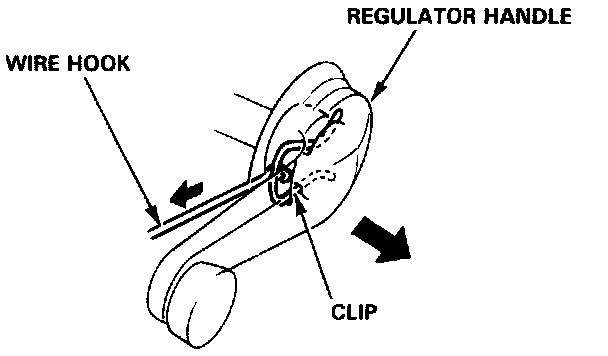

If applicable, remove the regulator handle by pulling the clip out with a wire hook.

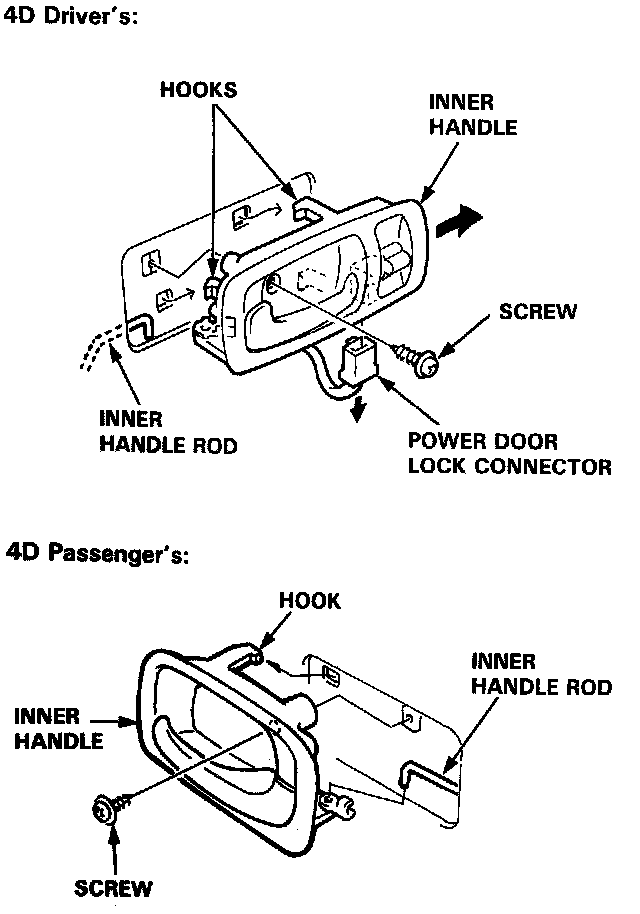

2. Remove the screw, then pull the inner handle out half-way and disconnect the inner handle rod and power door lock connector.

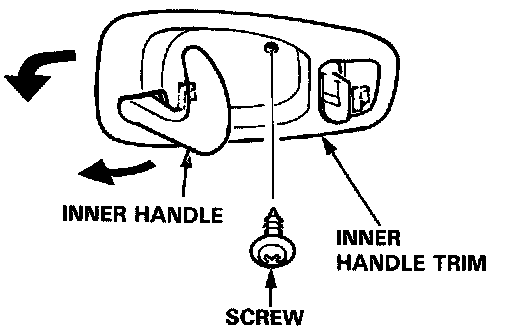

Remove the screw, then remove the inner handle trim while pulling the inner handle.






3. Remove the screw, then remove the armrest pocket. If applicable, disconnect the power window connector (2D).






Doors
Door Panel/Plastic Cover Replacement

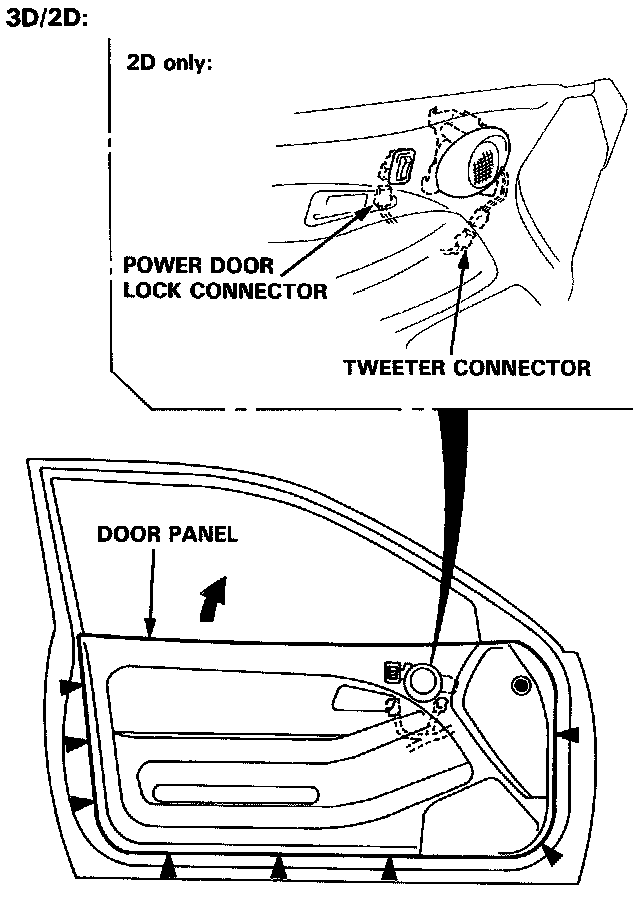

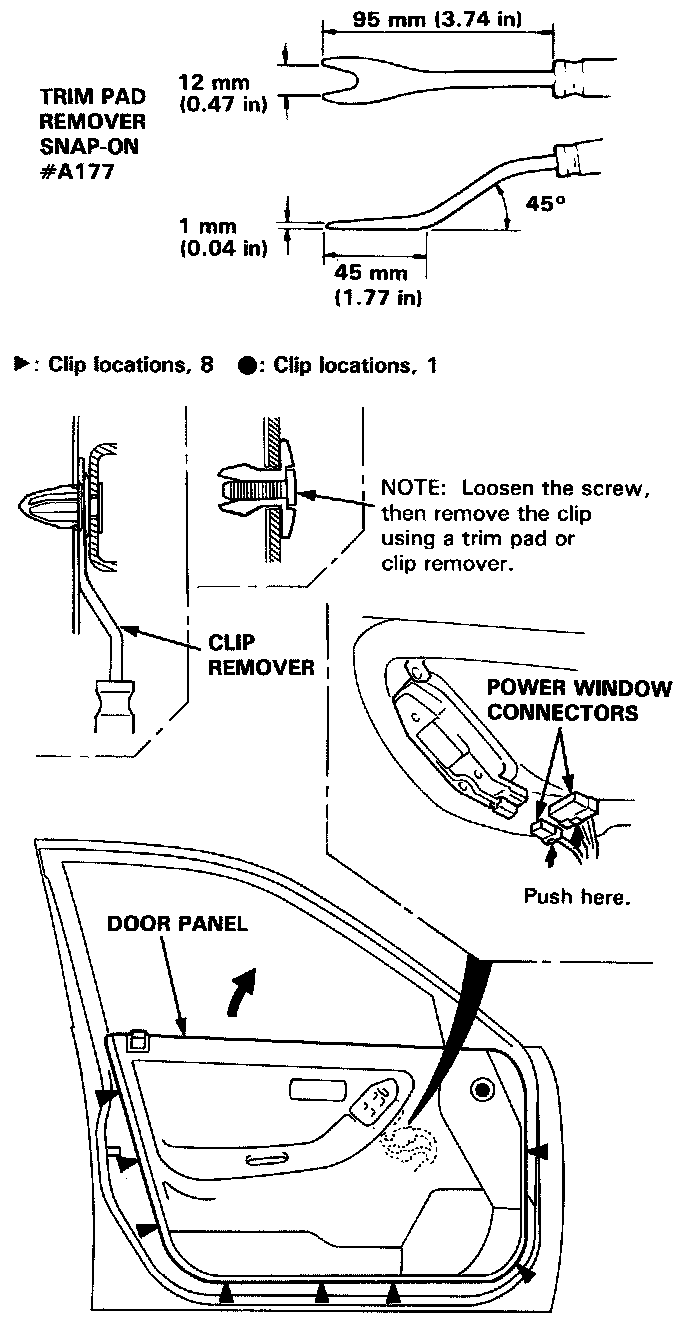

4. Remove the clips attaching the door panel (see trim pad remover). Remove the door panel by pulling it upward. If applicable, disconnect the following:
- Power window connector (40)
- Power door lock connector (2D driver's)






- Tweeter connector (2D EX option)

NOTE: Remove the door panel with as little bending as possible to avoid creasing or breaking it.

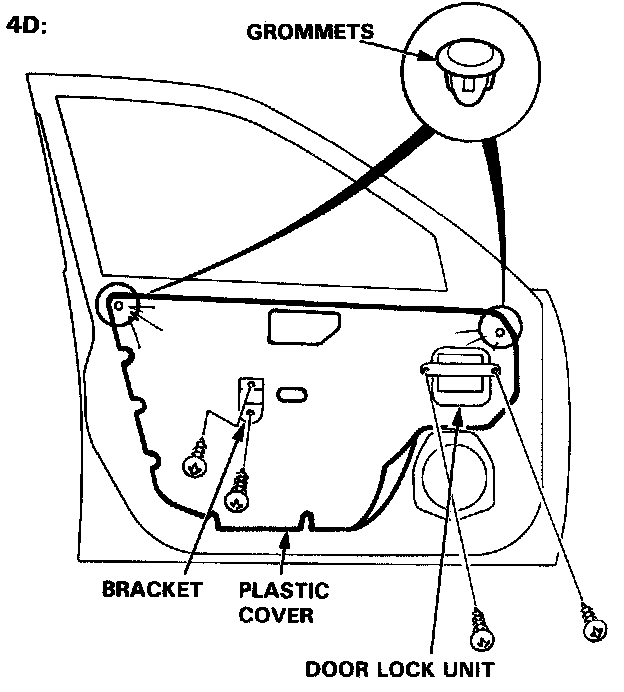

5. Remove the grommets, bracket, door lock unit (4D/2D) and inner handle (3D/2D), then carefully remove the plastic cover.
6. Install the door panel and plastic cover in the reverse order of removal.

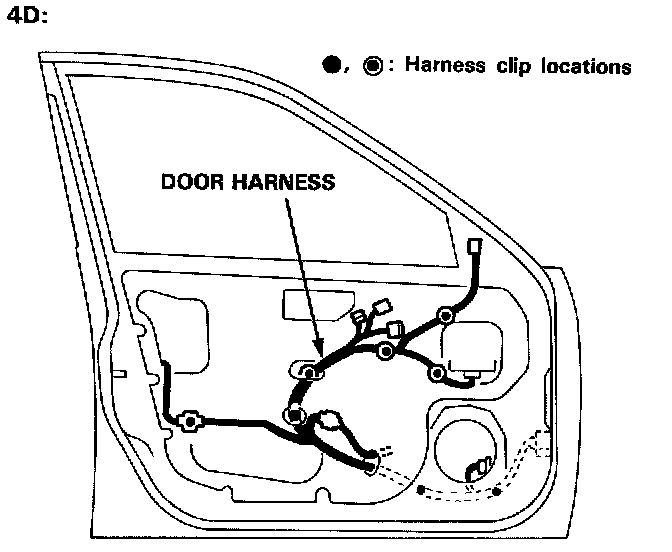

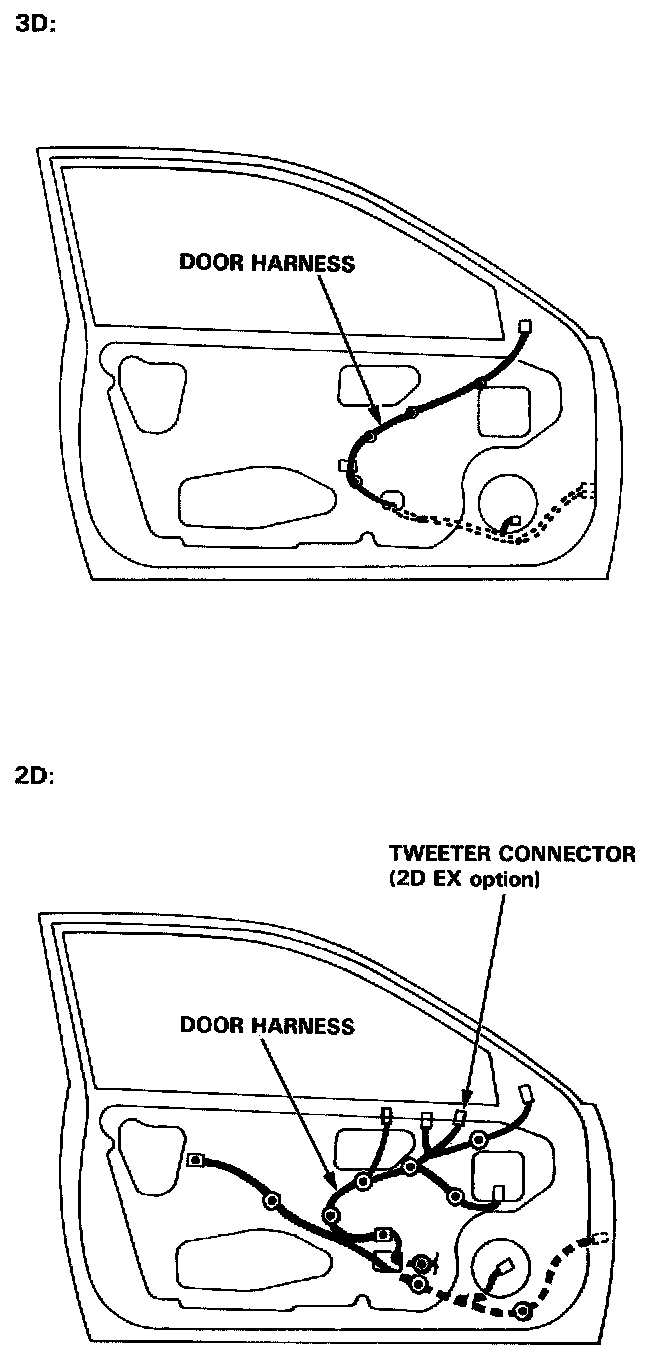

NOTE: Make sure the door harness and connectors are fastened correctly on the door.

Door Panel/Plastic Cover Replacement

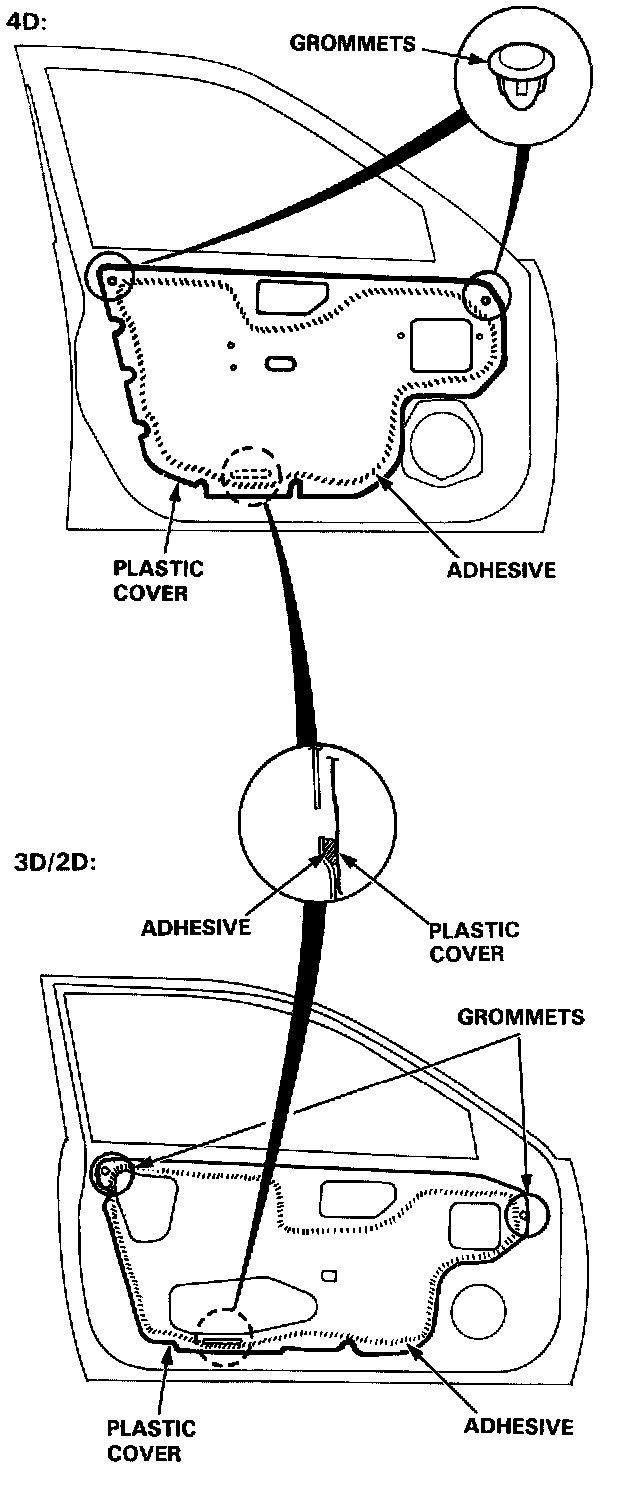

Apply adhesive along the edge where necessary to maintain a continuous seal and prevent water leaks
- Before fastening the door panel, make sure the door harness is not pinched.
