DTC List - Air Bag System

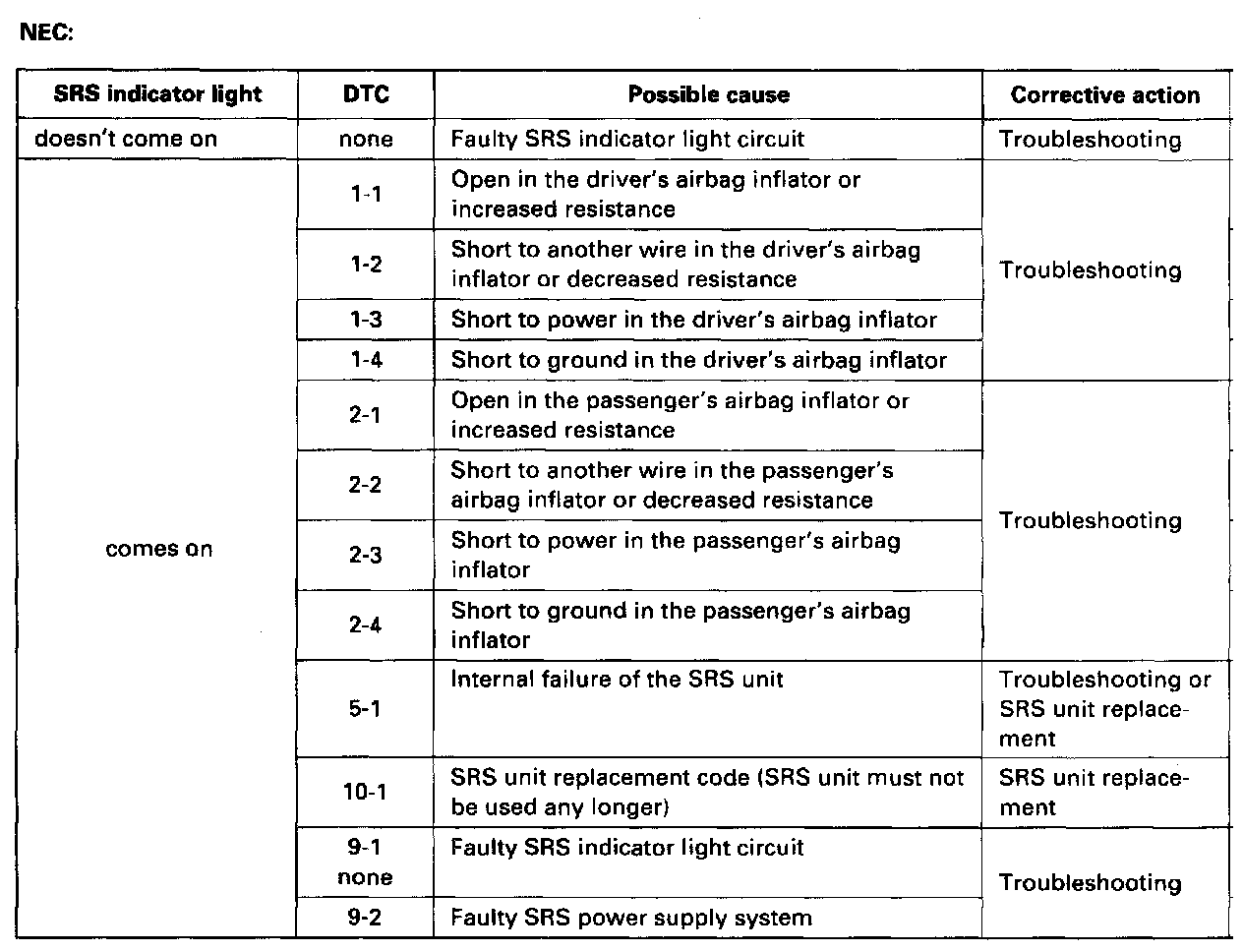

DIAGNOSTIC TROUBLE CODE (DTC) CHART

DTCs 1-1 - 10-1:

NOTE:
- If multiple DTCs including DTC 5-1 are indicated, first troubleshoot all DTCs except DTC 5-1, then erase the memory, and recheck the DTC indication. If DTC 5-1 doesn't reappear, it is not necessary to replace the SRS unit.
- When you return the SRS unit in case of a claim, do not erase the memory. The data will remain in the memory even when the ignition switch is turned off.
- If an intermittent failure occurs, DTC 9-1 will be indicated. In case of a continuous problem, there will be no DTC.
