Bell Housing: Service and Repair

Mainshaft

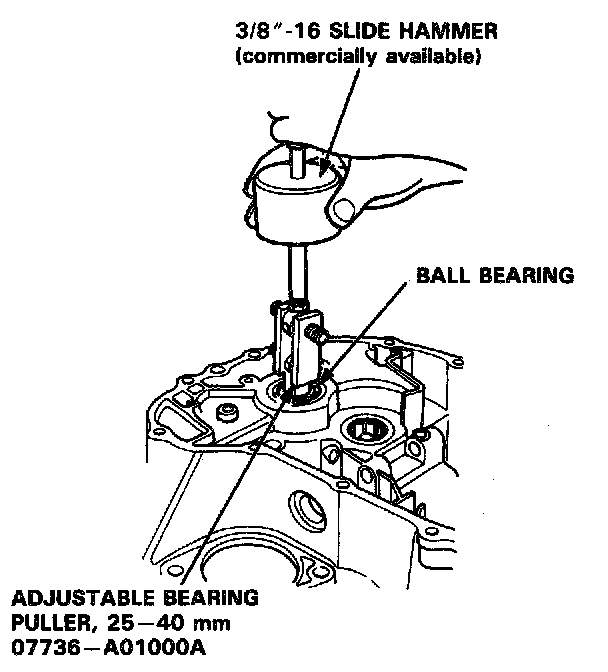

1. Remove the ball bearing using the special tools.

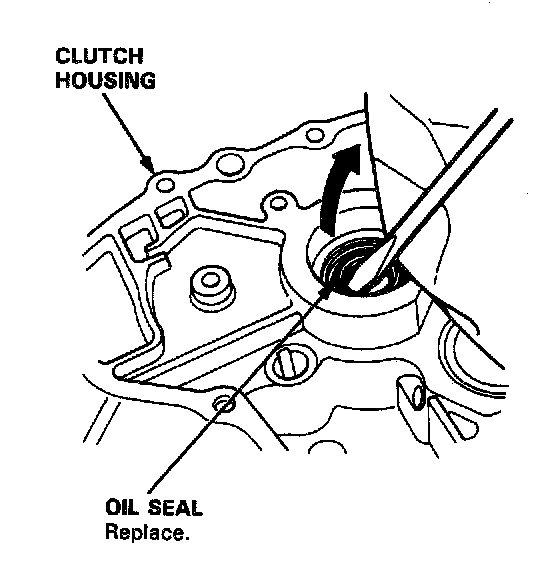

2. Remove the oil seal from the clutch housing.

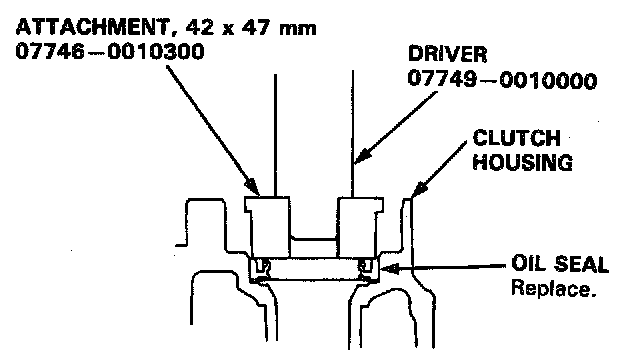

3. Drive the new oil seal into the clutch housing using the special tools as shown.

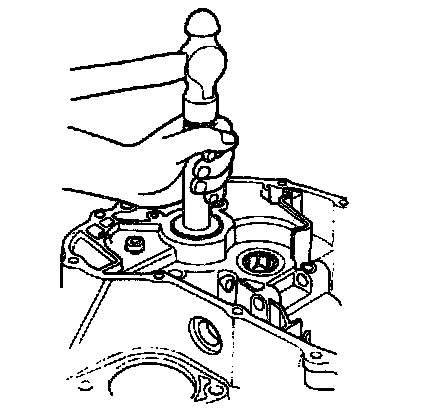

4. Drive the ball bearing with the shielded side down into the clutch housing using the special tools as shown.

Countershaft

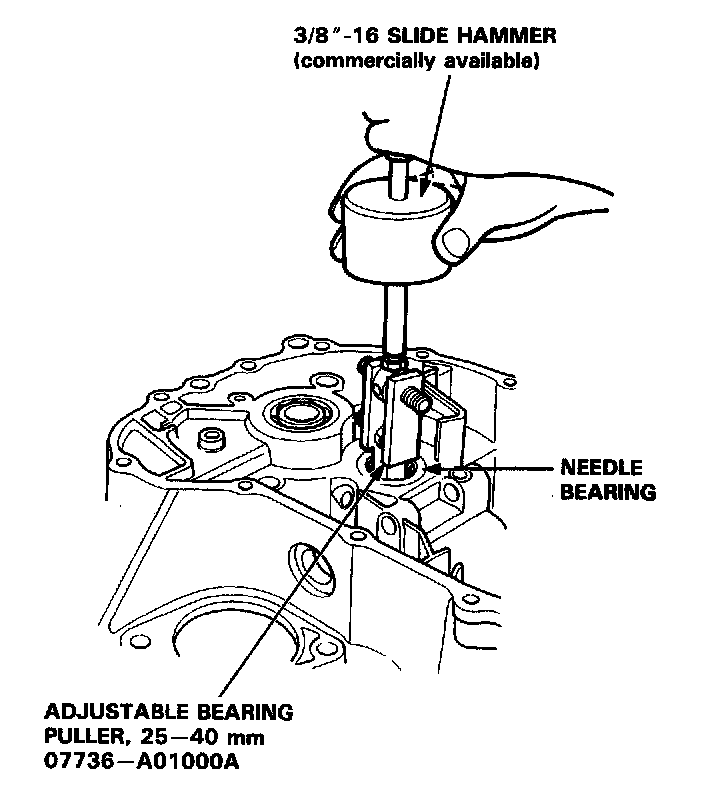

1. Remove the needle bearing using the special tools. then remove the oil guide plate.




2. Install the oil guide plate, then drive the needle bearing into the clutch housing using the special tools as shown.

NOTE: Position the needle bearing with the oil hole facing up.
