Computers and Control Systems

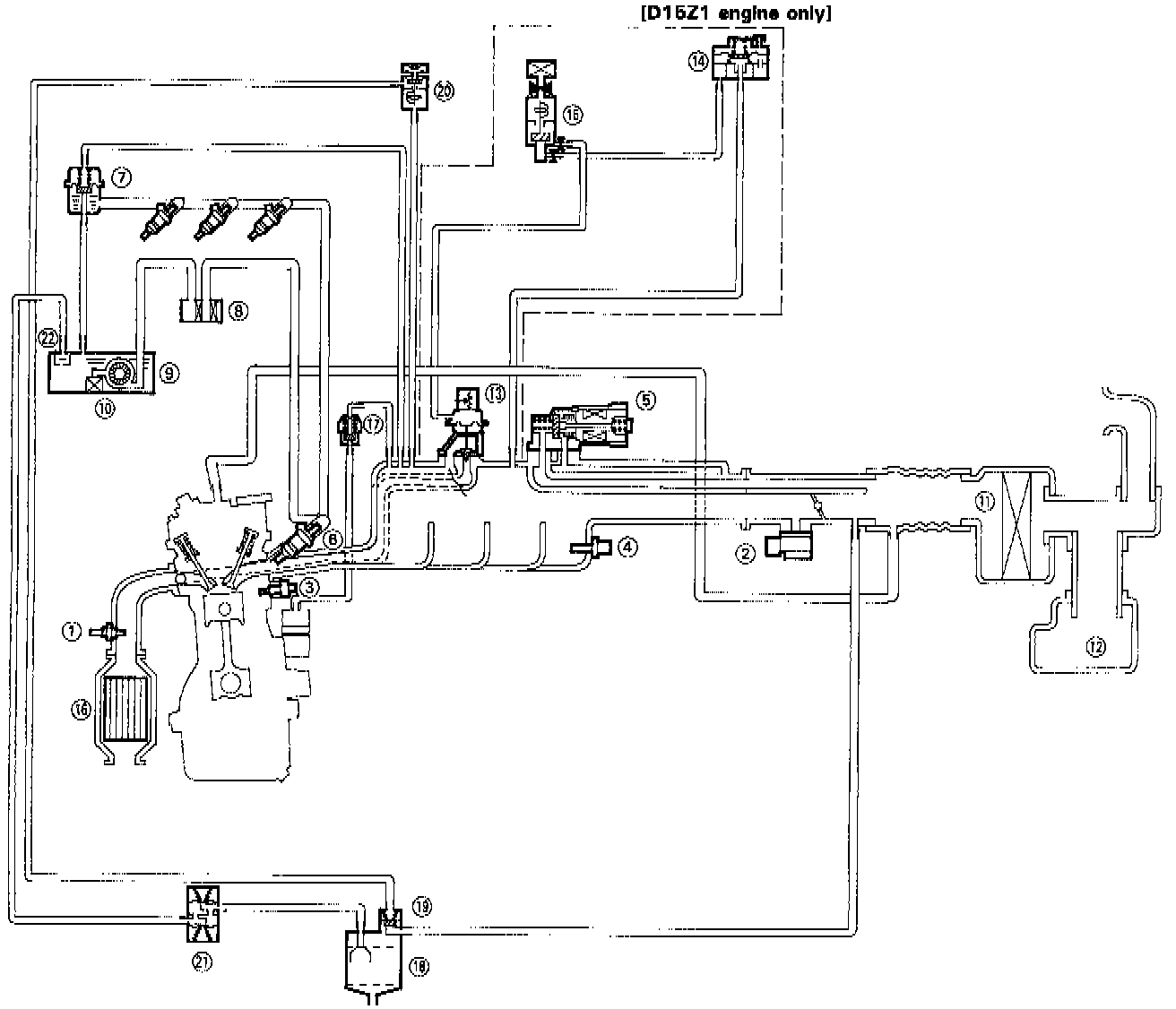

1. OXYGEN SENSOR(O2S)
[D5B8 engine (except California model)]
1. HEATED OXYGEN SENSOR (HO2S)
2. MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
3. ENGINE COOLANT TEMPERATURE (ECT) SENSOR
4. INTAKE AIR TEMPERATURE (IAT) SENSOR
5. IDLE AIR CONTROL (IAC) VALVE
6. FUEL INJECTOR
7. FUEL PRESSURE REGULATOR
8. FUEL FILTER
9. FUEL PUMP (FP)
10. FUEL TANK
11. AIR CLEANER (ACL)
12. RESONATOR
13. EXHAUST GAS RECIRCULATION (EGR) VALVE
[D15Z1 engine]
14. EXHAUST GAS RECIRCULATION (EGR)
VACUUM CONTROL VALVE [D15Z1 engine]
15. EXHAUST GAS RECIRCULATION (EGR)
CONTROL SOLENOID VALVE [D15Z1 engine]
16. THREE WAY CATALYTIC CONVERTER (TWC)
17. POSITIVE CRANKCASE VENTILATION (PCV) VALVE
18. EVAPORATIVE EMISSION (EVAP) CONTROL CANISTER
19. EVAPORATIVE EMISSION (EVAP)
PURGE CONTROL DIAPHRAGM VALVE
20. EVAPORATIVE EMISSION (EVAP)
PURGE CONTROL SOLENOID VALVE
21. EVAPORATIVE EMISSION (EVAP)
TWO WAY VALVE
22. FUEL TANK EVAPORATIVE EMISSION (EVAP) VALVE
