Engine and Vehicle Data Sensors

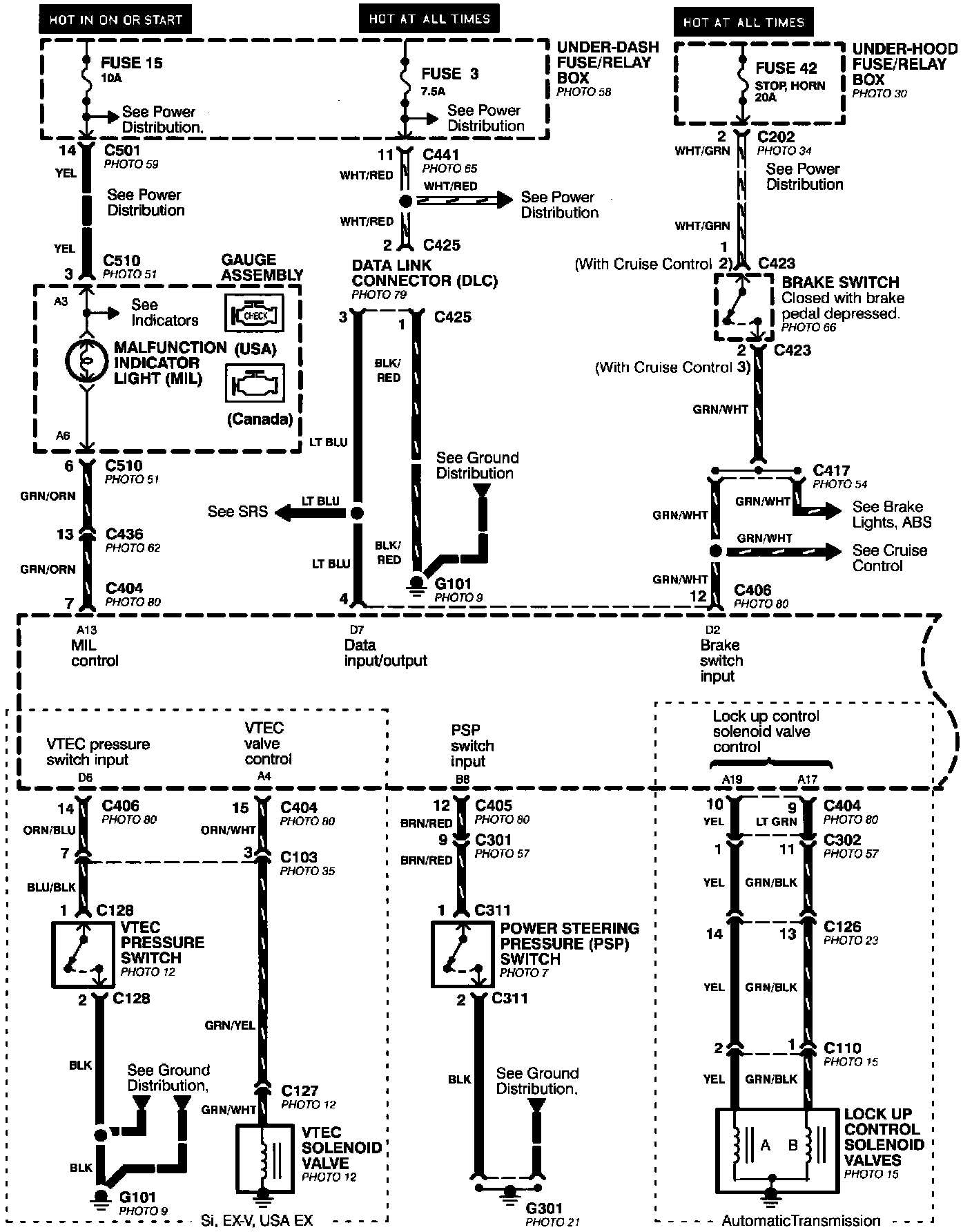

Programmed Fuel Injection System (PGM-FI) (All Except VX)- Engine And Vehicle Data Sensors (Part 1 Of 2):



Programmed Fuel Injection System (PGM-FI) (All Except VX)- Engine And Vehicle Data Sensors (Part 2 Of 2):
