Starting System: Locations

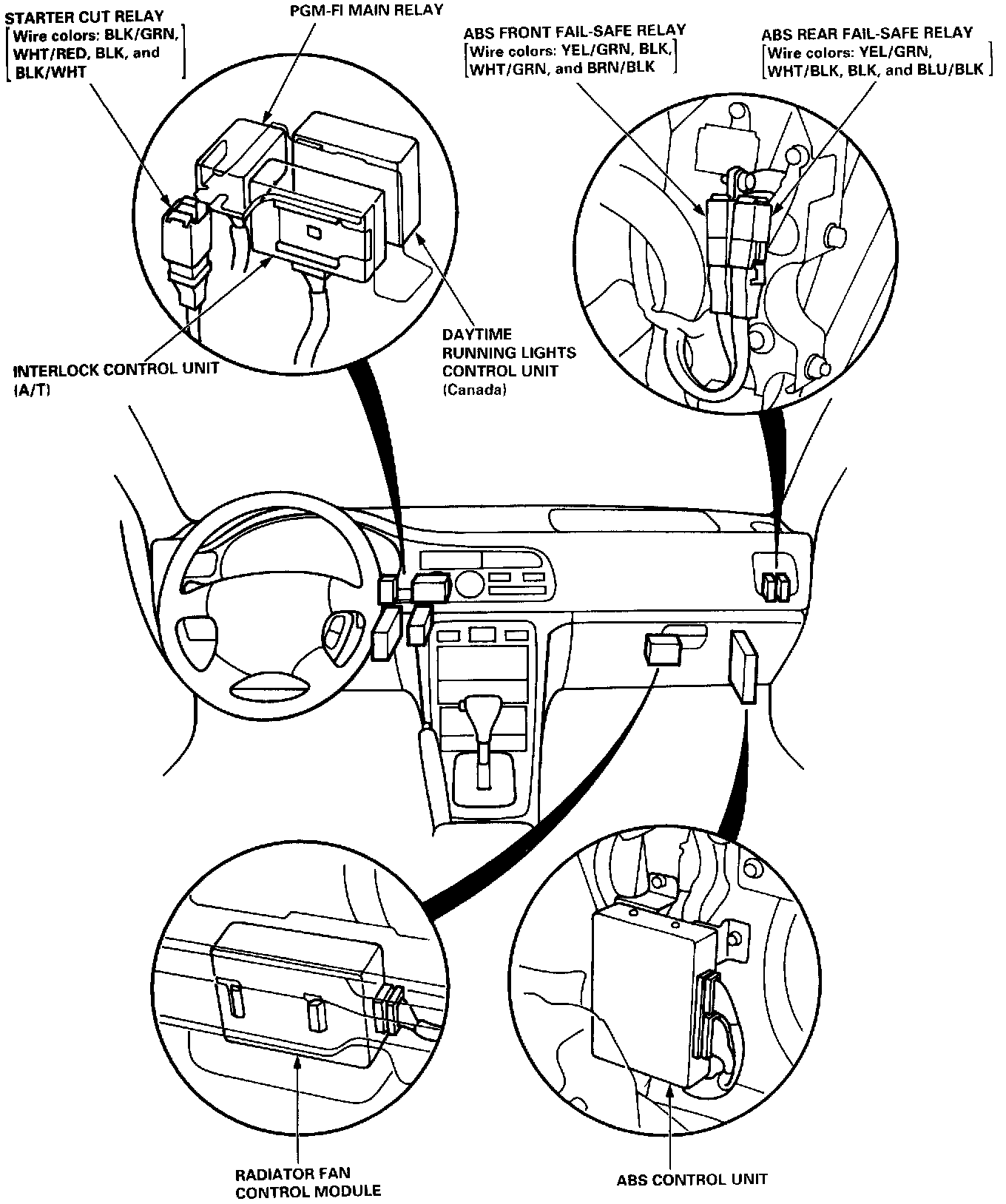

Dashboard (Part 2 Of 3):

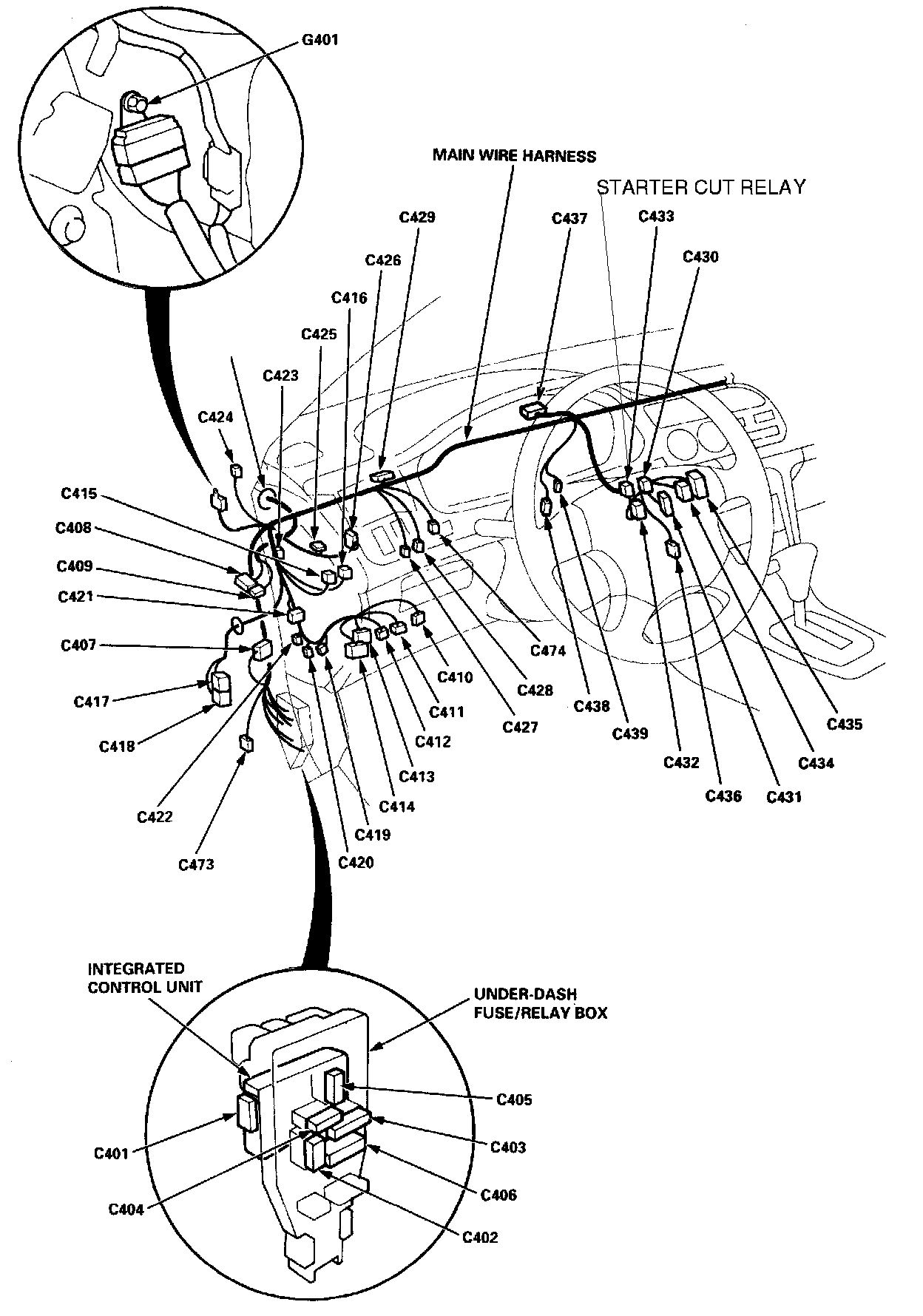

Component Location Index:

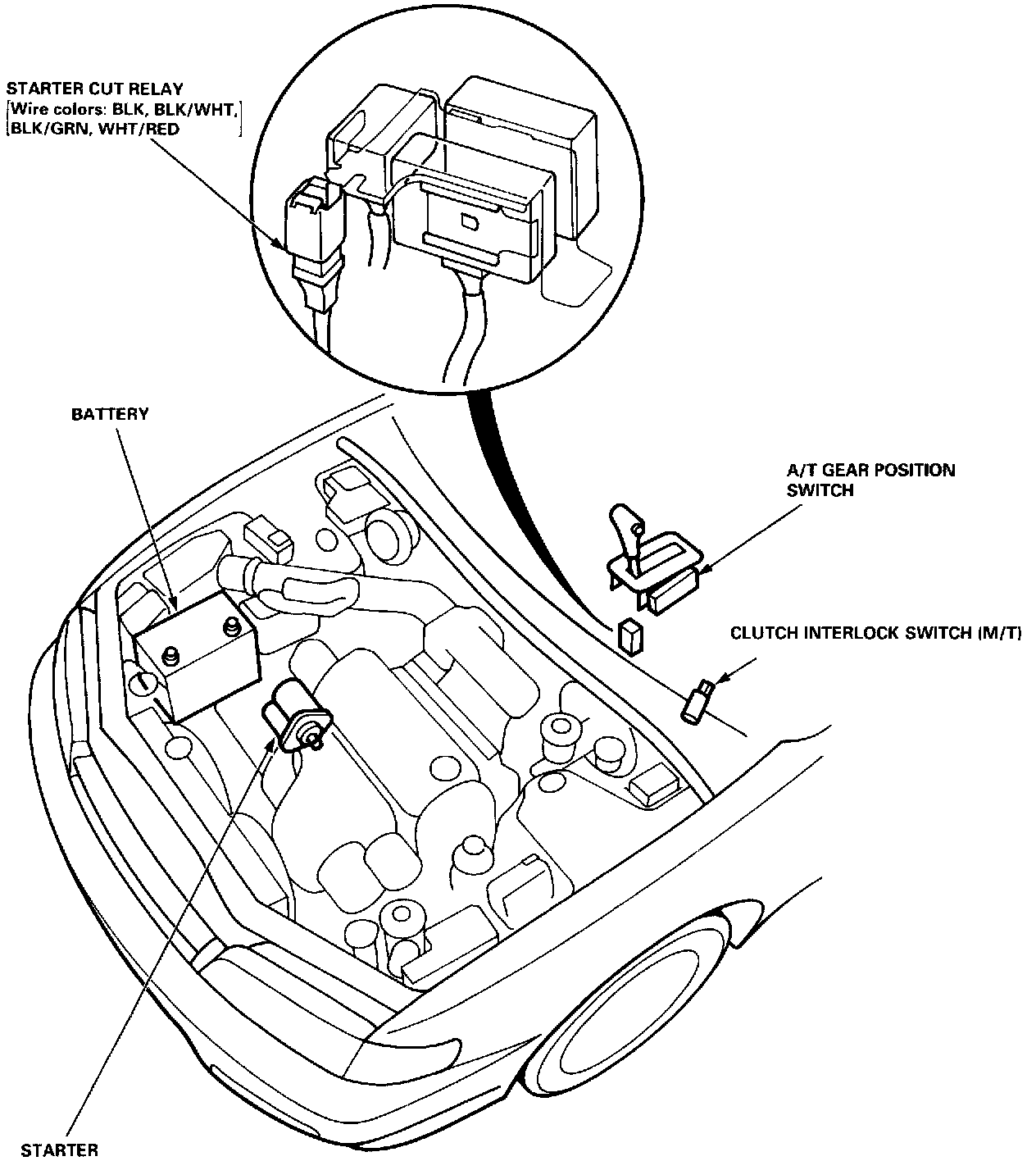

STARTER CUT RELAY,UNDER LEFT SIDE OF DASH
