Reassembly

NOTE: Refer to above figure for reassembly sequence.

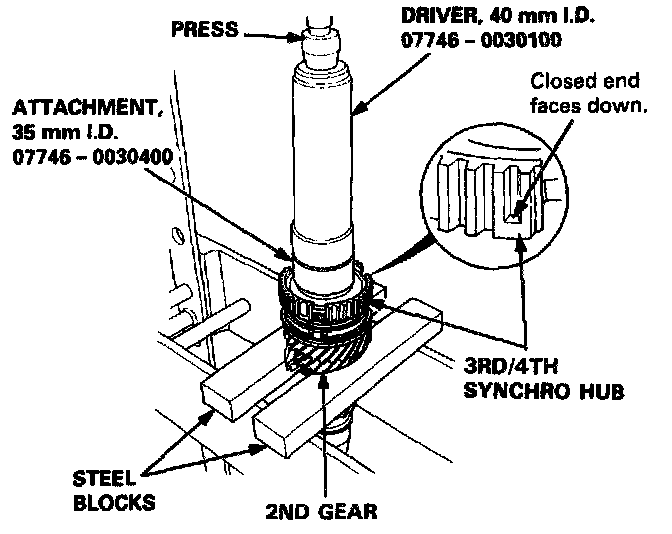

1. Support 2nd gear on steel blocks, then install the 3rd/4th synchro hub using the special tools and a press, as shown.

NOTE: After installing, check the operation of the 3rd/4th synchro hub set.

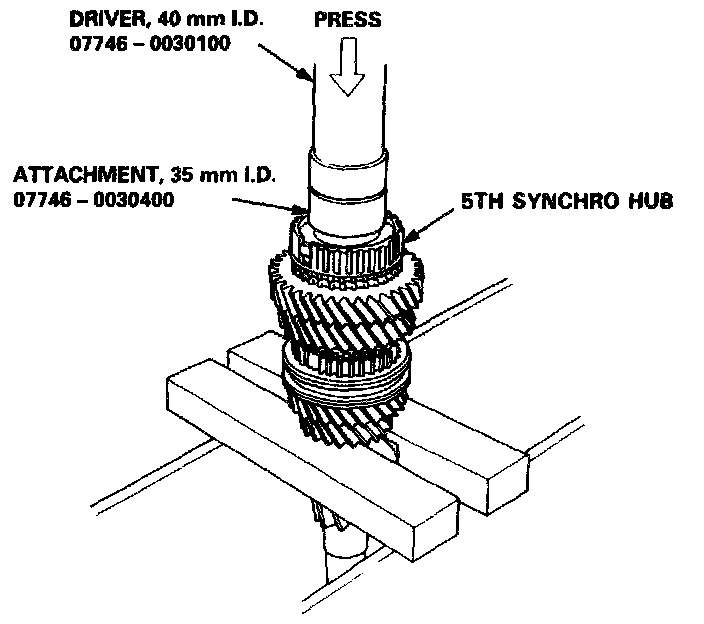

2. Install the 5th synchro hub using the special tools and a press as shown.

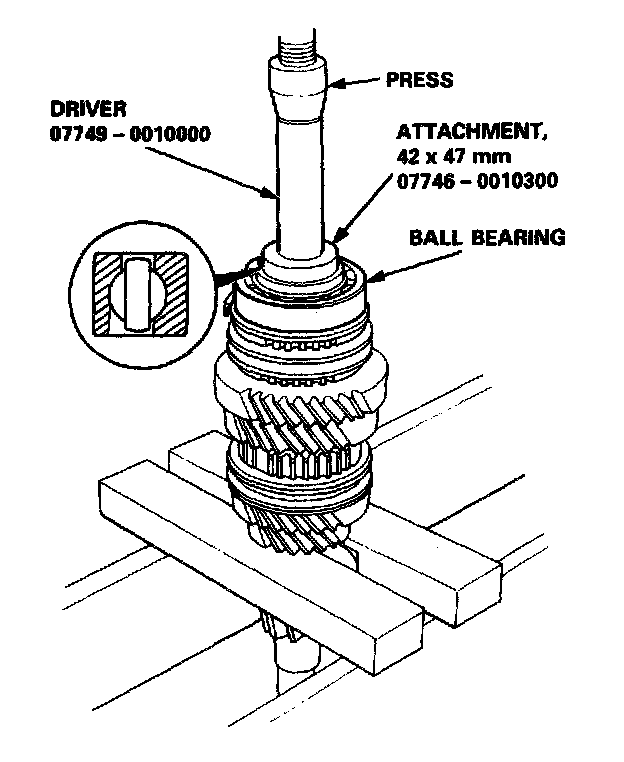

3. Install the ball bearing using the special tools and a press as shown.
