Clearance Inspection

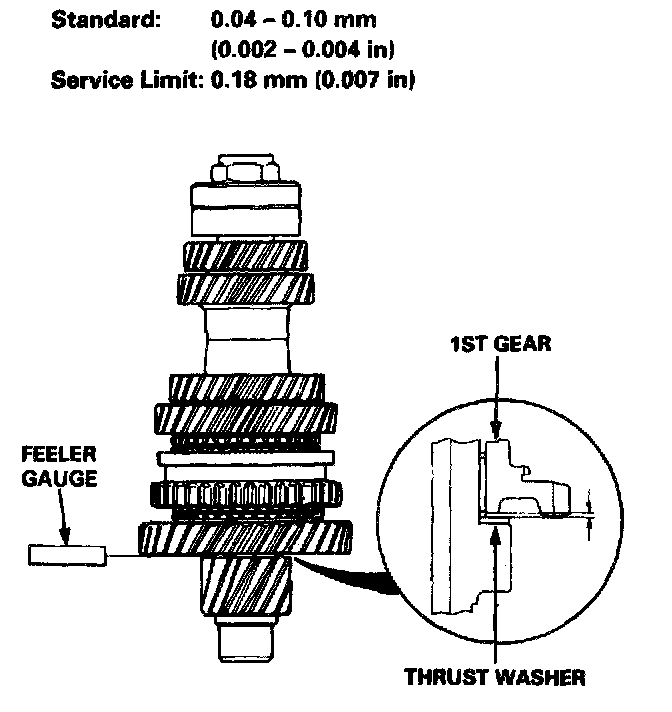

1. Measure the clearance between the 1st gear and thrust washer.

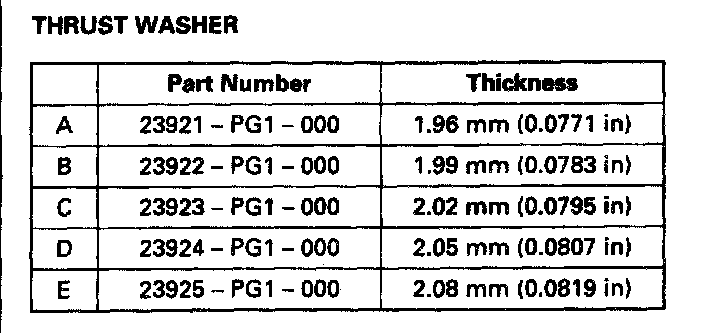

Thrust Washer:

2. If the clearance is more than the service limit, select the appropriate thrust washer for the correct clearance from the chart above, and install it.

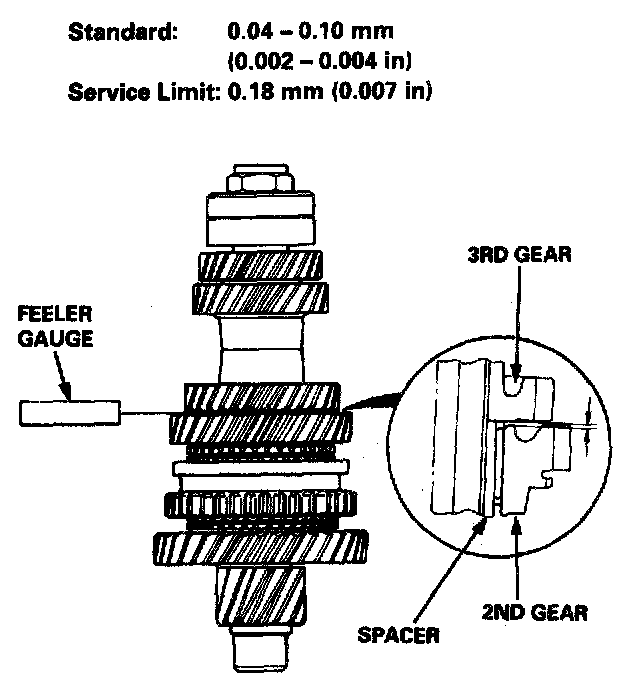

3. Measure the clearance between the 2nd gear and 3rd gear.

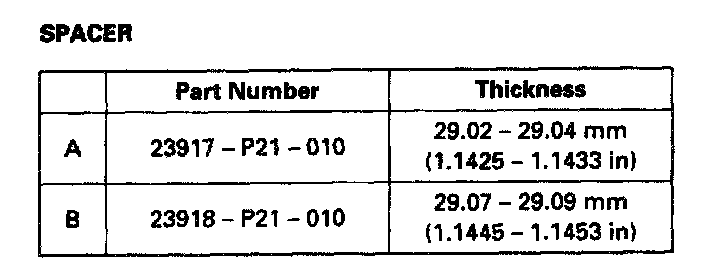

Spacer:

4. If the clearance is more than the service limit, select the appropriate spacer for the correct clearance from the chart below, and install it.
