Clutch: Adjustments

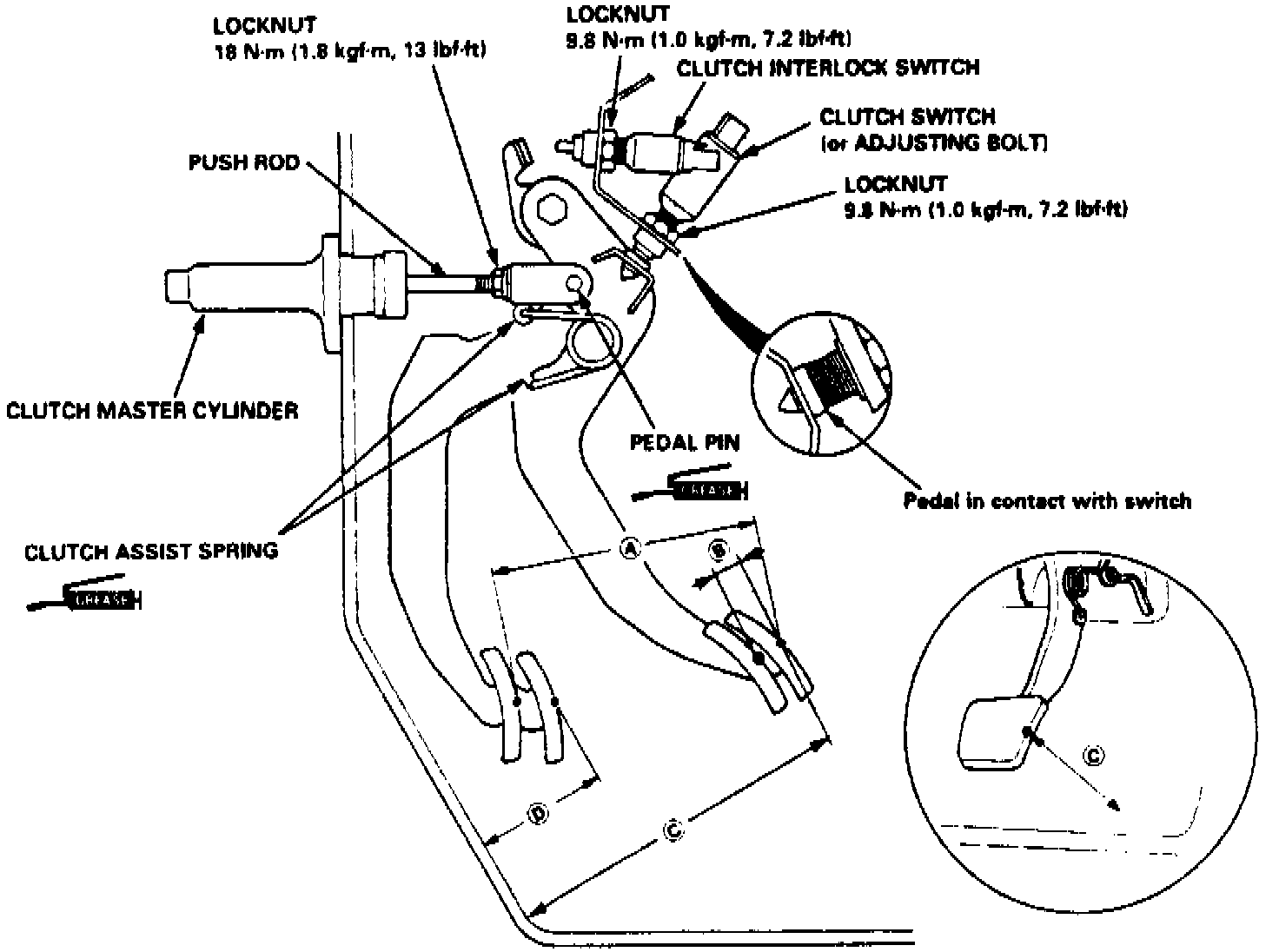

1. Loosen cruise control clutch pedal switch or adjusting bolt locknut and back switch or bolt off until it no longer touches clutch pedal, Fig. 1.
2. Loosen master cylinder pushrod locknut and turn in or out until specified clutch pedal stroke and height have been obtained, then tighten locknut.
a. Clutch Pedal Stroke: 5.31-5.71 inches
b. Clutch Pedal Free Play: 0.35-0.59 inches
c. Clutch Pedal (undepressed) to floorboard: 7.48 inches
d. Clutch Pedal (fully depressed) to floorboard: 3.70 inches
3. Turn clutch pedal switch or adjusting bolt in until it contacts pedal.
4. Turn another 1/4-1/2 turn further and tighten locknut.
5. Loosen clutch interlock switch locknut and measure clearance between floor board and clutch pedal with clutch pedal fully depressed.
6. Release clutch pedal 0.59-0.79 inch from fully depressed position and hold.
7. Adjust clutch interlock switch so engine will start with clutch pedal in this position.
8. Turn another 1/4-1/2 turn further and tighten locknut.
