Required Special Tools and Equipment

Bulletin No.
89-004

Issue Date
MAY 6, 1996

Model
ALL

Applicable To
ALL

Required Special Tools and Equipment
(Supersedes 89-004, dated August 1, 1994)

In accordance with the Automobile Sales and Service Agreement, Section 3.9, your service department is required to have, at a minimum, the tools and equipment listed in this bulletin.

When a new model is introduced and requires special tools, those tools will be shipped to you automatically. If you receive a required special tool and believe you have an equivalent, refer to RETURN OF PARTS MANUALS, REQUIRED TOOLS AND SERVICE MANUALS FOR AUTOMOBILE DEALERS in the HOW TO RETURN PARTS AND ACCESSORIES TO AMERICAN HONDA section of your PARTS SYSTEM GUIDE.

REQUIRED SERVICE MANUALS

Dealers are required to have a copy of each Service Manual, Troubleshooting Manual and Body Repair Manual listed in Service Bulletin 90-007, Automobile Service Publications and Supplies.

REQUIRED SPECIAL TOOLS

These tools are available from American Honda. Use the check column to identify the tools you already have. NOTE: All tools are in single quantity units unless noted in italics under the Description heading.

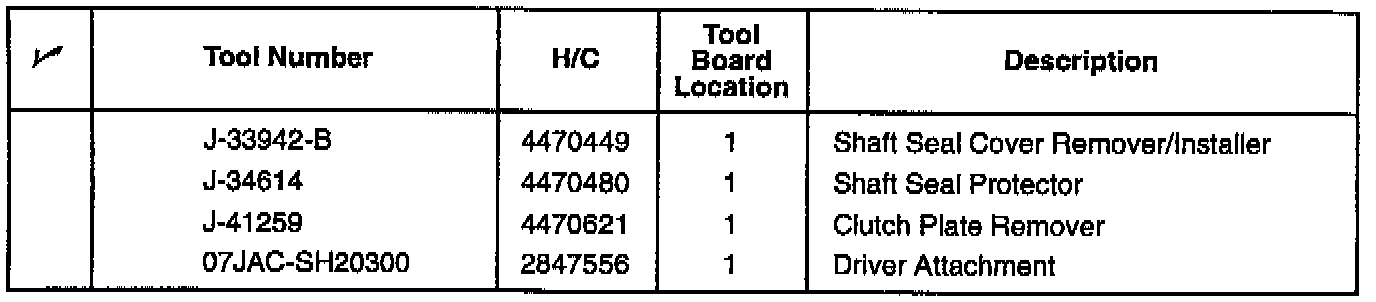

Air Conditioning Tools

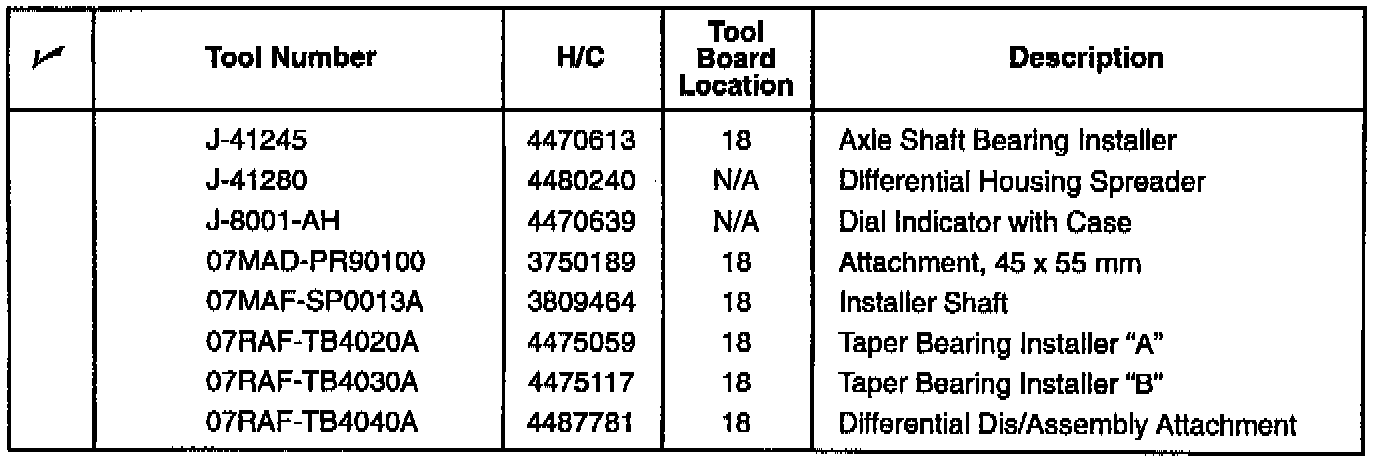

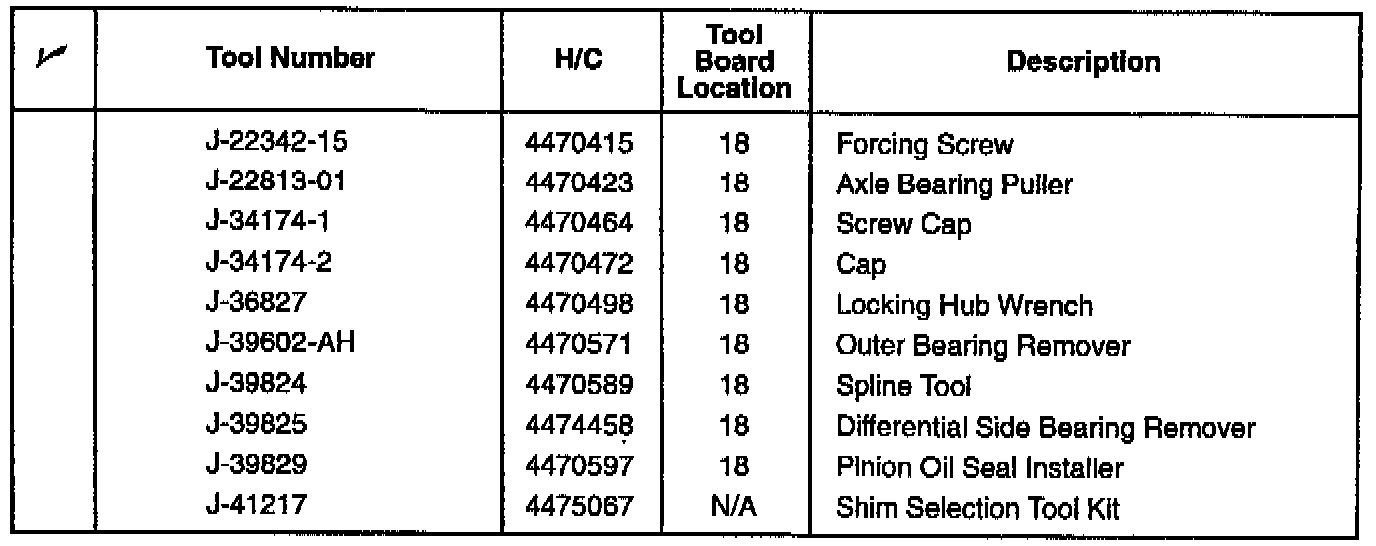

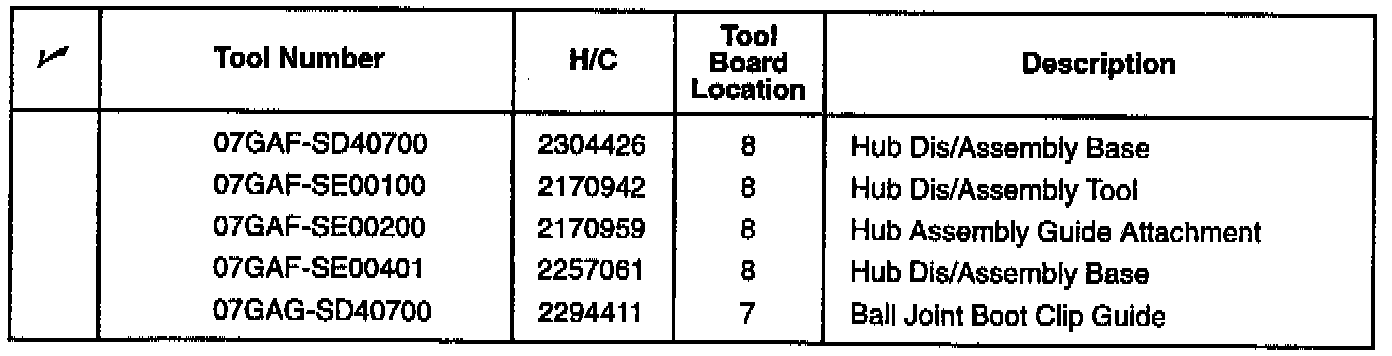

Axle/Differential Tools

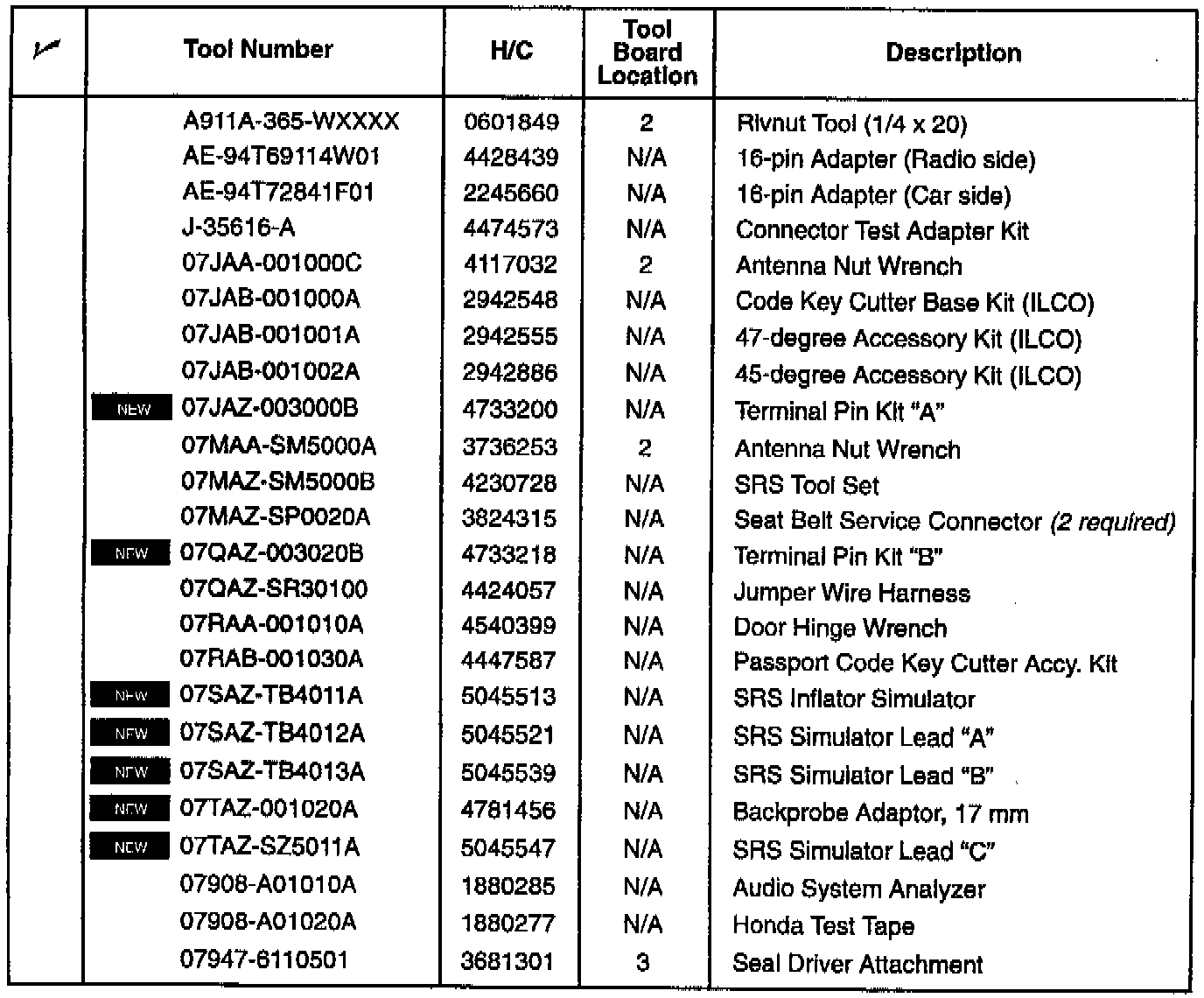

Body Tools

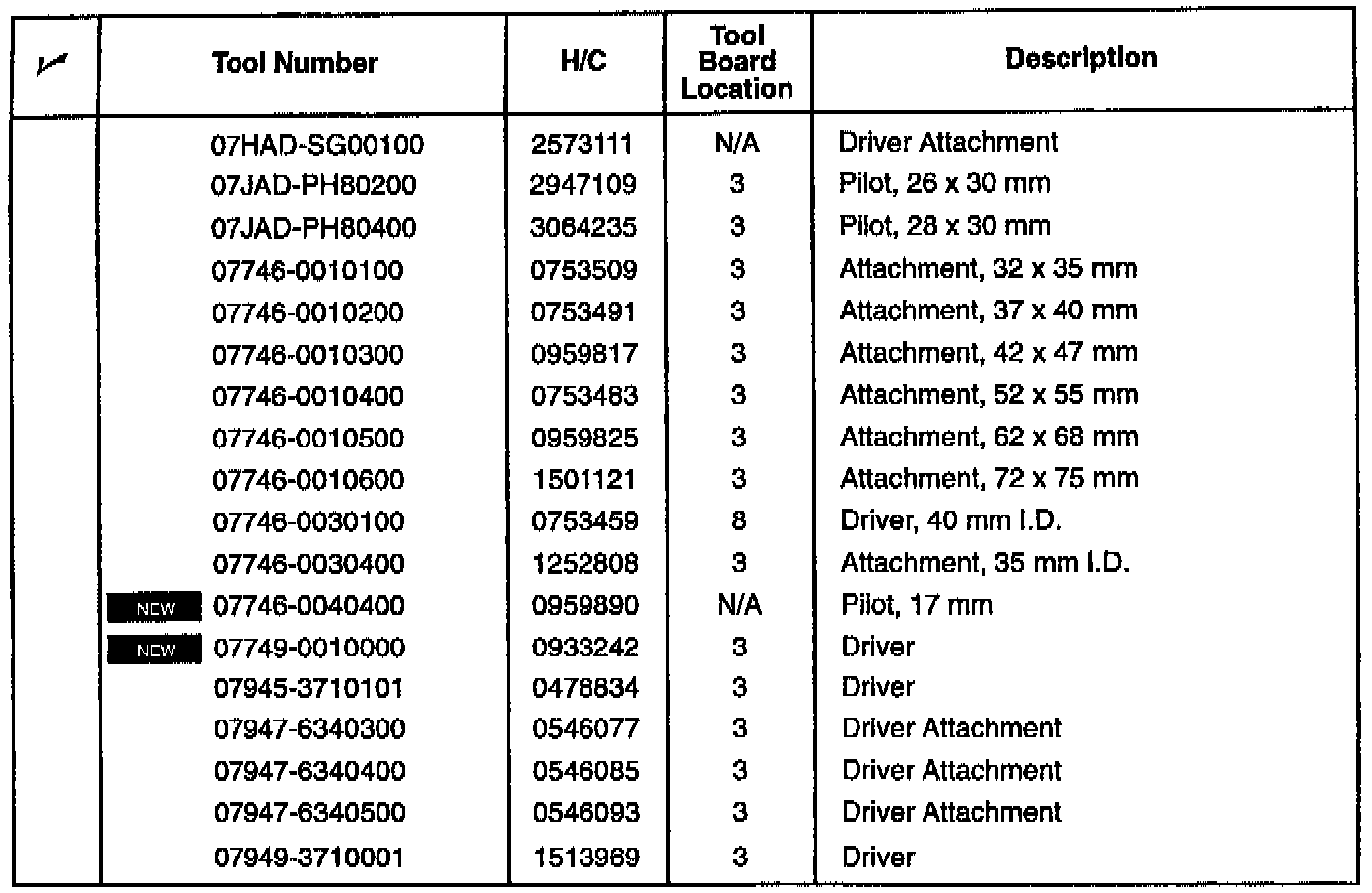

Common Bearing/Seal Drivers

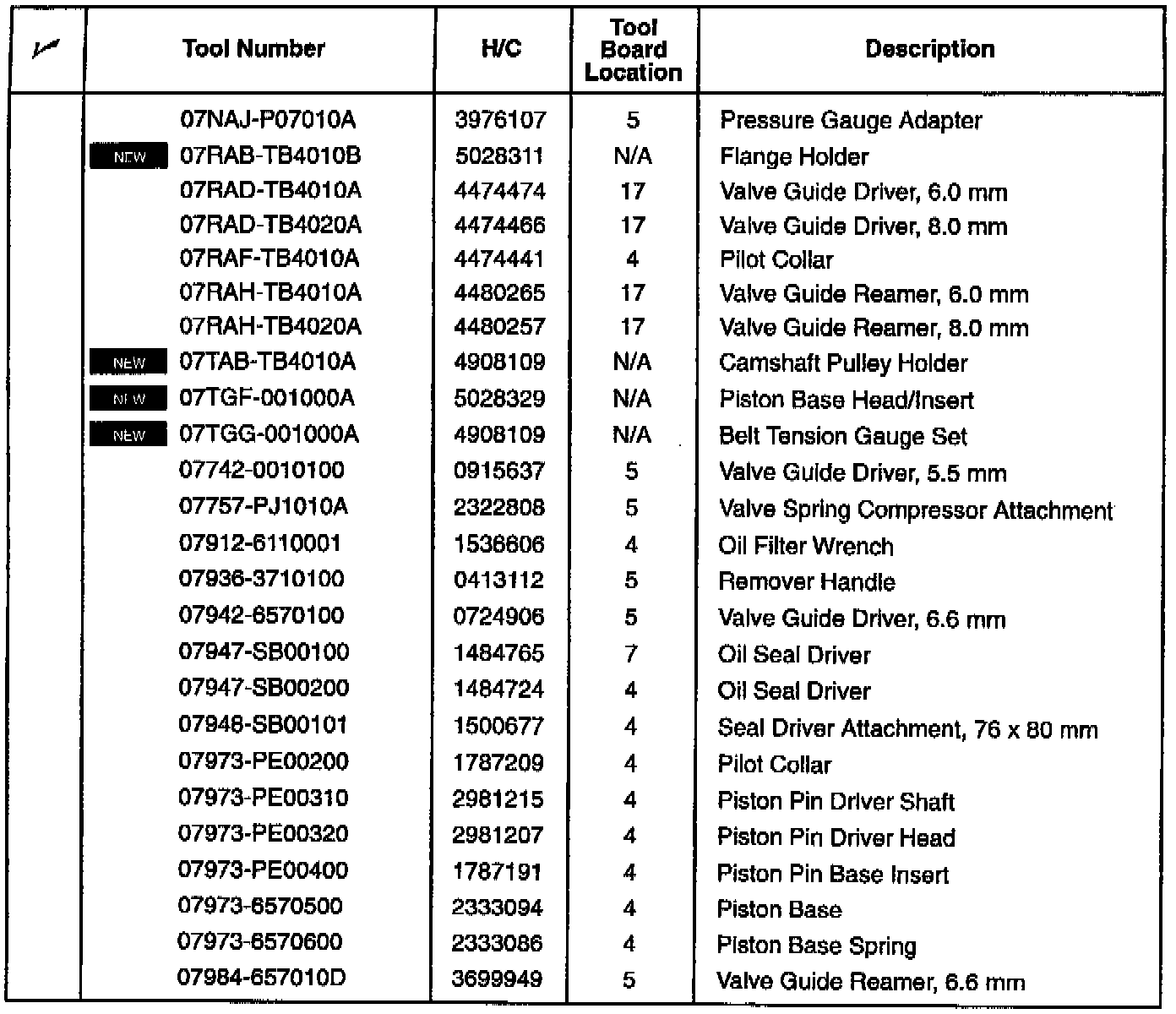

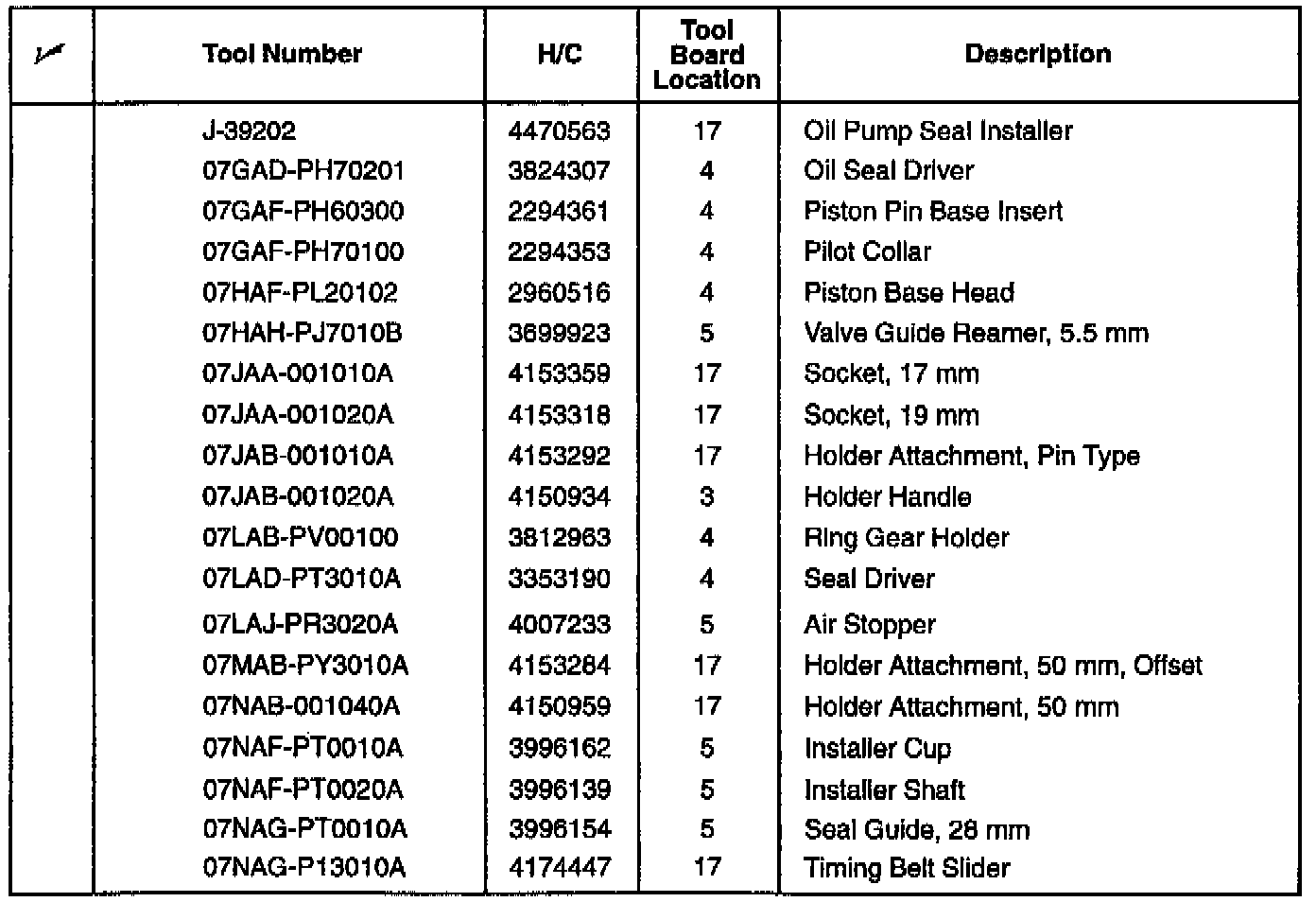

Engine Tools

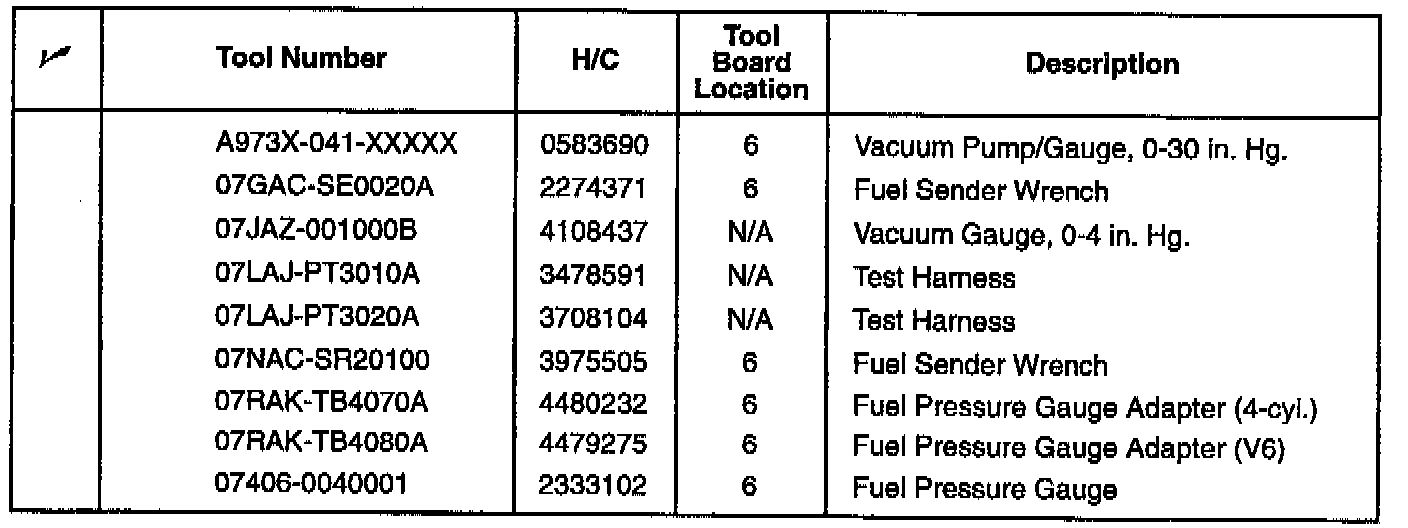

Fuel/Emission Tools

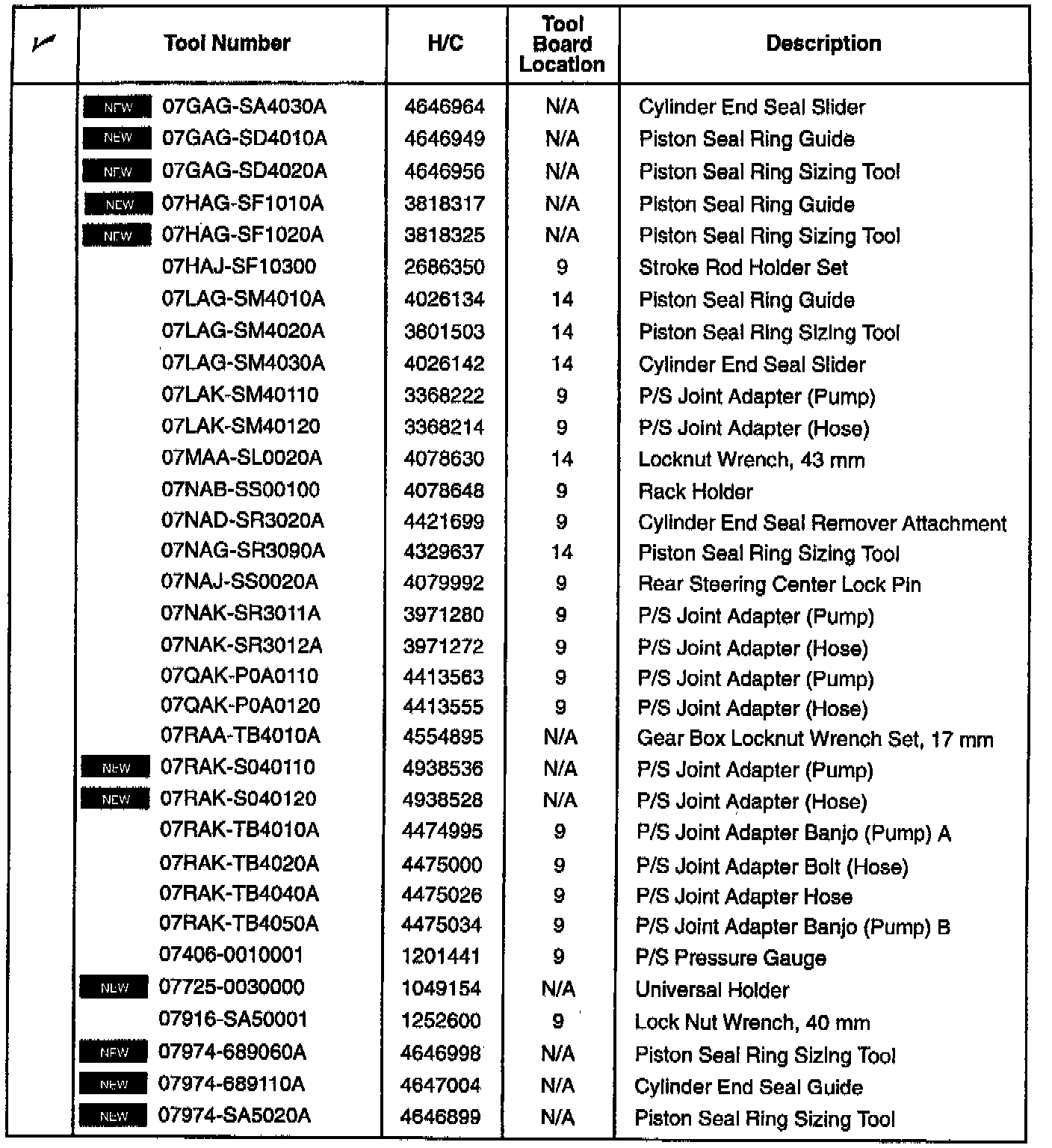

Steering Tools

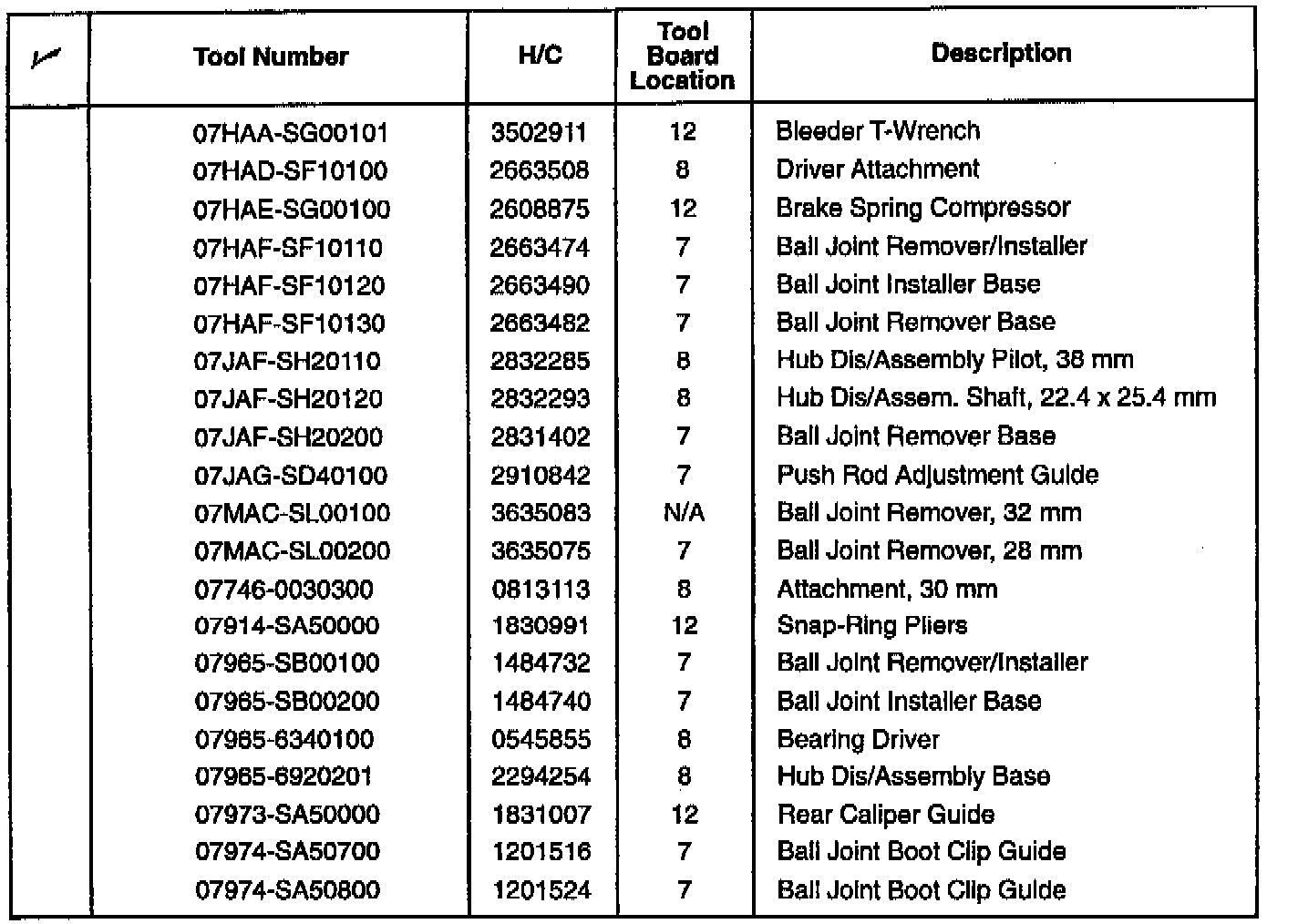

Suspension/Brake Tools

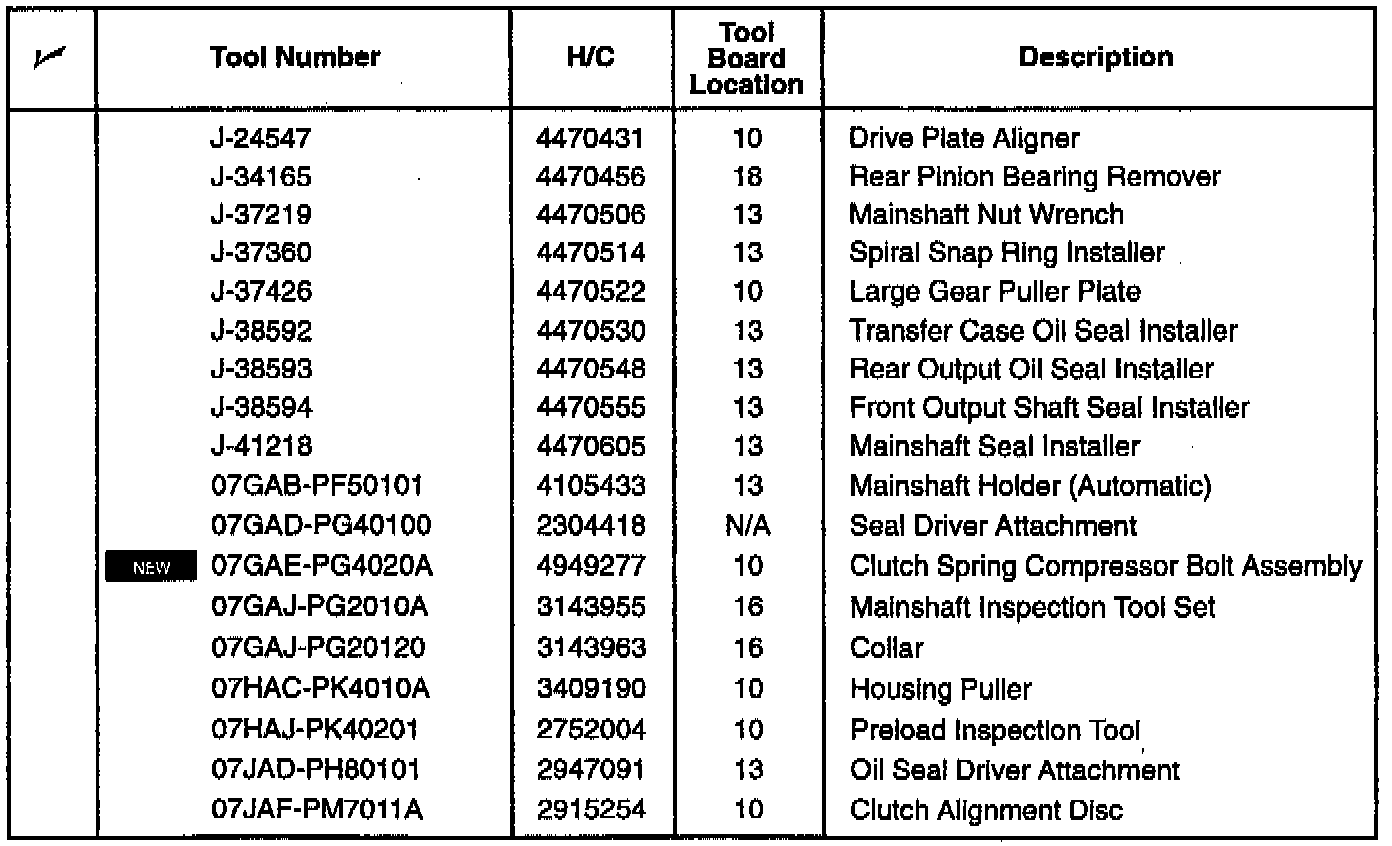

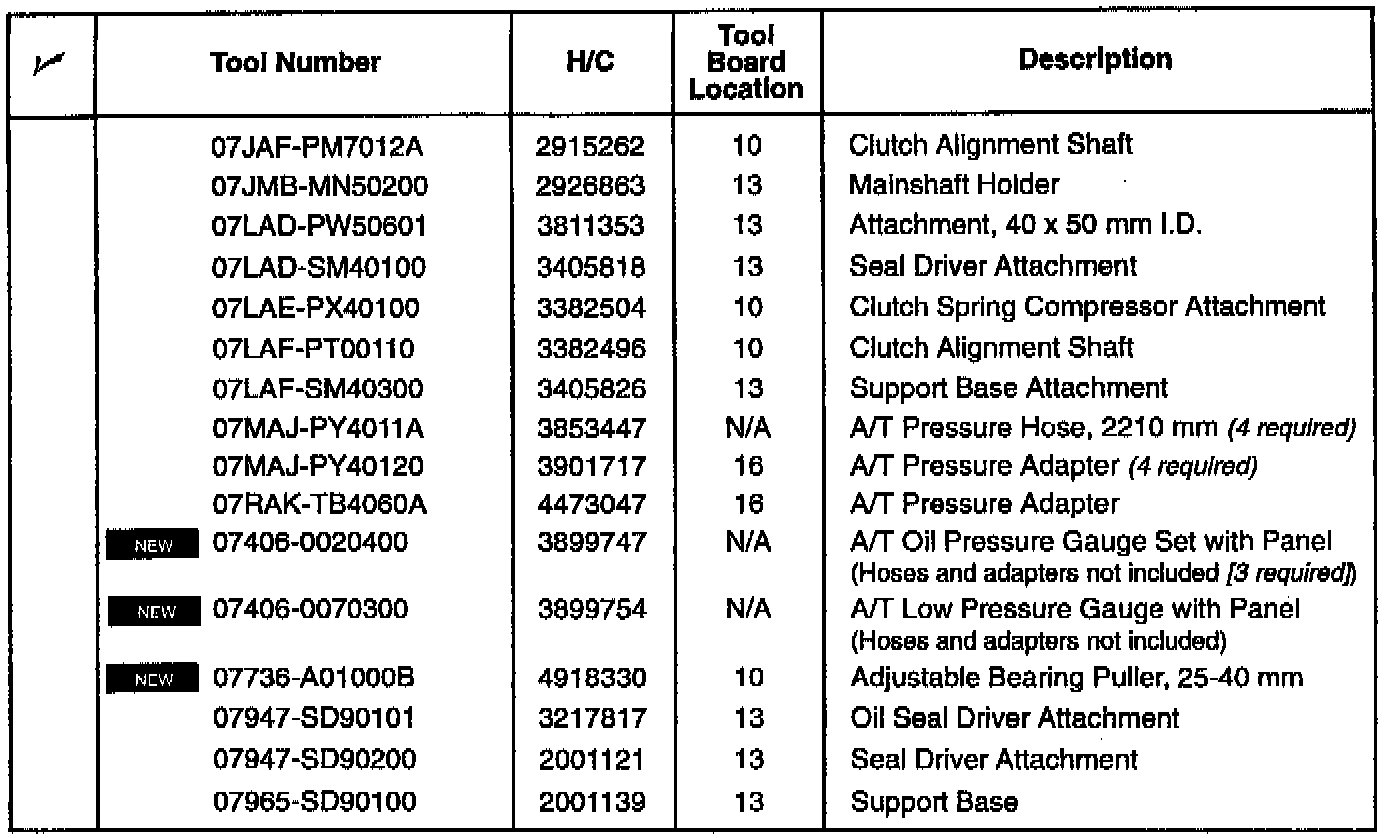

Transmission/Clutch Tools

ESSENTIAL SERVICE TOOLS AND EQUIPMENT

The following items need to be purchased from an outside source; however, items marked with an asterisk (*) can be purchased from AHM. For current pricing on those items, contact Special Tools at (800) 346-6327.

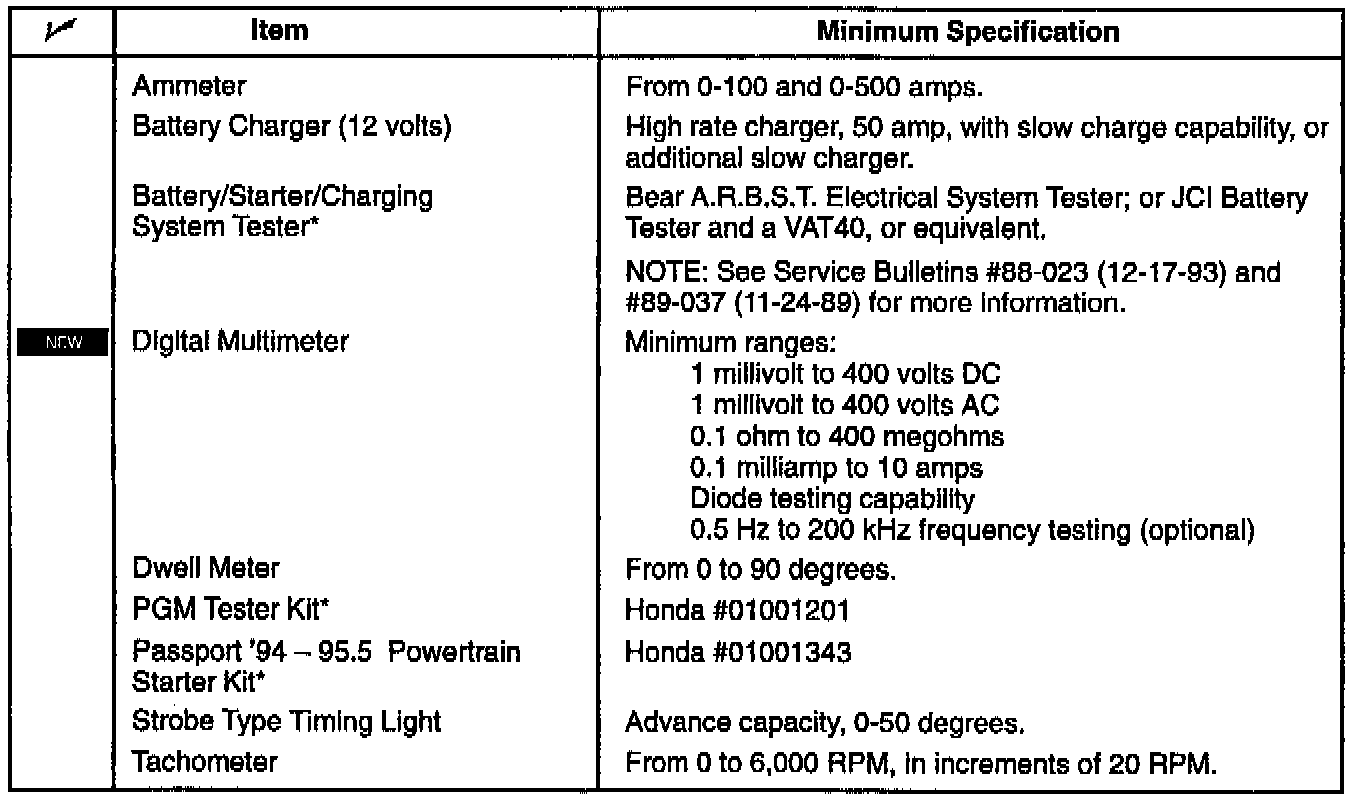

Diagnostic/Electrical Test Equipment

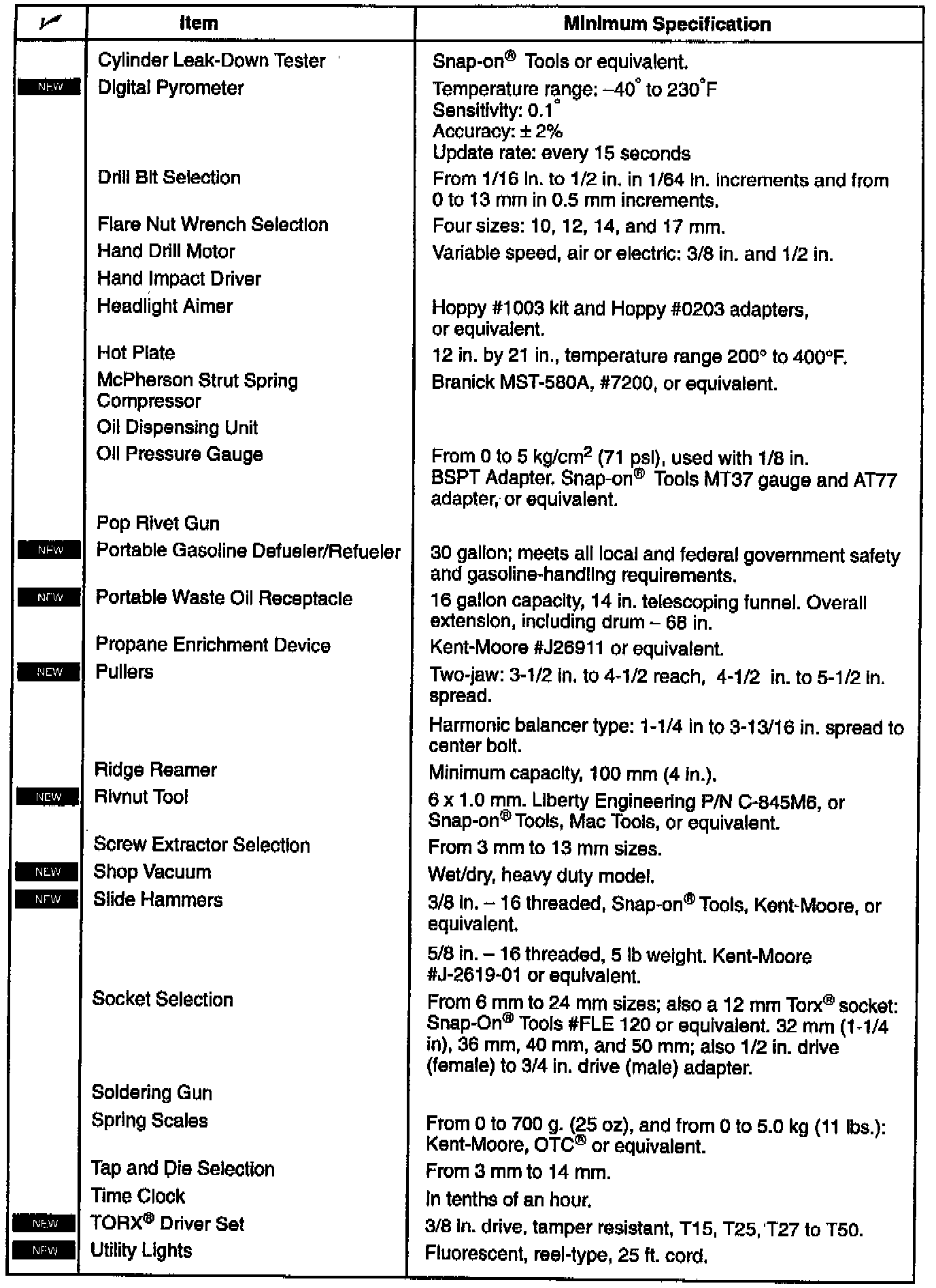

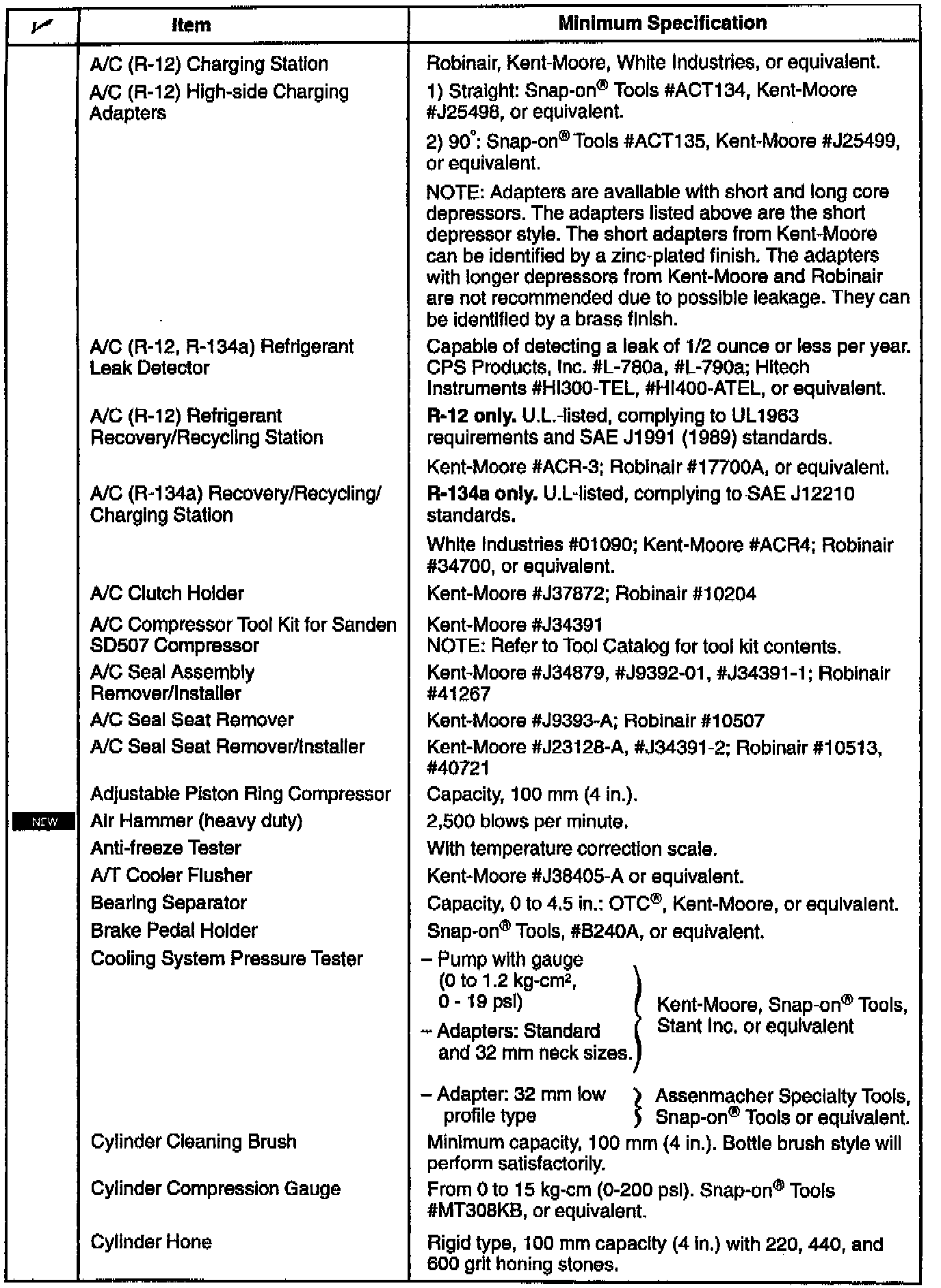

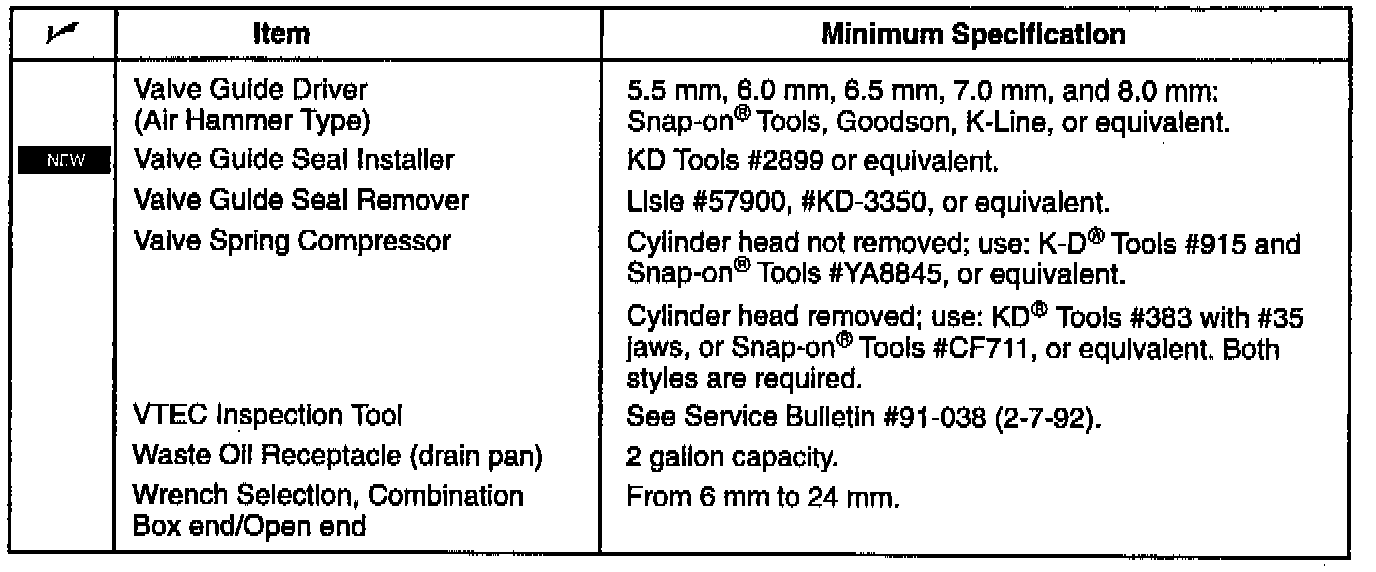

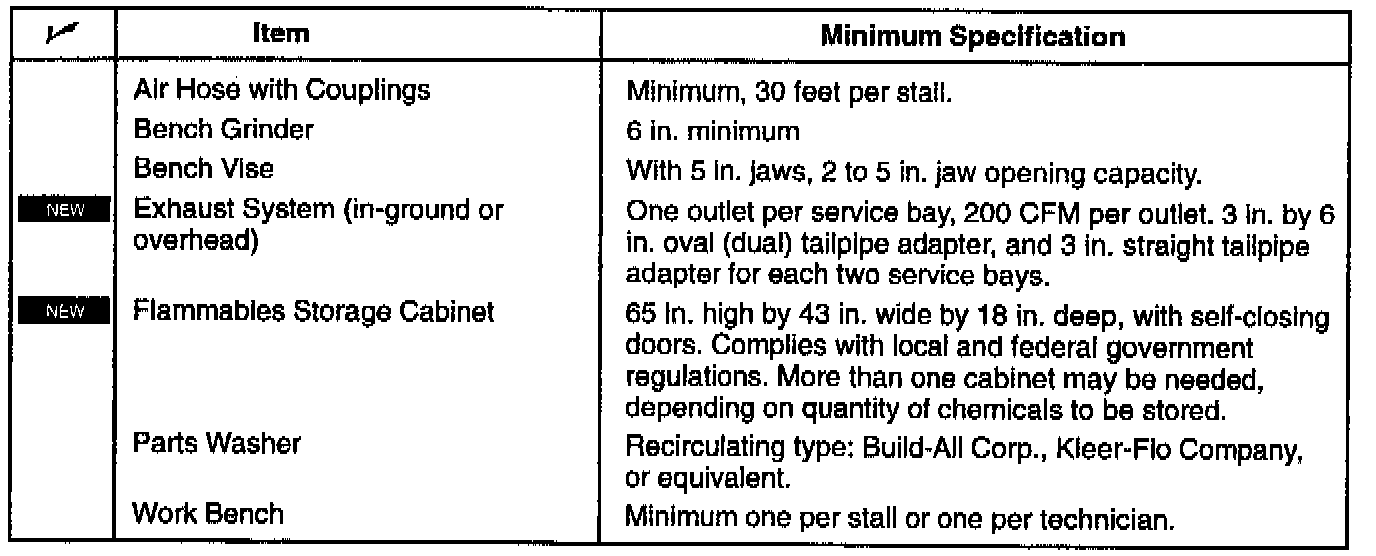

General Shop Equipment

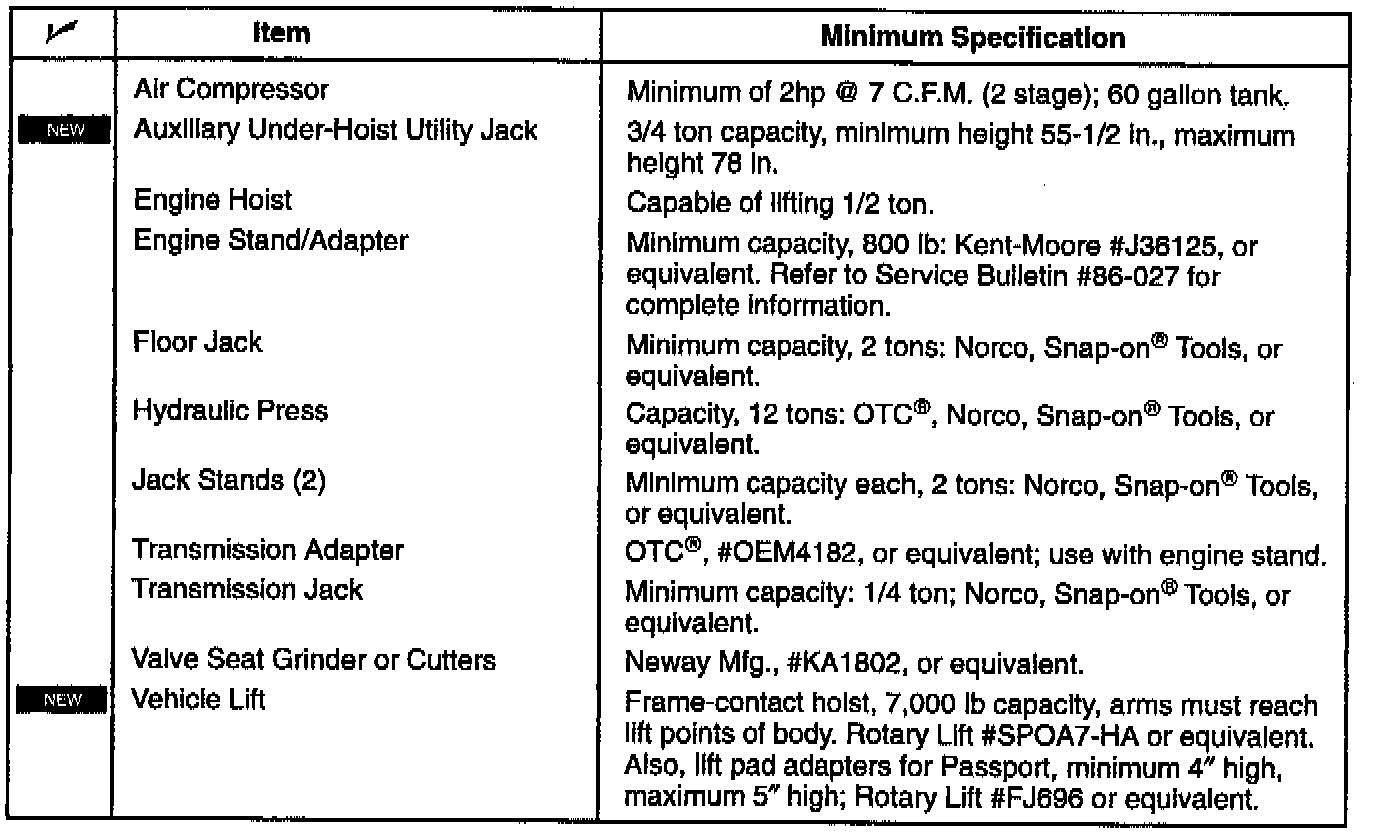

Heavy Shop Equipment

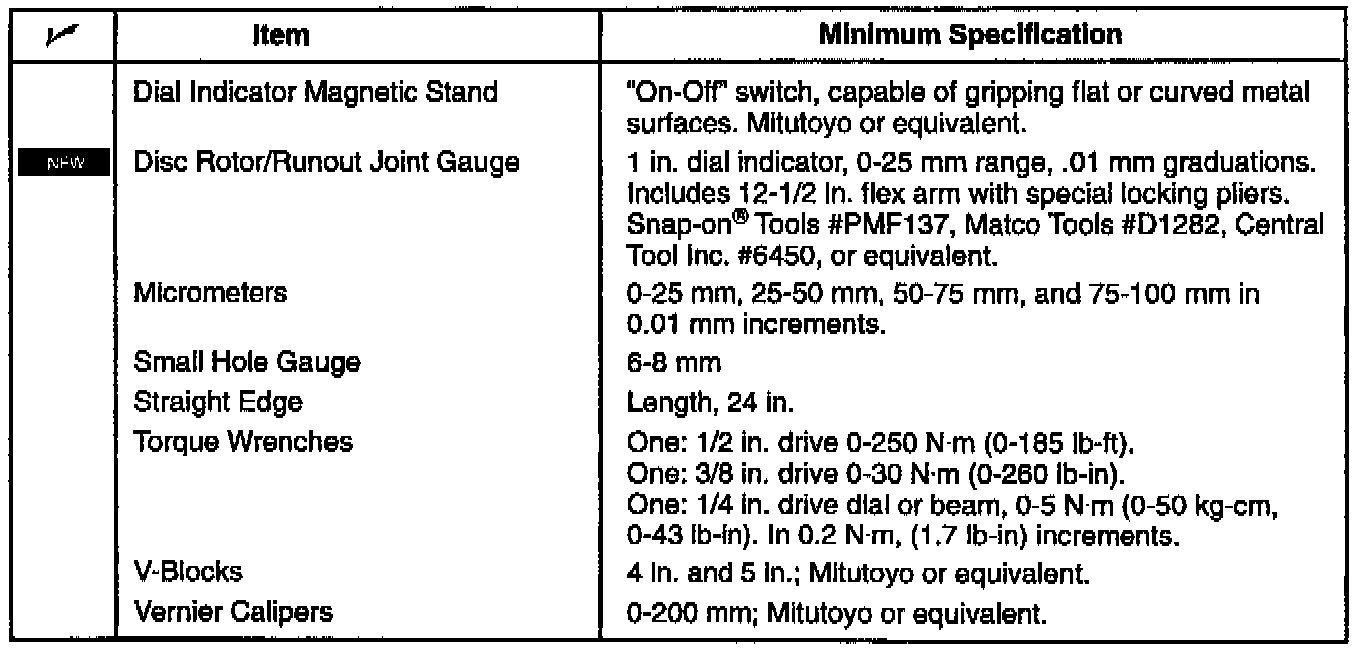

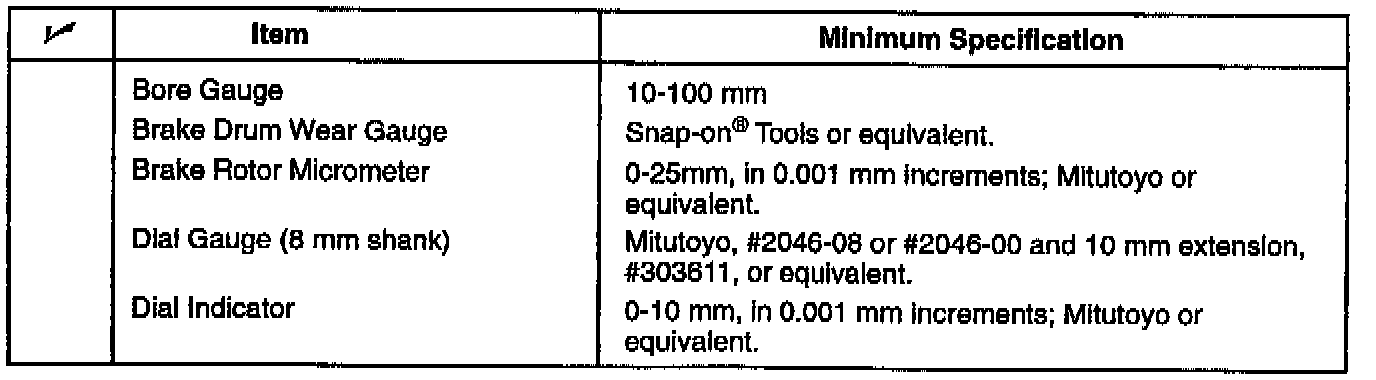

Precision Instruments

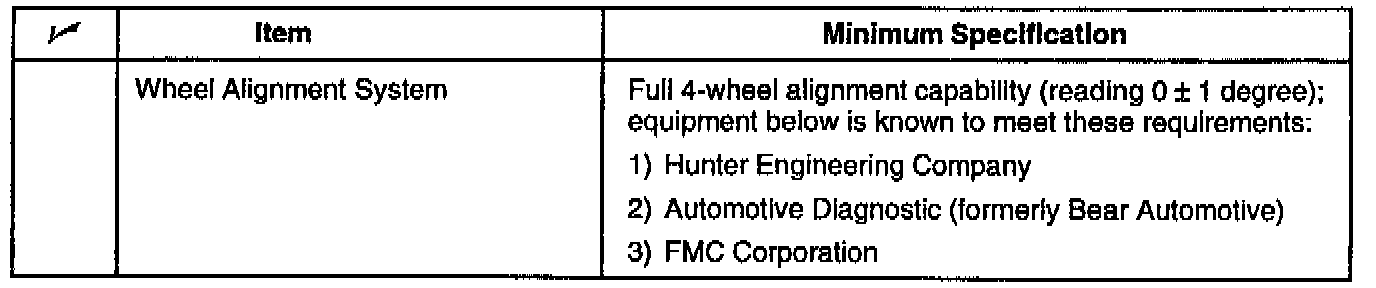

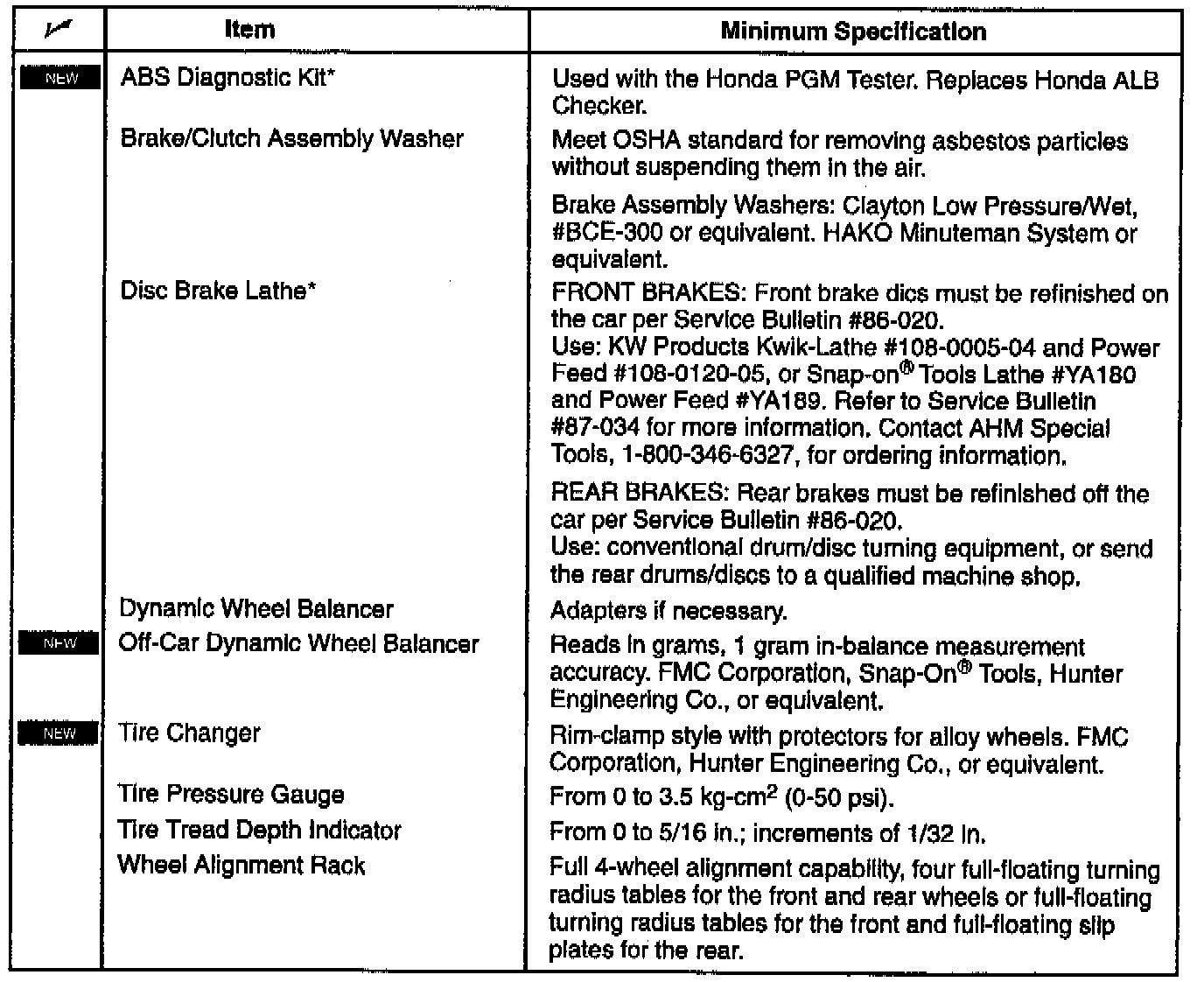

Wheel Service/Alignment Equipment





Work Stall Equipment

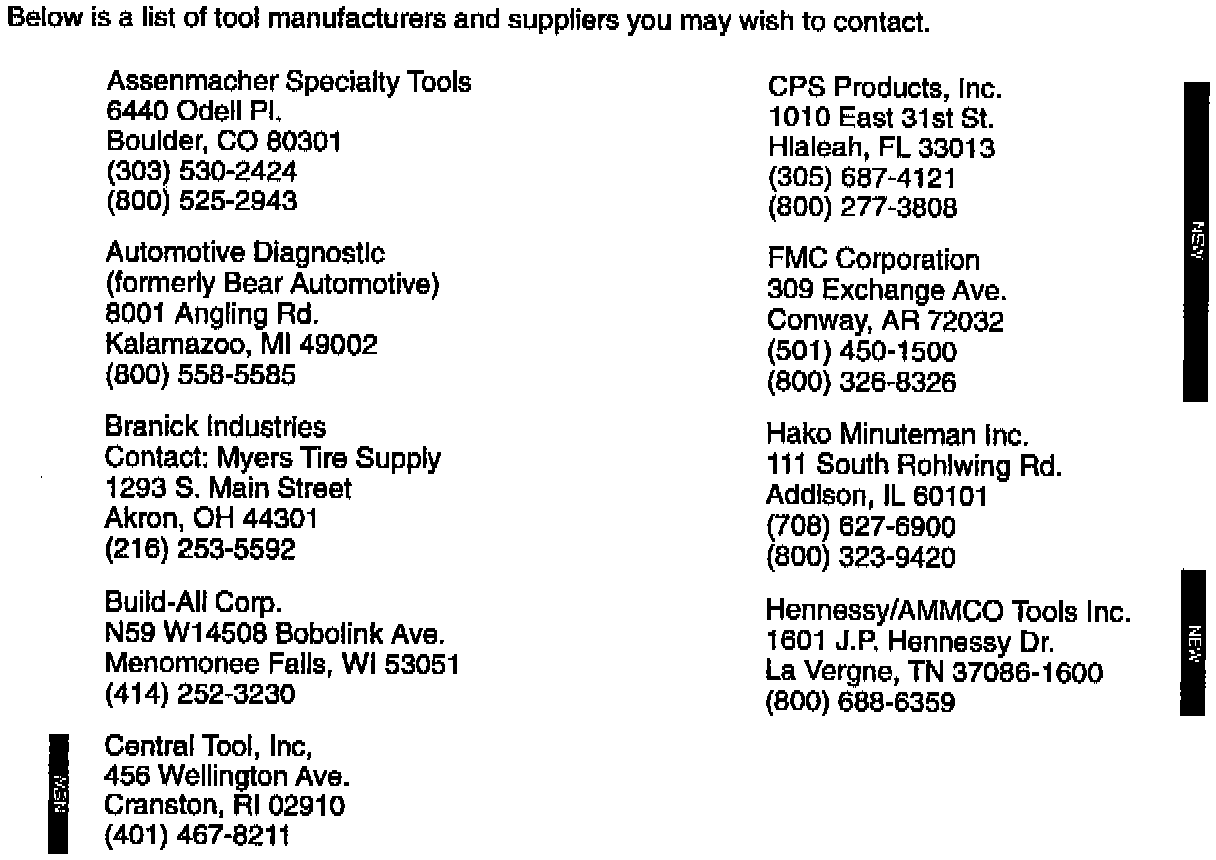

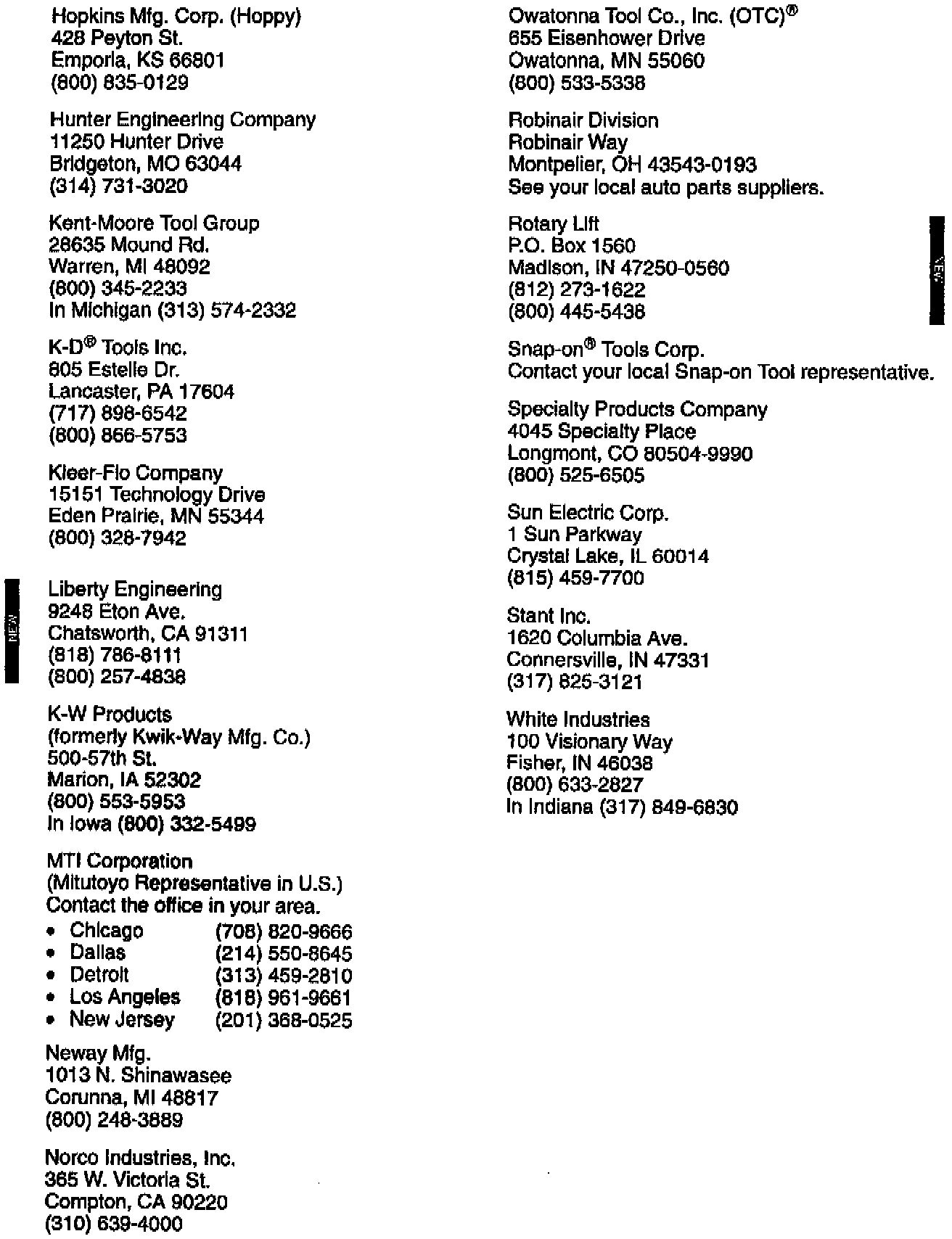

TOOL AND EQUIPMENT SOURCES

The products, manufacturers, and suppliers referred to in this Service Bulletin are brought to the dealer's attention solely for the dealer's own information and investigation. American Honda disclaims any responsibility concerning these products. The information supplied is based on the manufacturer's representations.
