Trailing Arm: Service and Repair

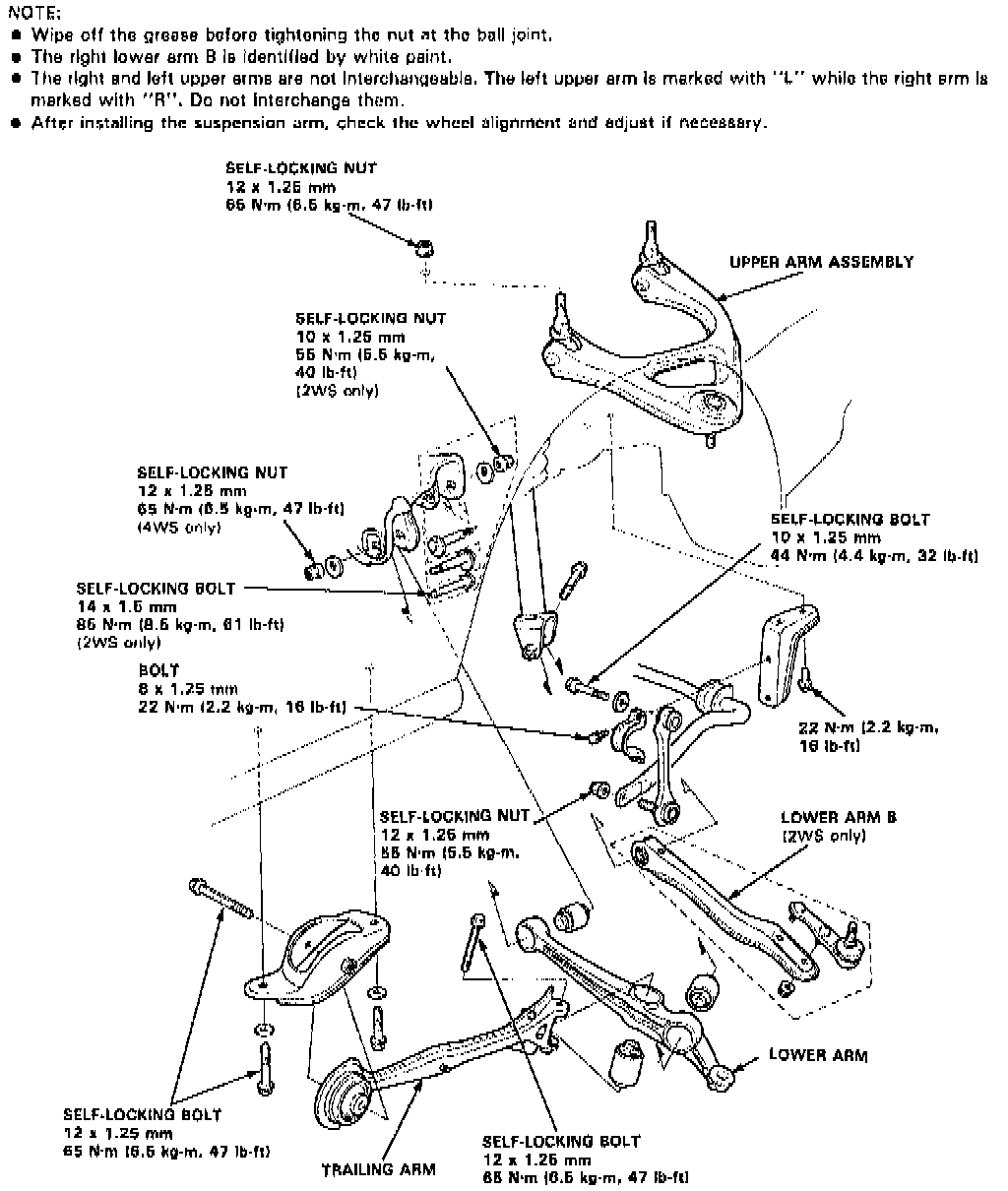

Fig. 11 Exploded View Of Rear Suspension:





Refer to Fig. 11 when replacing trailing arm.
