Tie Rod Boot: Service and Repair

Tie-rod End Boot Replacement




1. Remove the boot.

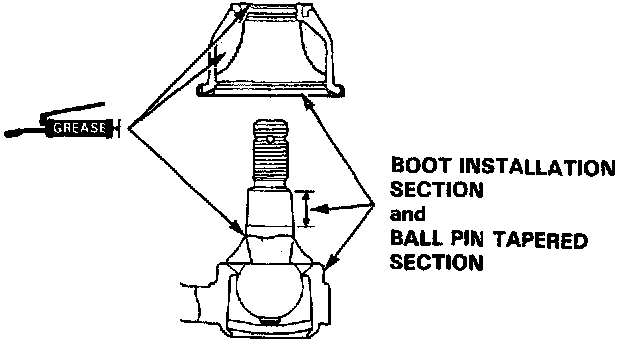

2. Pack the interior of the boot and lip with grease.
3. Wipe the grease off the sliding surface of the ball pin, then pack the lower area with fresh grease.

CAUTION:
^ Keep grease off the boot installation section and the tapered section of the ball pin.
^ Do not allow dust, dirt, or other foreign materials to enter the boot.

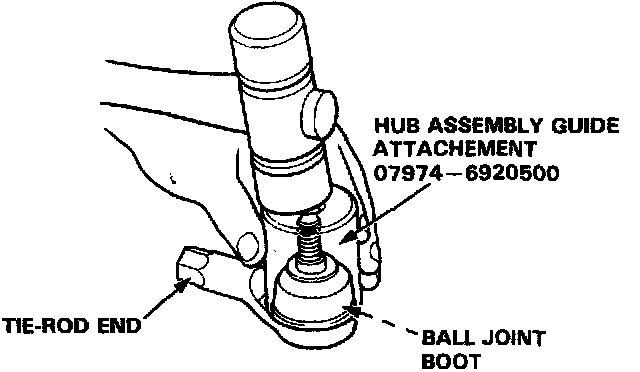

4. Install the new ball joint boot using a special tool as shown below.

NOTE: After driving the boot onto the ball joint, apply sealant between the tie-rod end and boot.

CAUTION: After installing the boot, check the ball pin tapered section for grease contamination and wipe it if necessary.
