Tachometer Connector: Locations

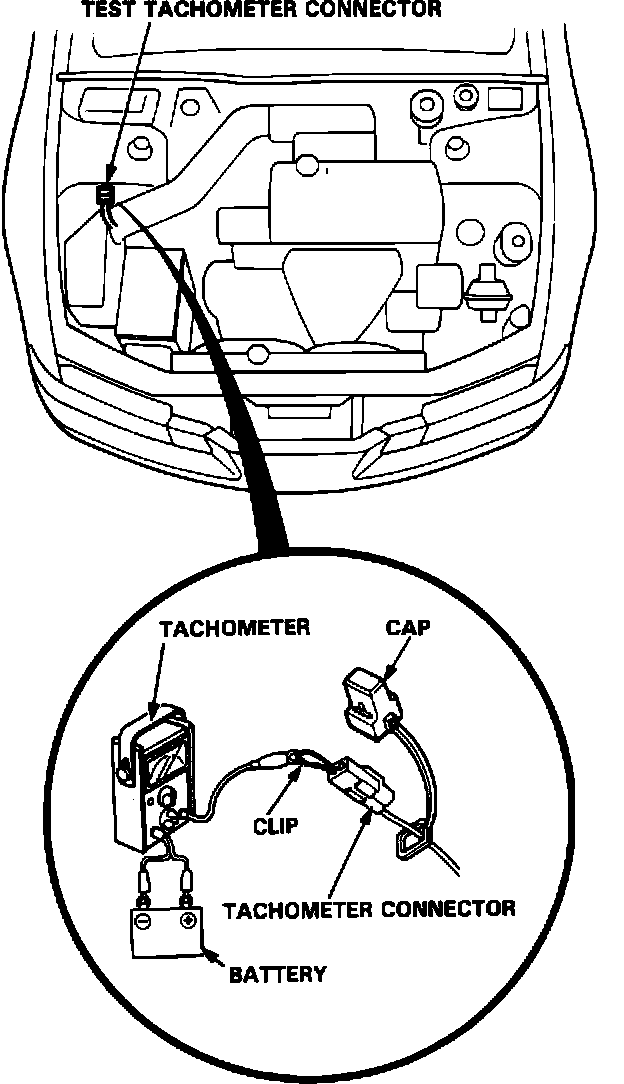

Tachometer Test Connector:





The Test Tachometer Connector is Located in front of the right strut tower.
