Resonator Control Actuator: Testing and Inspection

INSPECTION

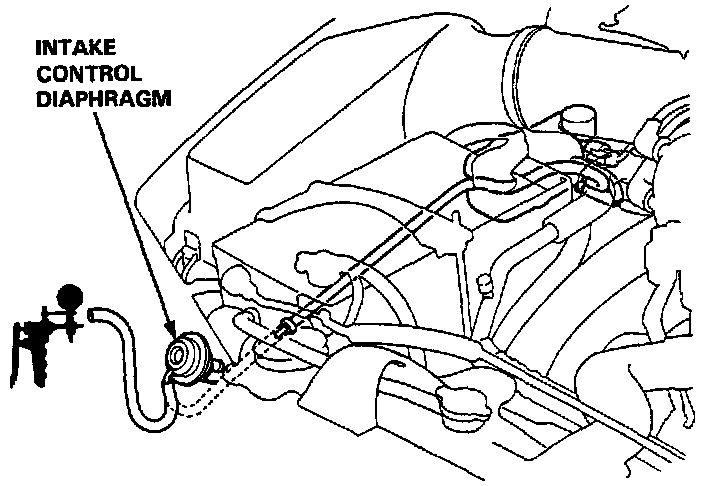

Applying Vacuum At Intake Control Diaphragm.:

1. Remove vacuum hose from top of Intake Control Diaphragm.
2. Apply vacuum to port at top of Intake Control Diaphragm.
3. If Intake Control Diaphragm does not hold vacuum, replace Intake Control Diaphragm
