Resonator Control Actuator: Locations

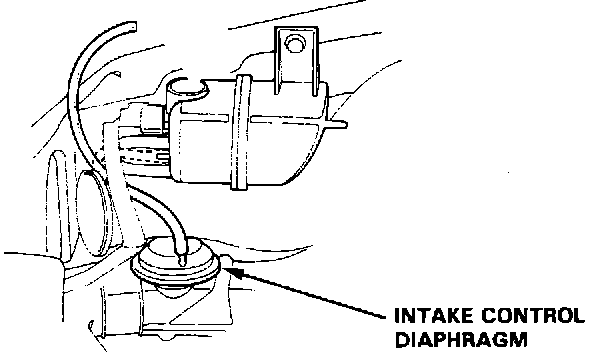

Intake Control Diaphragm:
The Intake Control Diaphragm is located at the front lower edge of the air cleaner assembly.
