Variable Valve Timing Solenoid: Testing and Inspection

INSPECTION

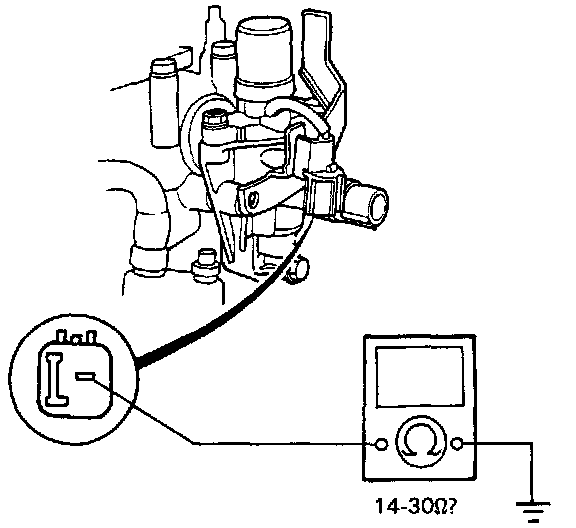

VTEC Solenoid Valve Connector Terminal Identification.:

1. Turn ignition switch off.
2. Disconnect the one pin connector at the VTEC Solenoid Valve.
3. Measure continuity between the valve connector terminal and chassis ground. Resistance should read 14 - 30 ohms. If not, replace VTEC Solenoid Valve.
