Malfunction Indicator Light (MIL) Remains ON After 2 Seconds

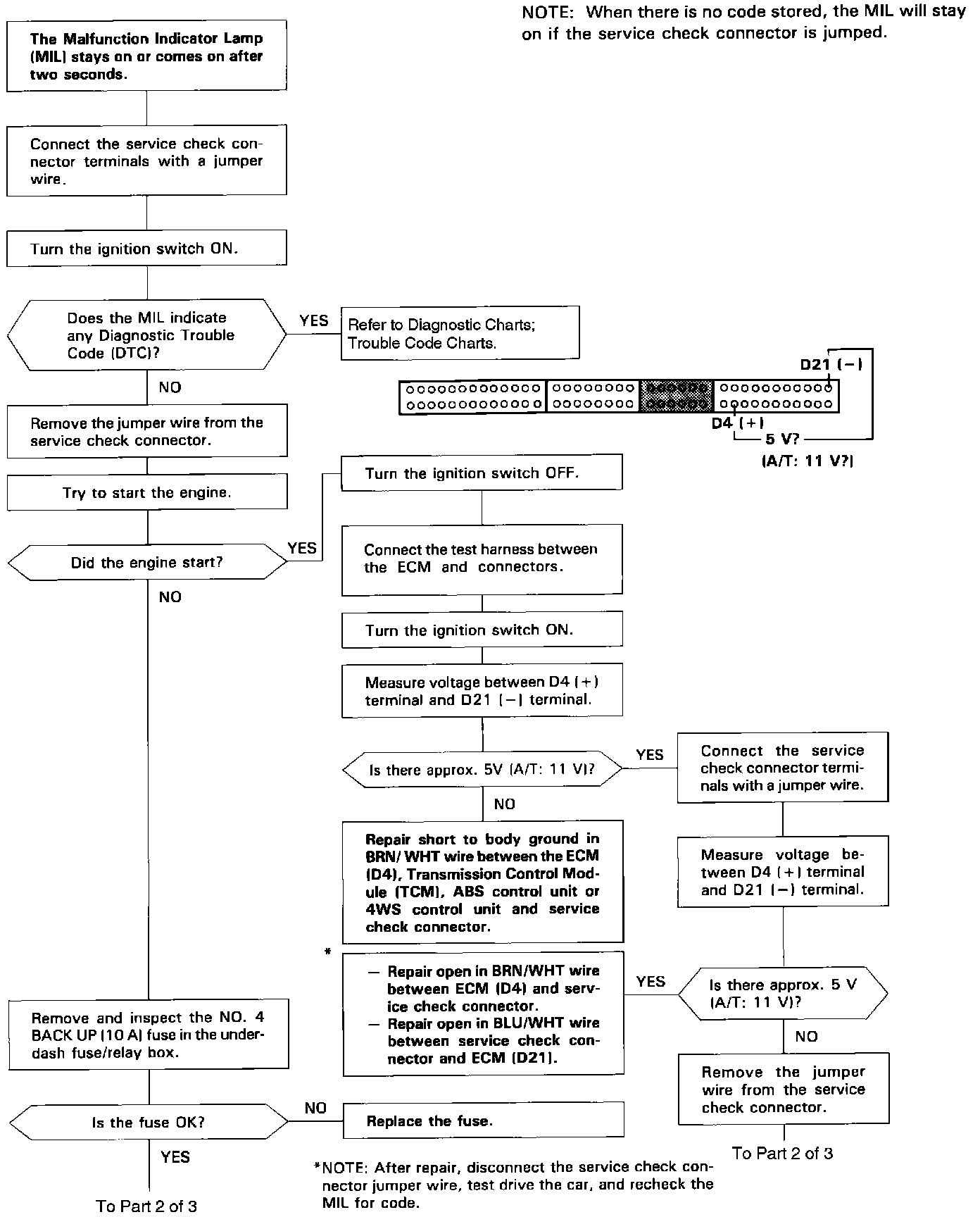

Malfunction Indicator Lamp (MIL) Remains On After 2 Seconds (Part 1 Of 3):

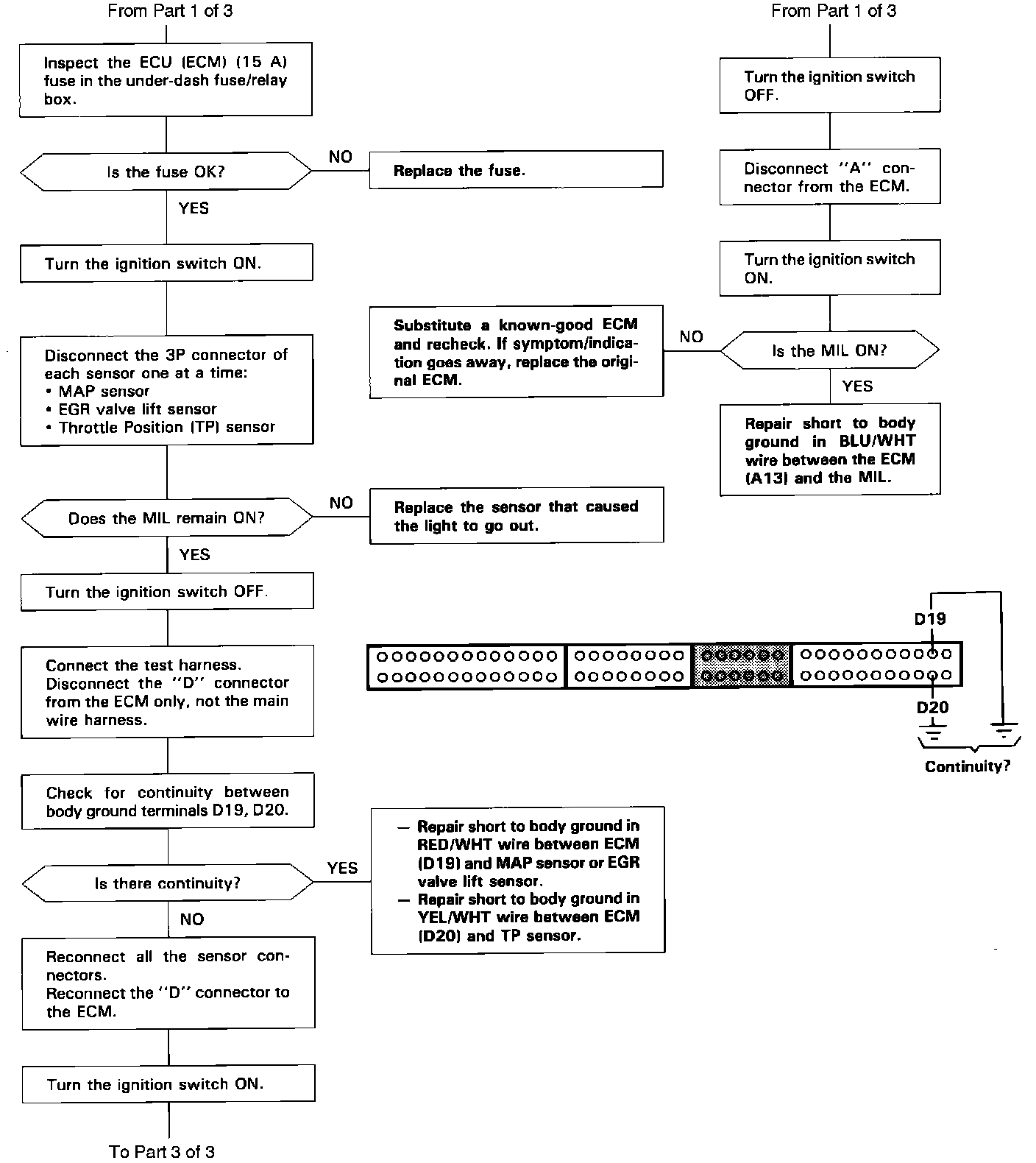

Malfunction Indicator Lamp (MIL) Remains On After 2 Seconds (Part 2 Of 3):

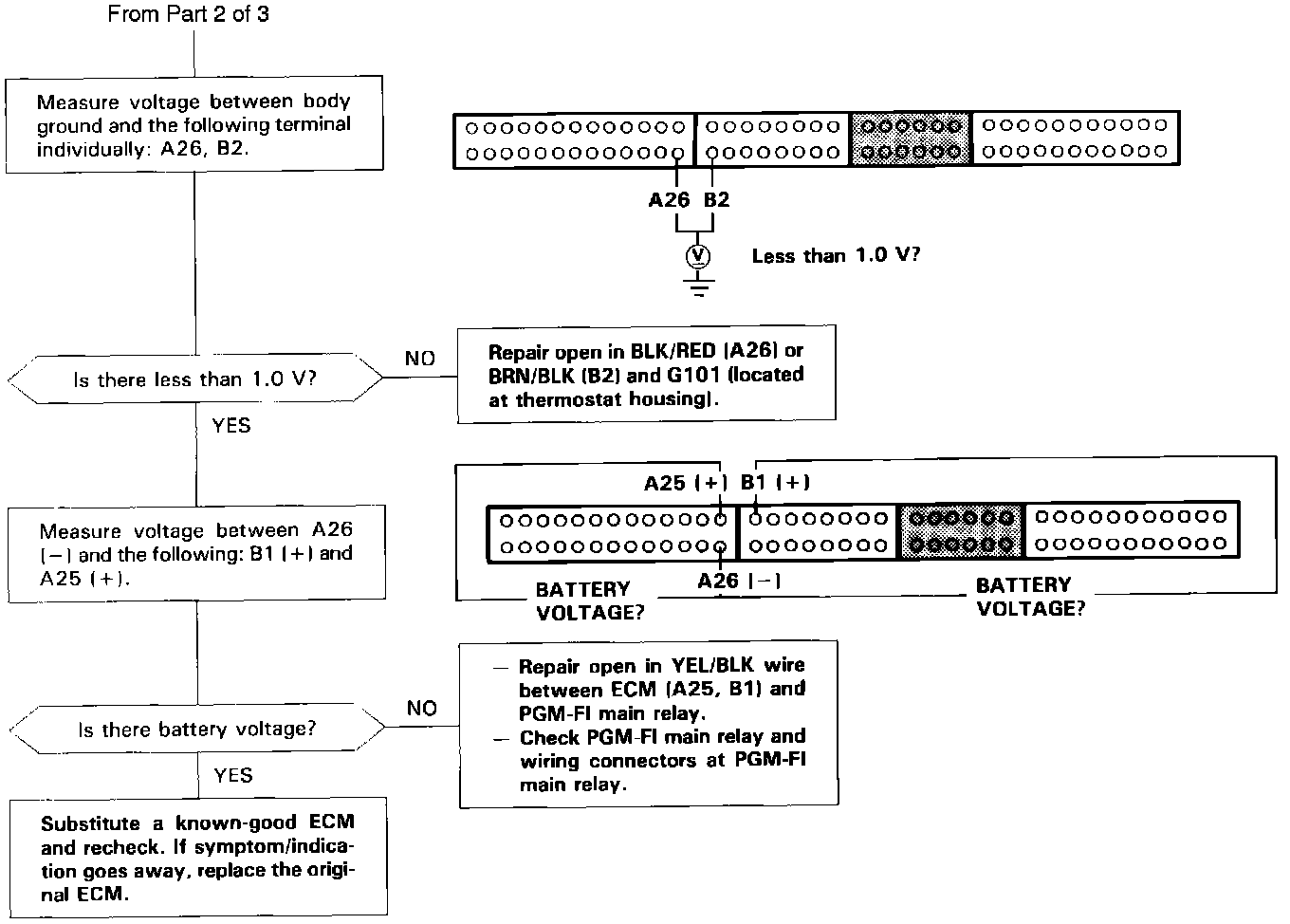

Malfunction Indicator Lamp (MIL) Remains On After 2 Seconds (Part 3 Of 3):





Malfunction Indicator Light (MIL) Remains on After 2 Seconds
