Intake Control System
Intake Control System

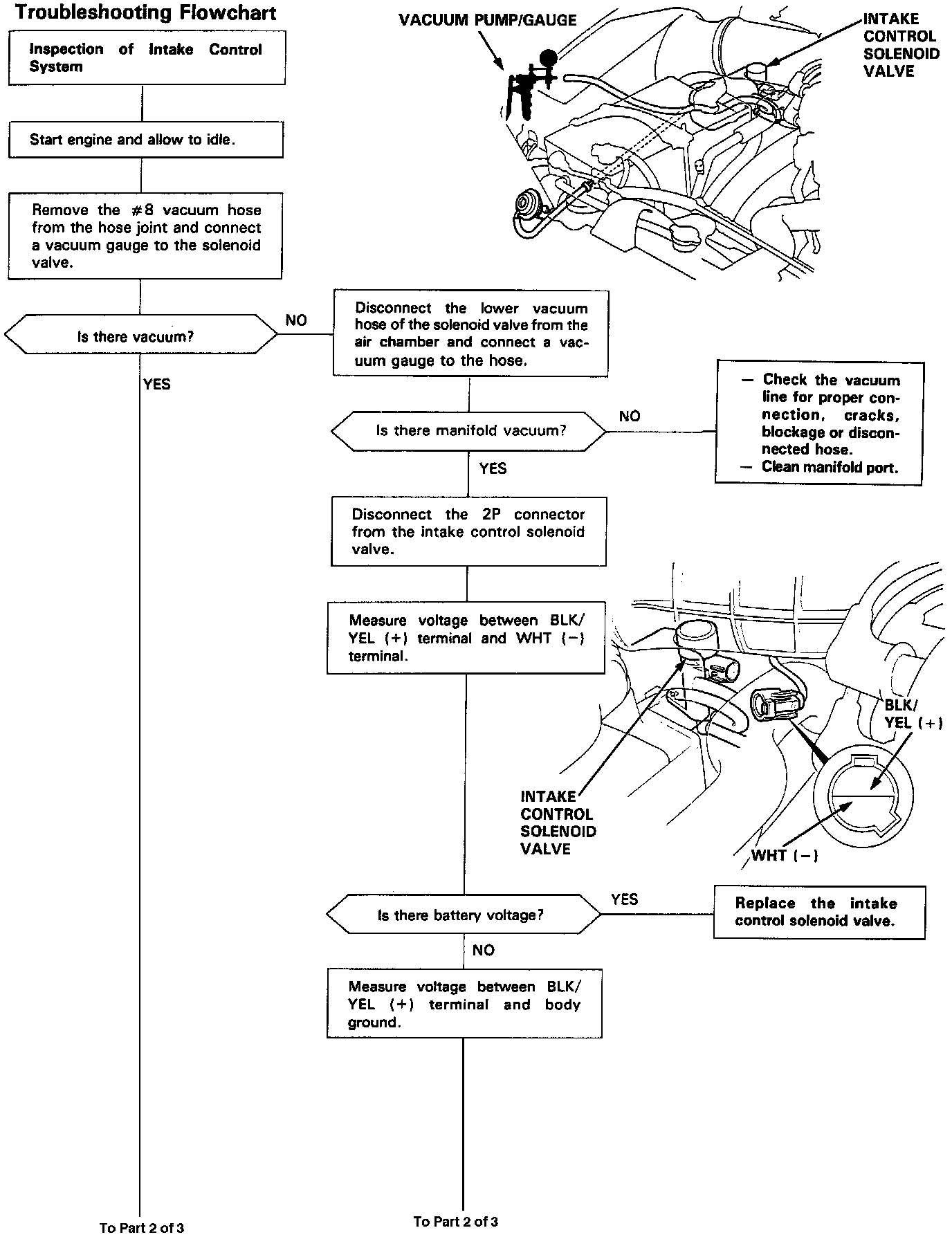

Intake Control System Diagnosis Part 1 Of 3.:

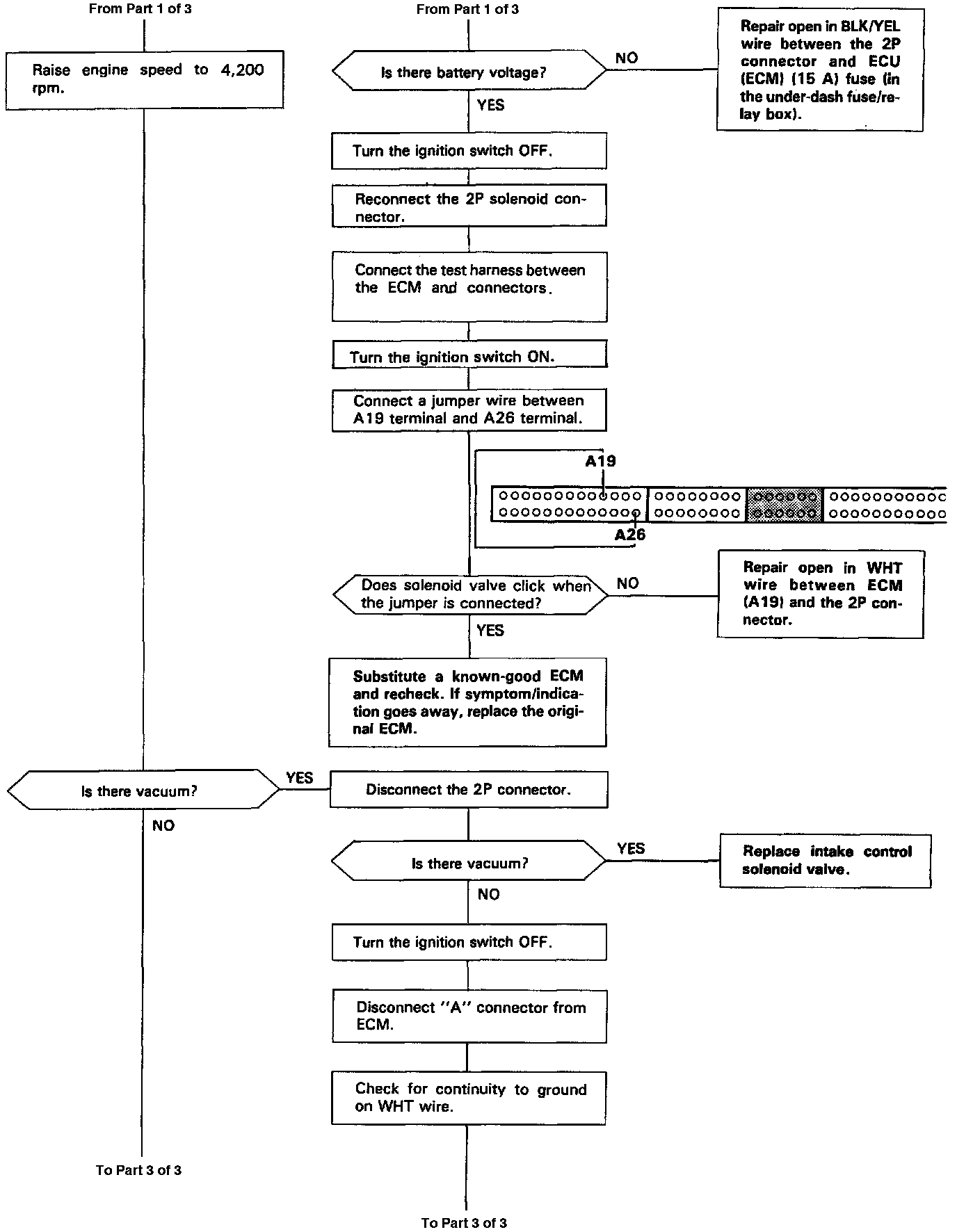

Intake Control System Diagnosis Part 2 Of 3.:
Intake Control System Diagnosis Part 3 Of 3.:
Intake Control System
