Diagnostic Mode Switch/Connector: Locations

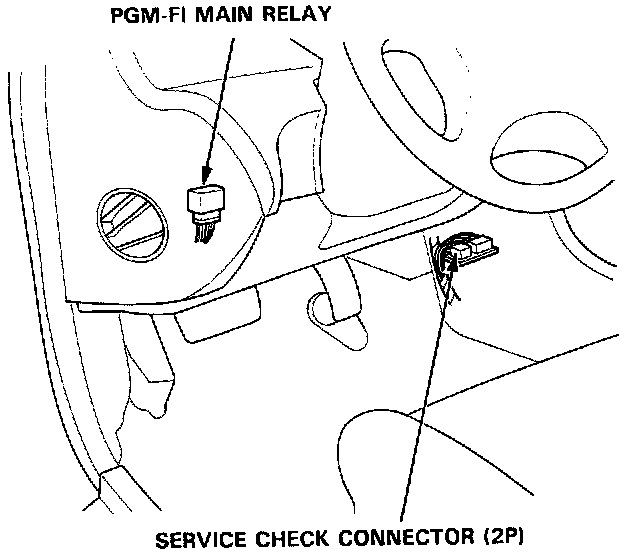

Main Relay And Service Check Connector Location:
The Service Check Connector is located under the middle of dash.
