Modulator Reservoir Brake Fluid Draining

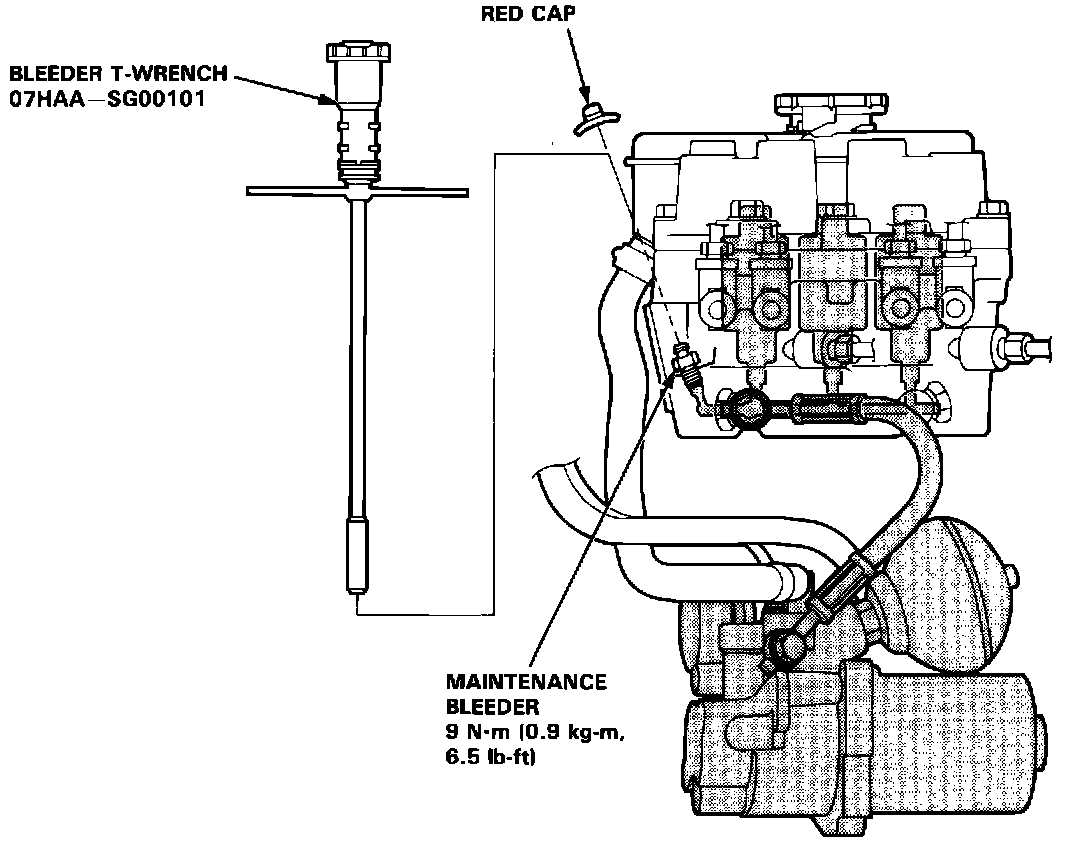

Relieving Accumulator/Line Pressure:

WARNING: Use the Bleeder T-wrench before disassembling the parts shaded in the illustration.

1. Draining brake fluid from modulator tank:

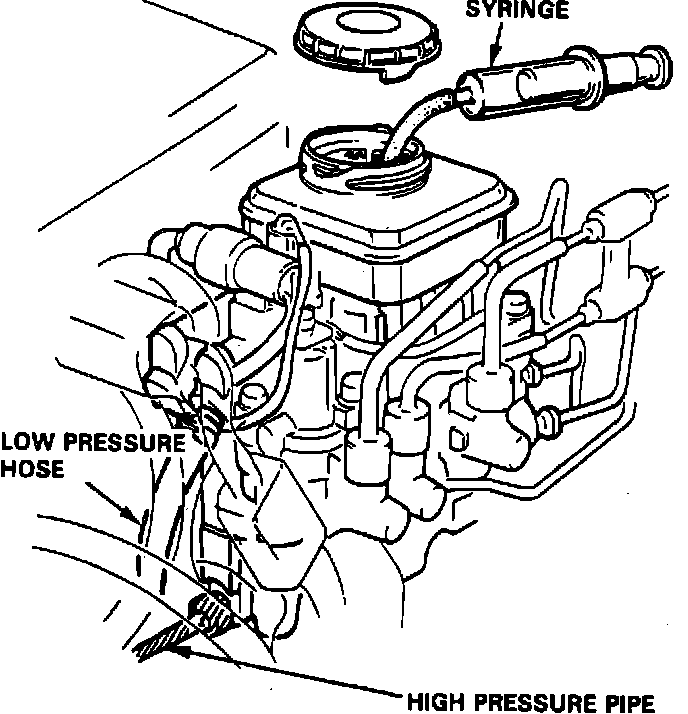

Fig. 75 Draining Brake Fluid Reservoir With A Syringe:

- The brake fluid may be sucked out through the top of the modulator tank with a syringe. It may also be drained through the pump joint after disconnecting the pump hose.
2. Draining brake fluid from master cylinder:
- Loosen the bleed screw and pump the brake pedal to drain the brake fluid from the master cylinder.

WARNING: High-pressure fluid will squirt out if the shaded hose and pipe are removed.
