Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Gauges
>>
With Luminescent Gauges
With Luminescent Gauges

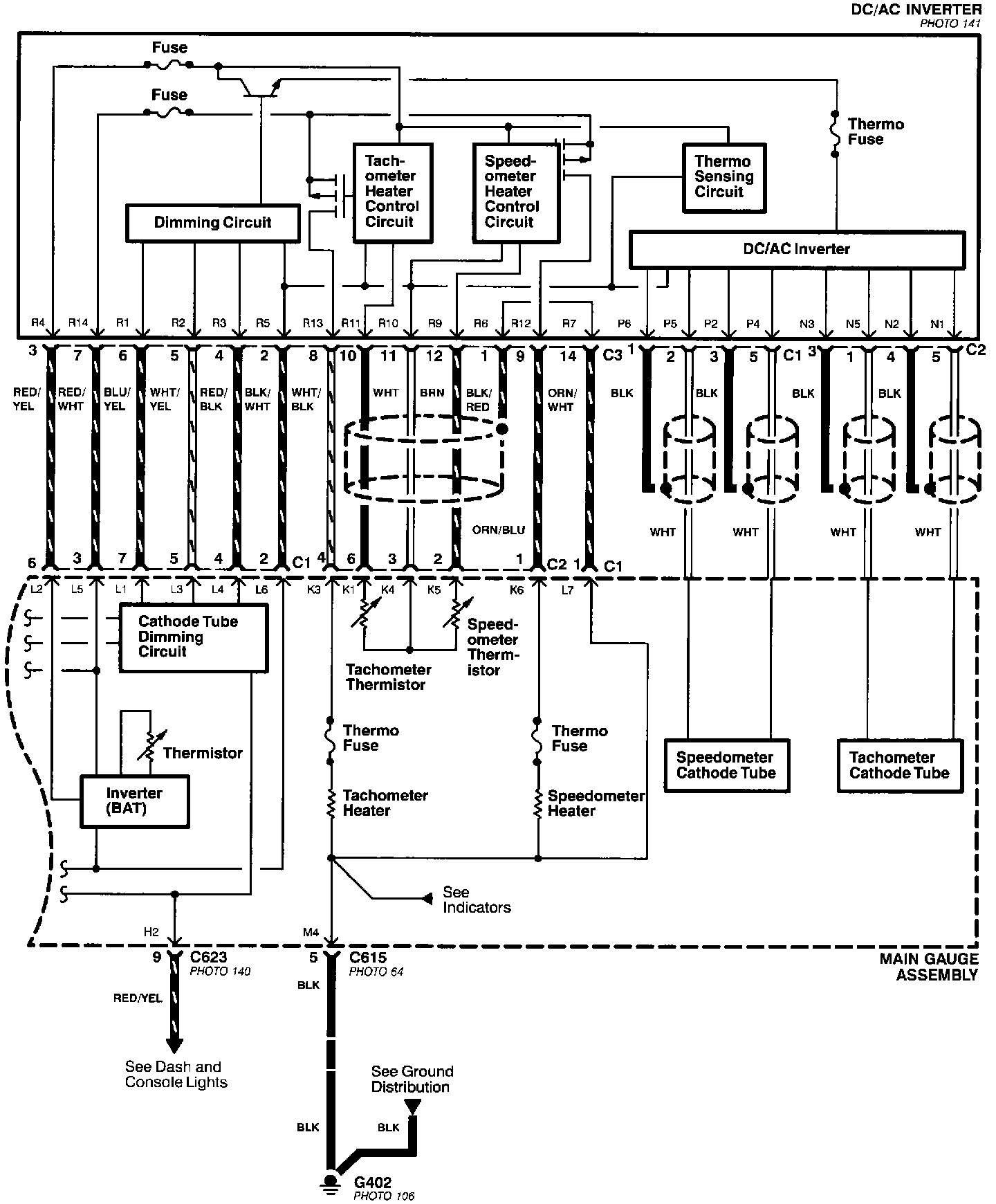

Gauges - Main Gauge Assembly (With Luminescent Gauges) (Part 1 Of 2):

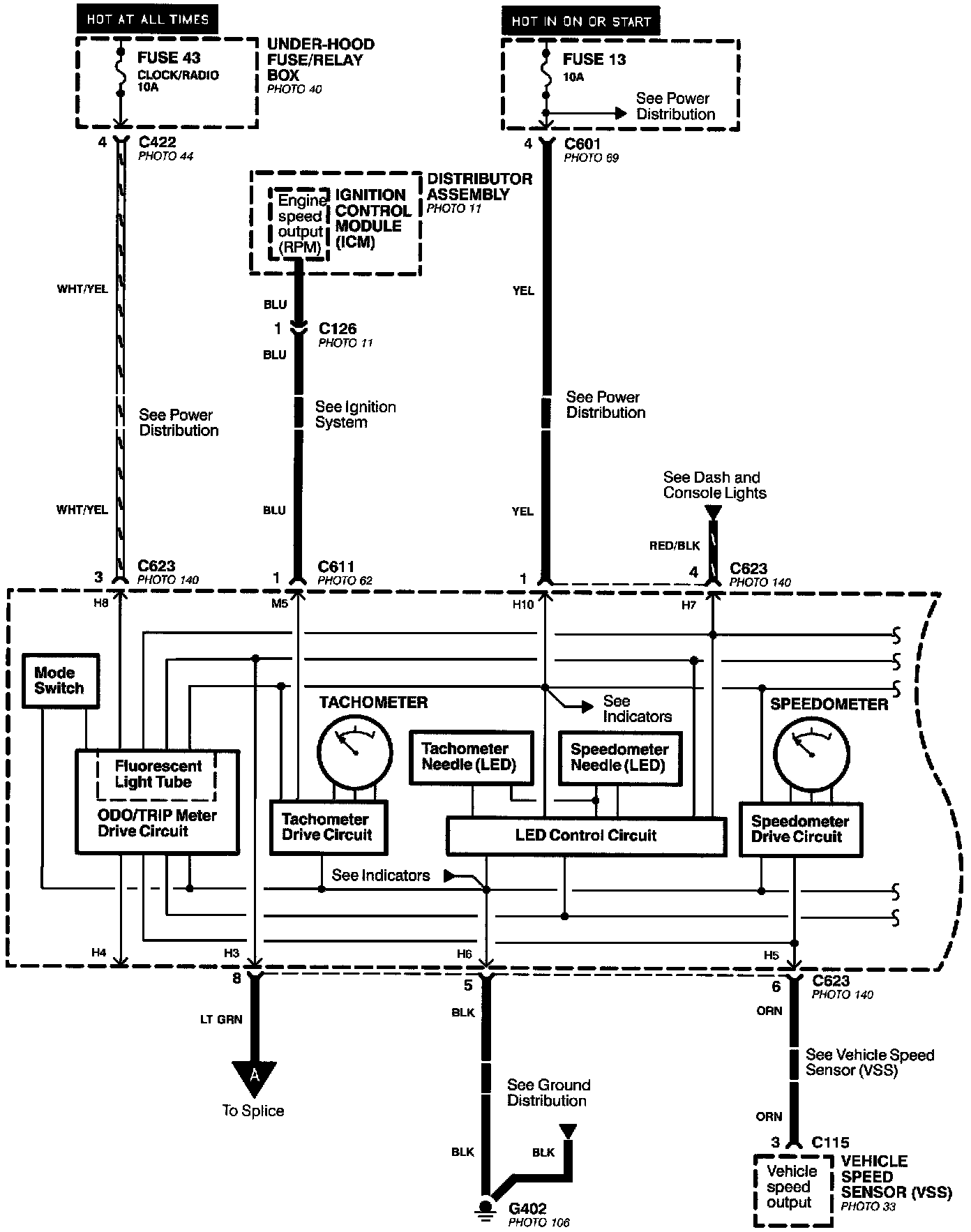

Gauges - Main Gauge Assembly (With Luminescent Gauges) (Part 2 0f 2):
