Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Exhaust System
>>
Service and Repair

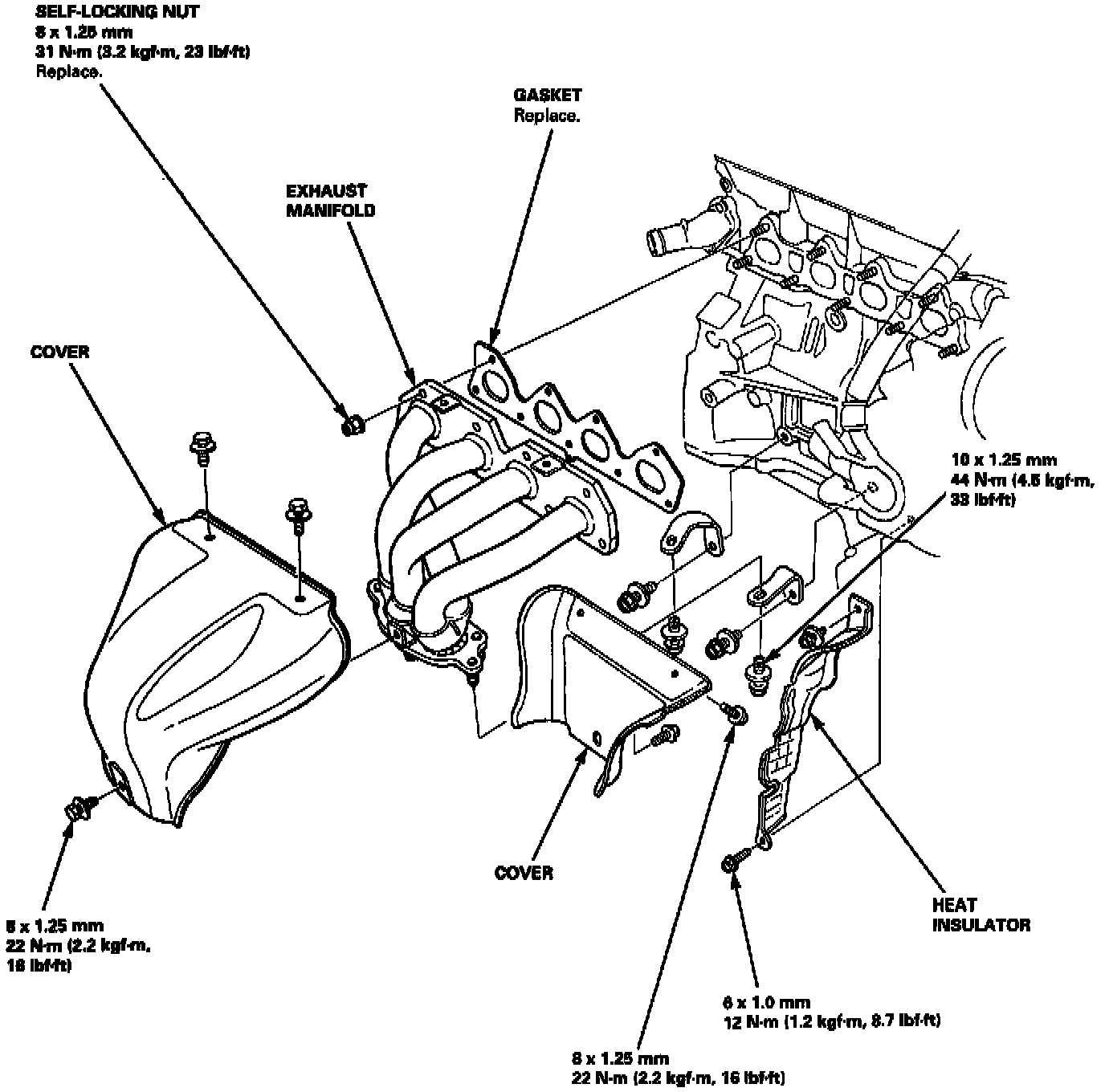

Exhaust System: Service and Repair
NOTE:
Use new gaskets and self-locking nuts when reassembling.
CAUTION:
-
Check for folds or scratches on the surface of the gasket.
-
Replace with a new gasket if damaged.
