Thermostat: Service and Repair

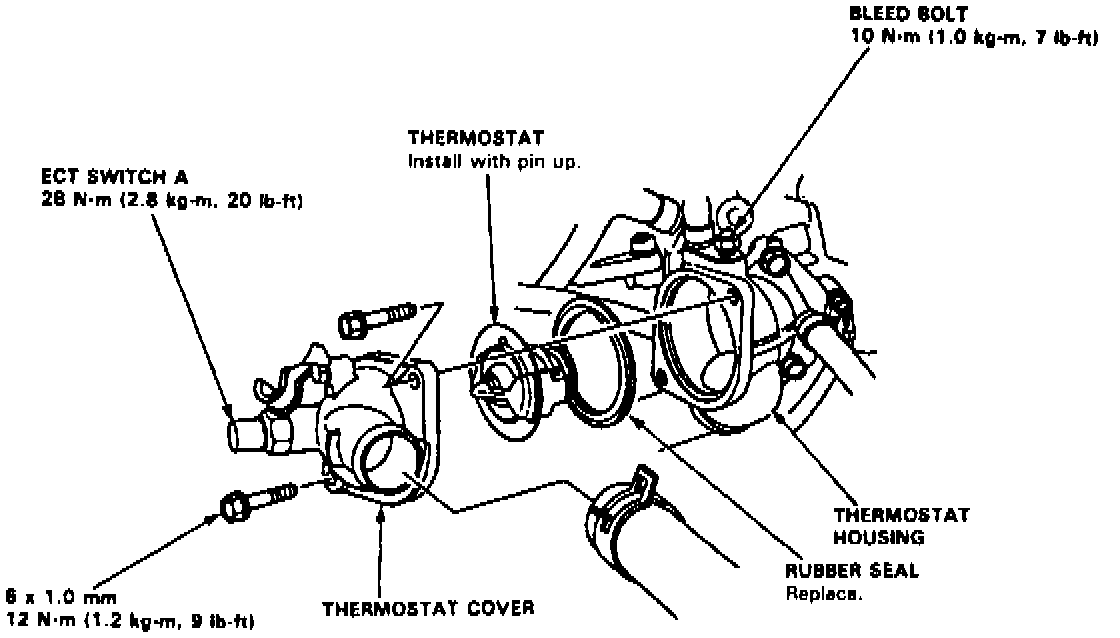

Fig. 69 Thermostat Replacement:





Refer to Fig. 69, for thermostat replacement.
