Main Wire Harness, Left Side of Dash

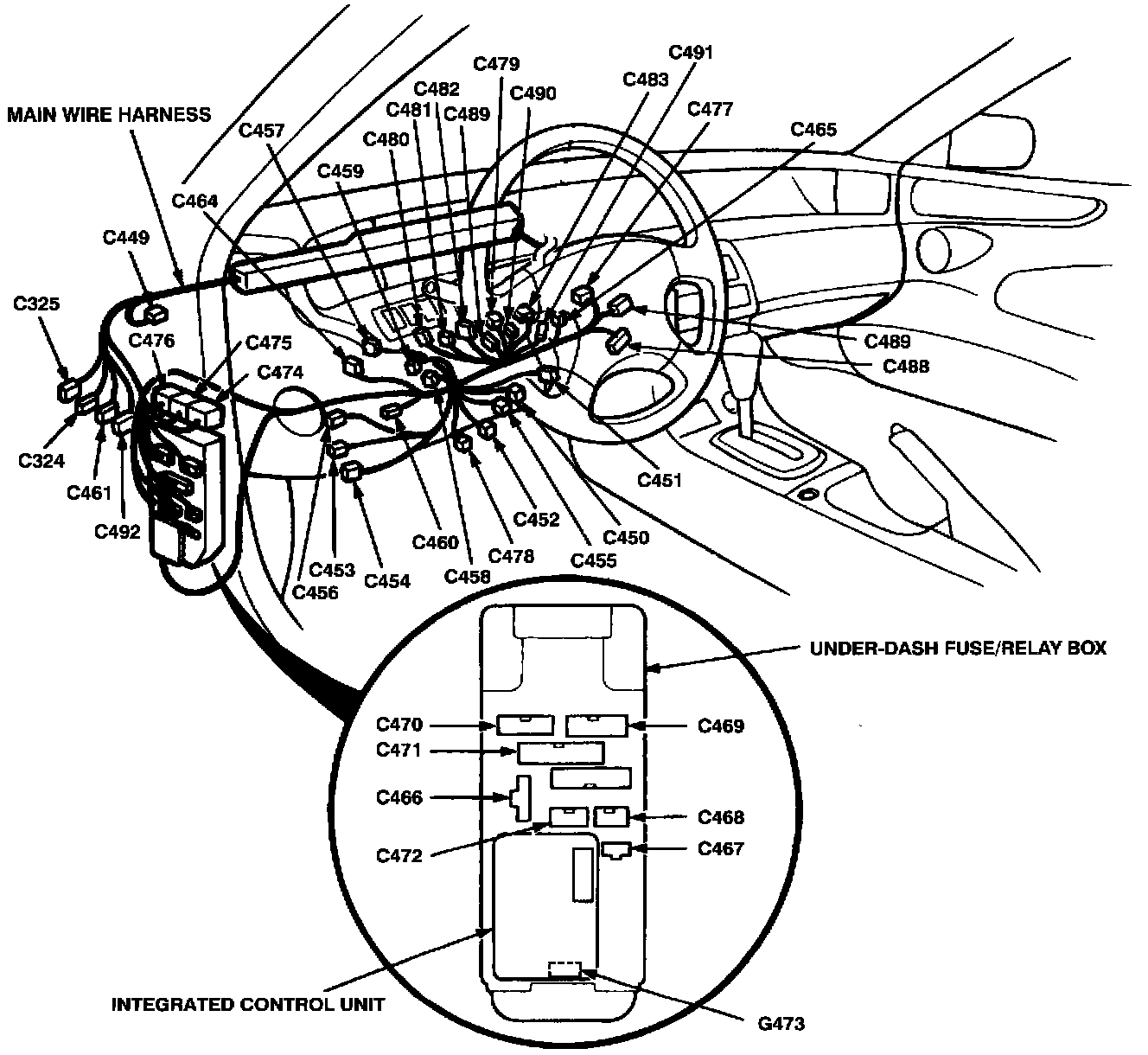

Main Wire Harness (Left Side Of Dash And Floor Branch):

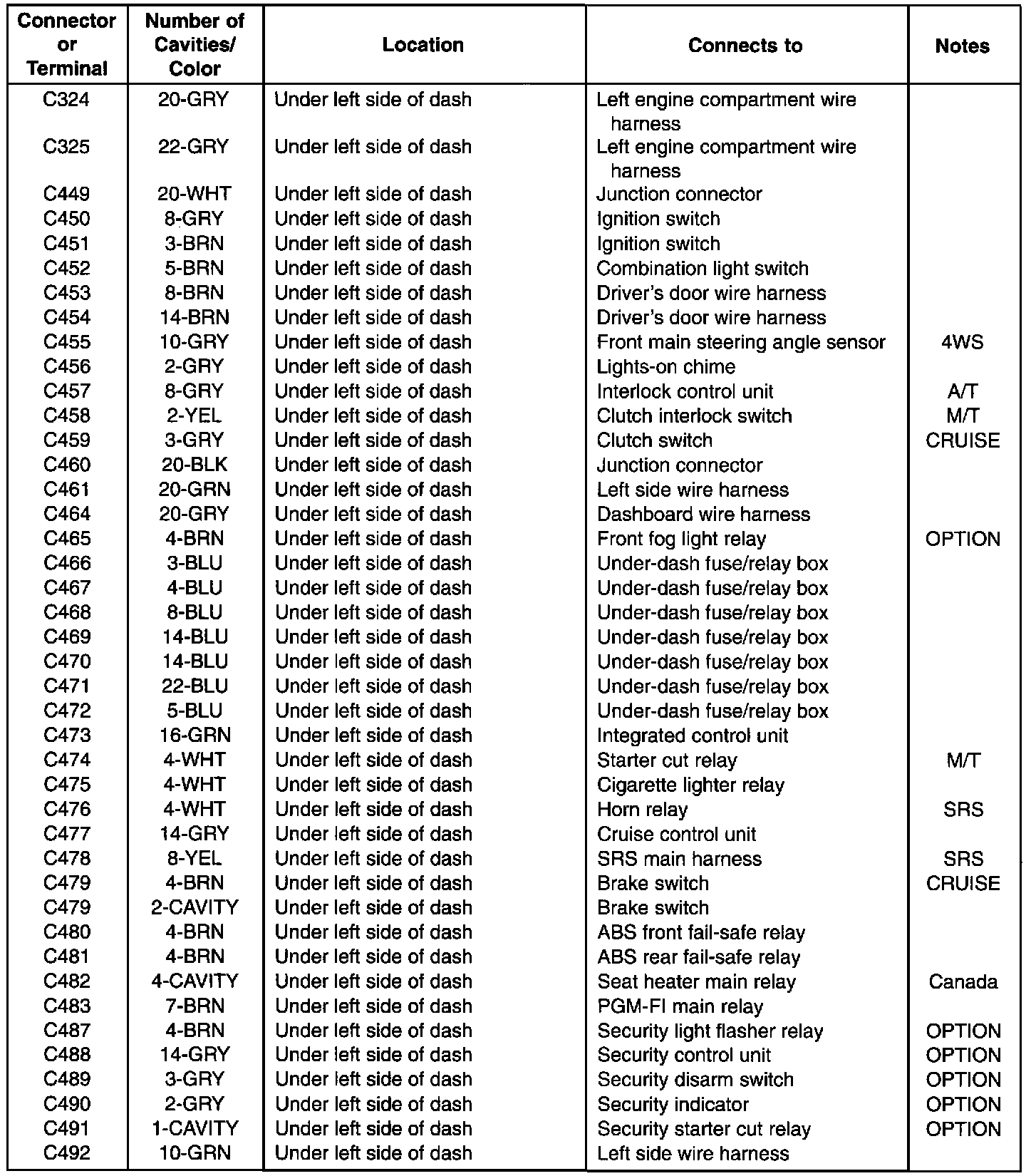

Main Wire Harness (Left Side Of Dash And Floor Branch):
