Home
>>
Honda
>>
1994
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

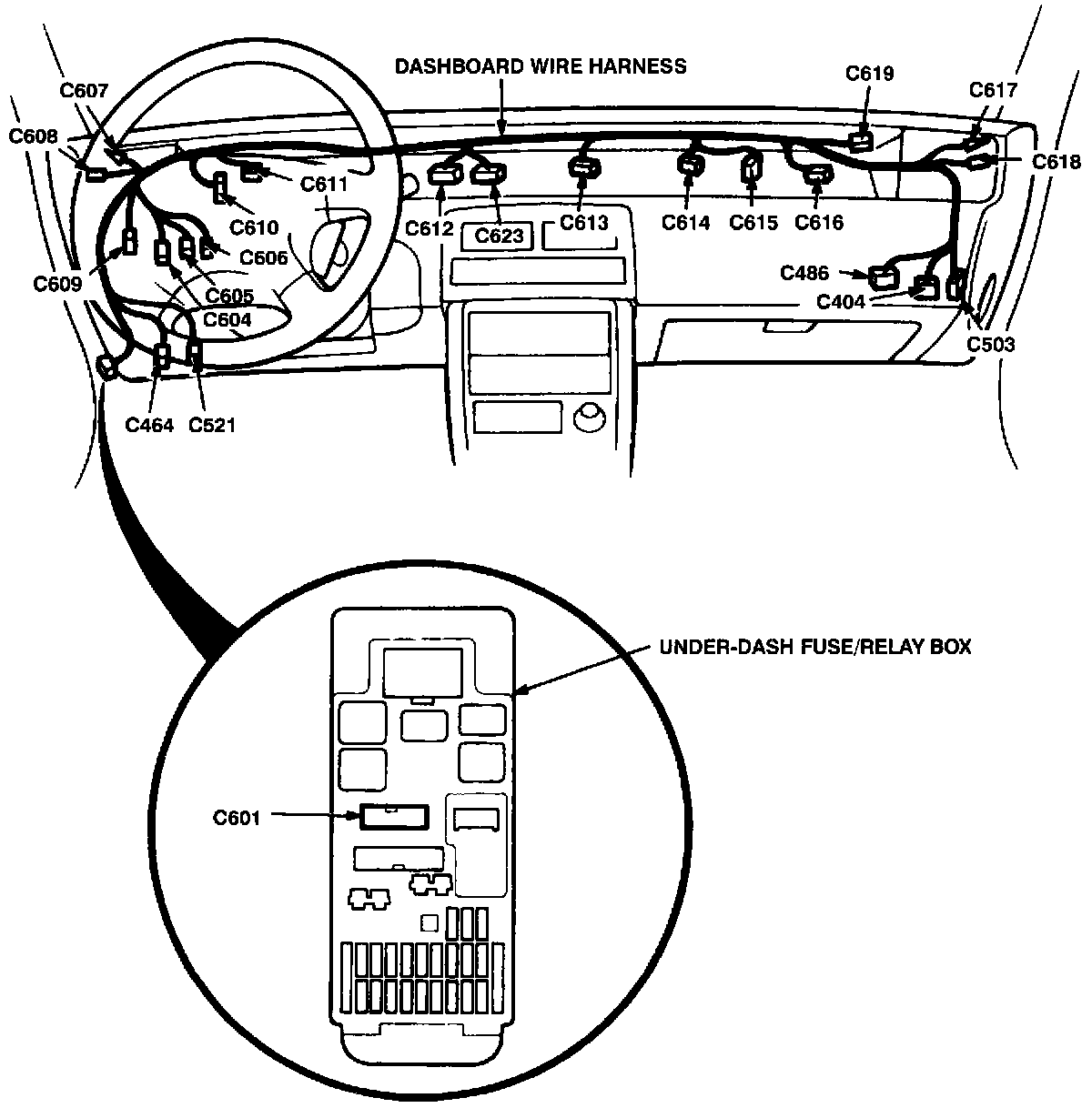

Dashboard Wire Harness
Dashboard Wire Harness

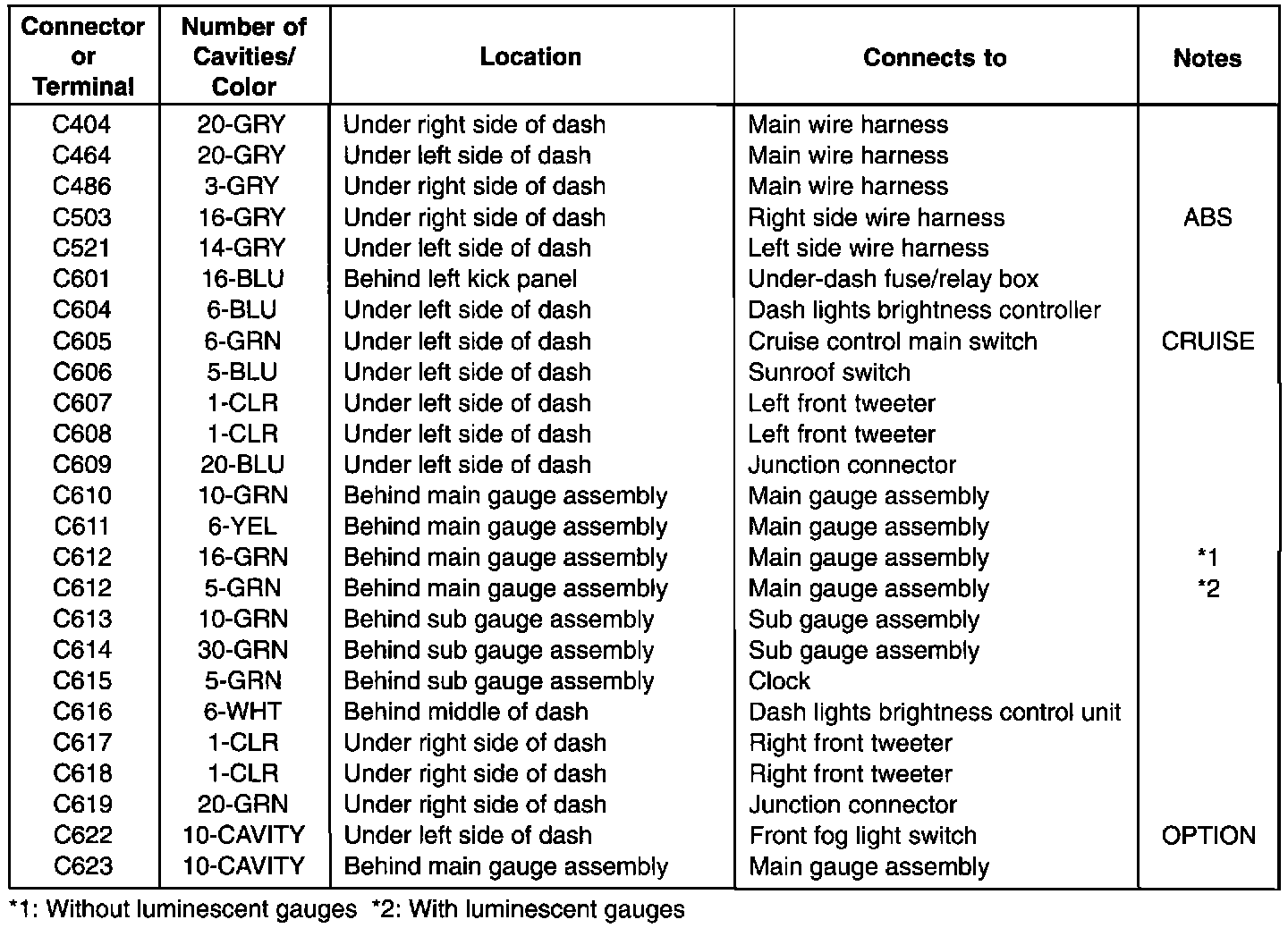

Dash Board Wire Harness:
Dash Board Wire Harness:
