Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> PGM-FI System Wiring Circuit >> Part 2 of 5

Part 2 of 5

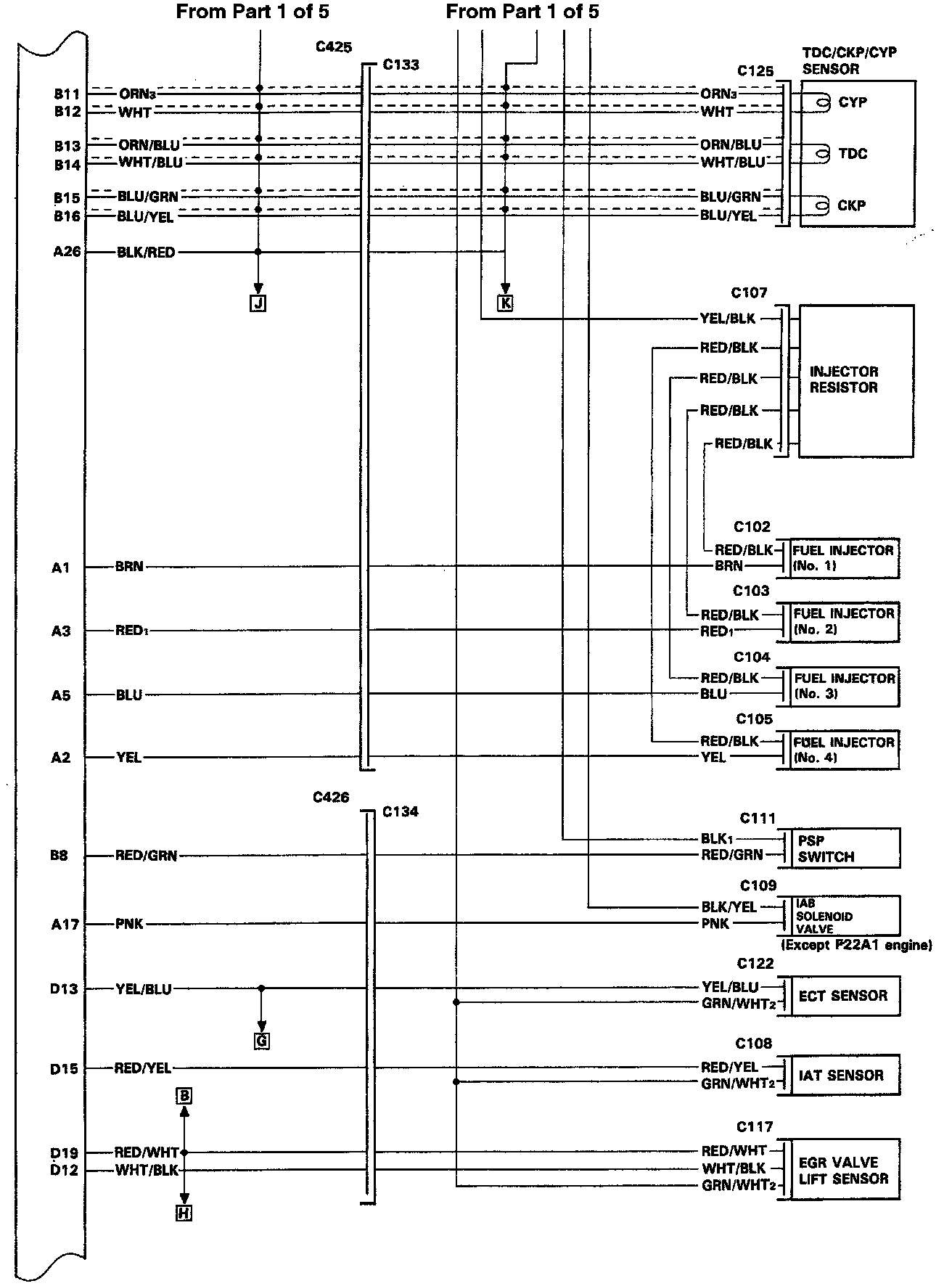

PGM-FI System And Harness Connectors, Part 2 Of 5:
