Power Input, Main Relay, and Fuel Control

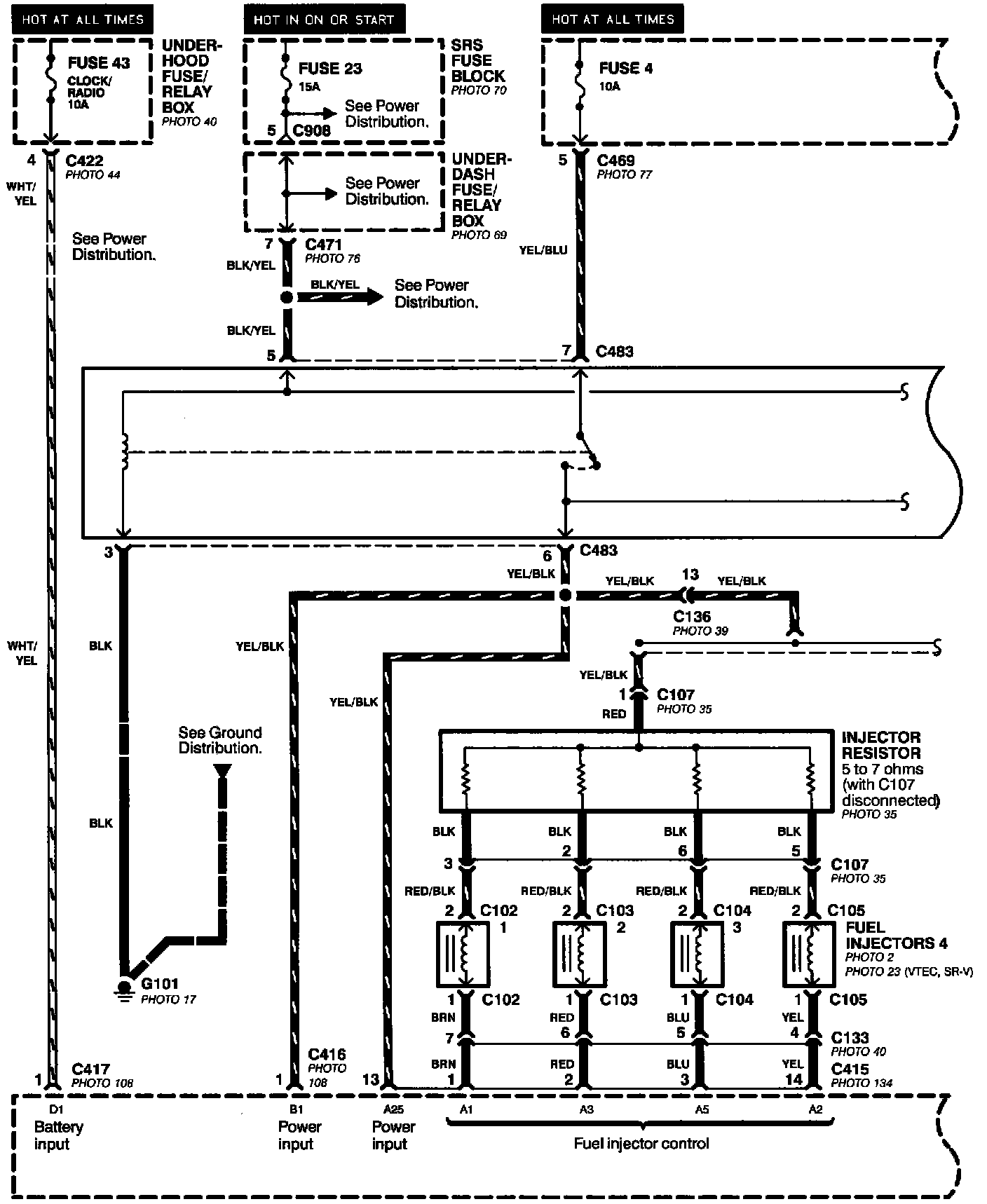

Programmed Fuel Injection System- Power Input, Main Relay, And Fuel Control (Part 1 Of 2):

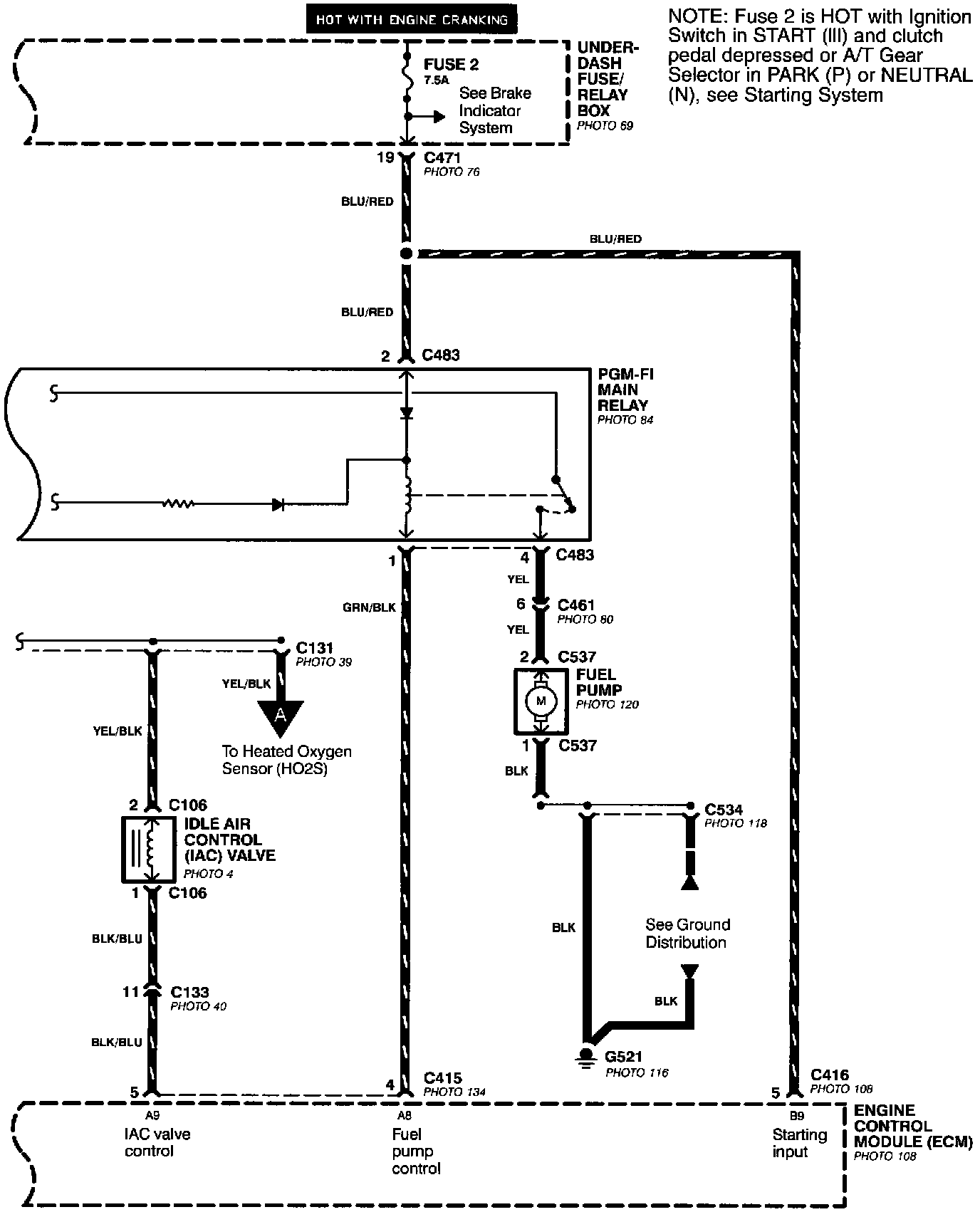

Programmed Fuel Injection System- Power Input, Main Relay, And Fuel Control (Part 2 Of 2):
