Engine and Vehicle Data Sensors
Engine and Vehicle Data Sensors
Programmed Fuel Injection System- Engine And Vehicle Data Sensors (Part 1 Of 2):

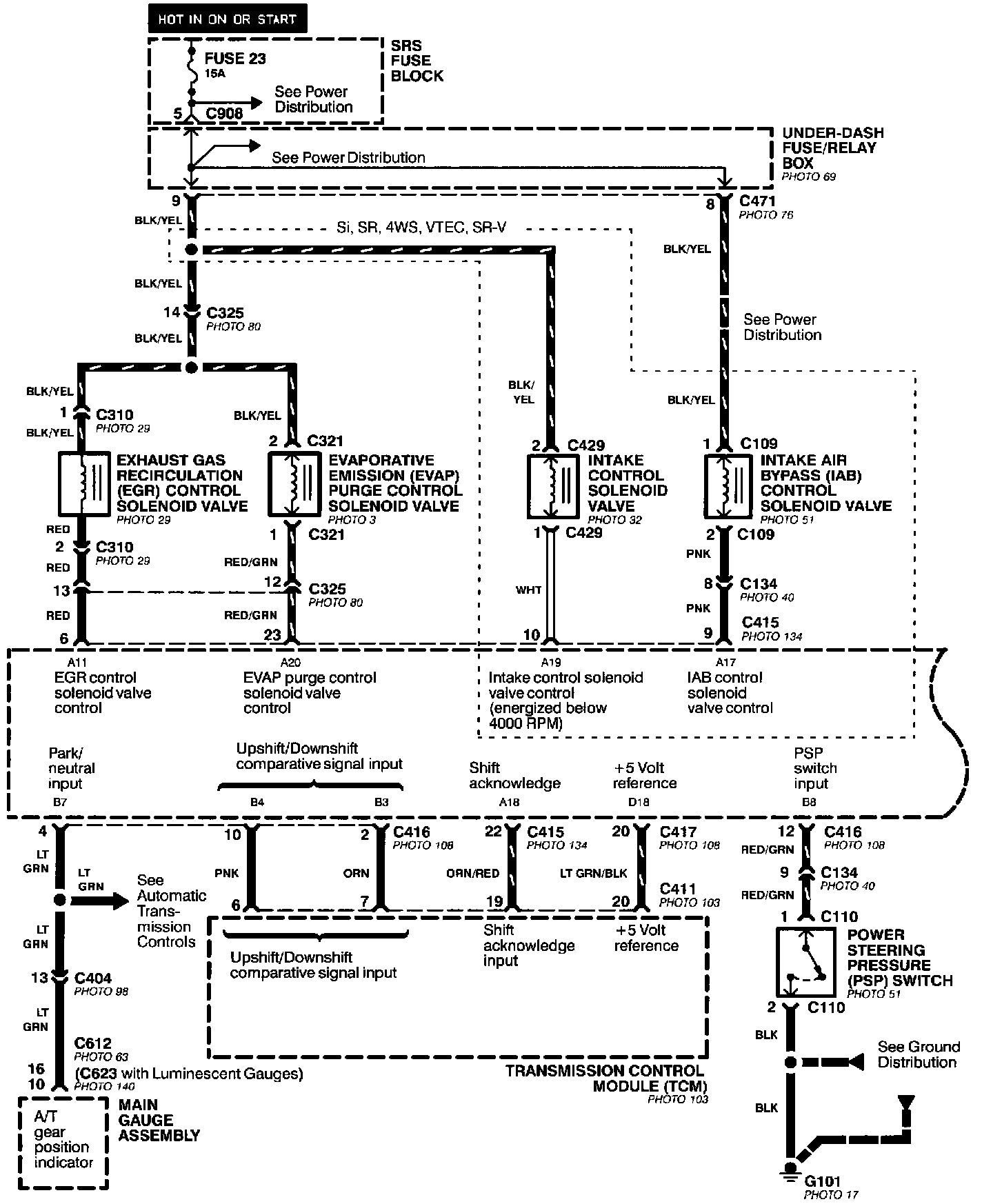

Programmed Fuel Injection System- Engine And Vehicle Data Sensors (Part 2 Of 2):
