Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Gauges >> Without Luminescent Gauges >> Sub Gauge Assembly

Sub Gauge Assembly

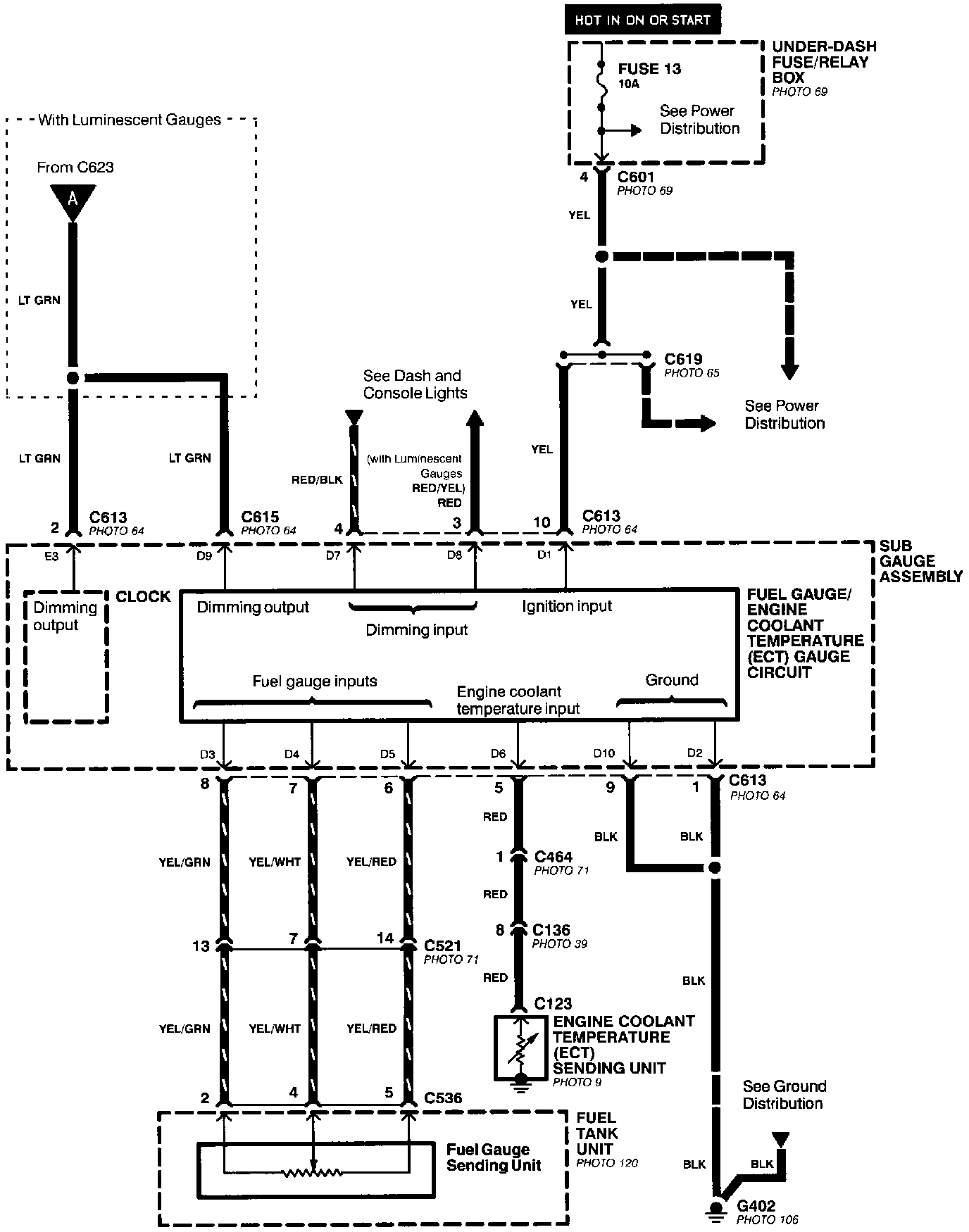

Gauges - Sub Gauge Assembly (Without Luminescent Gauges):
