Home
>>
Honda
>>
1994
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Gauges
>>
Without Luminescent Gauges
>>
Main Gauge Assembly
Main Gauge Assembly

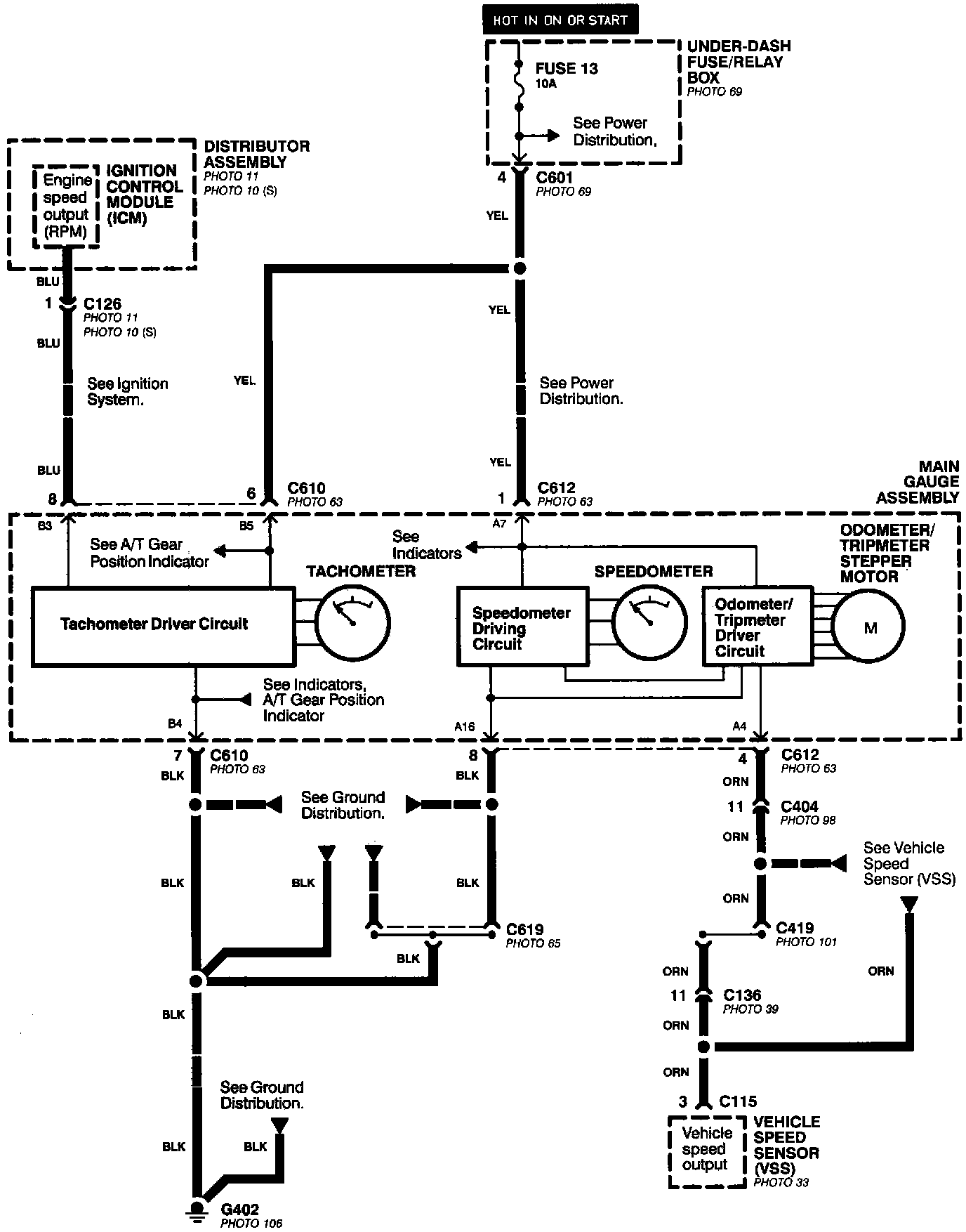

Gauges - Main Gauge Assembly (Without Lumniscent Gauges):
