Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> SI, (SR., 4WS, VTEC, (SR.-V Models

SI, (SR., 4WS, VTEC, (SR.-V Models

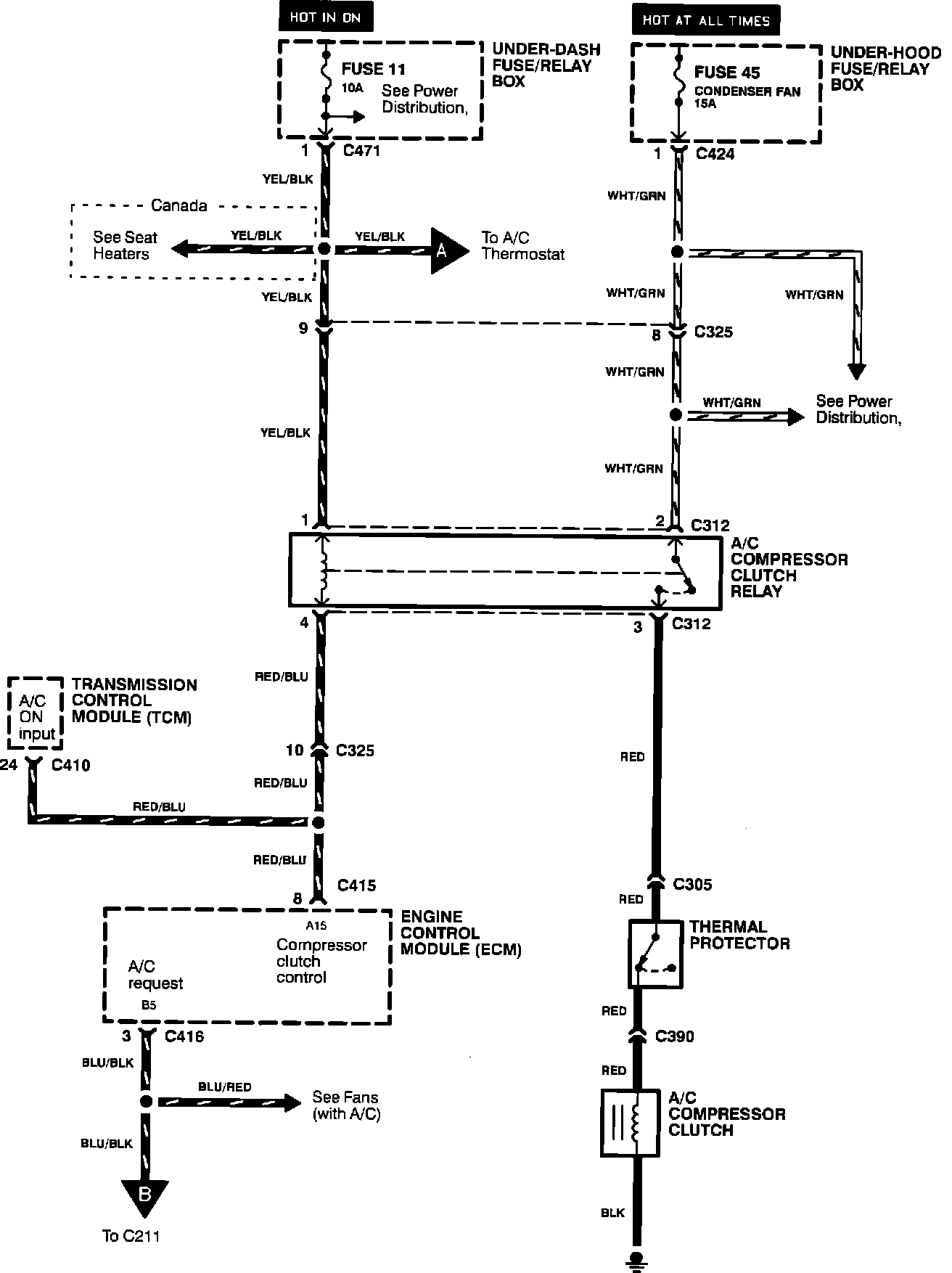

A/C Compressor Controls Si, SR, 4WS, VTEC, SR-V Models:
