Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> S Model Only

S Model Only

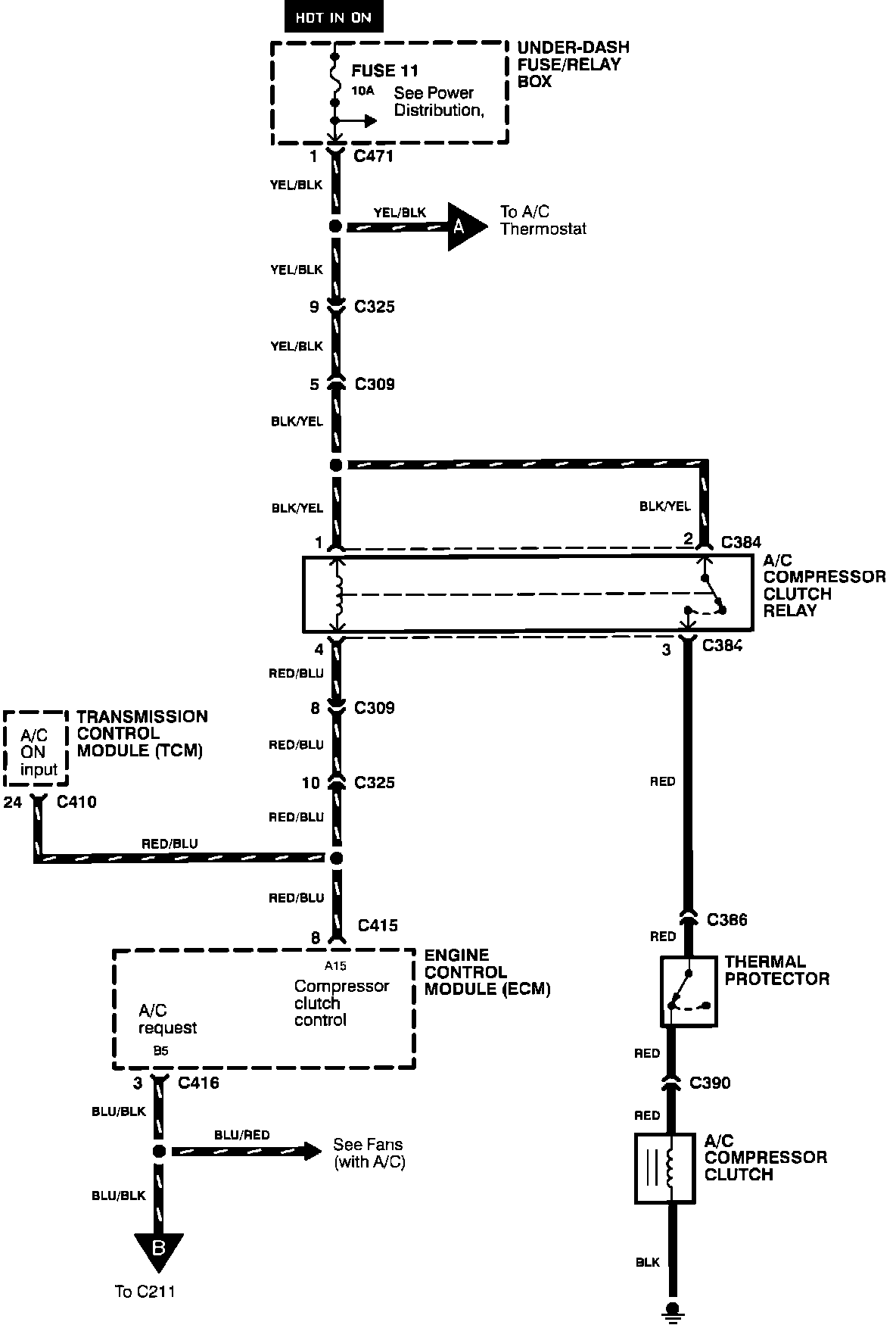

A/C Compressor Controls S-Model Only:
