Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Condenser Fan >> Si, SR, 4WS, VTEC, SR-V

Si, SR, 4WS, VTEC, SR-V

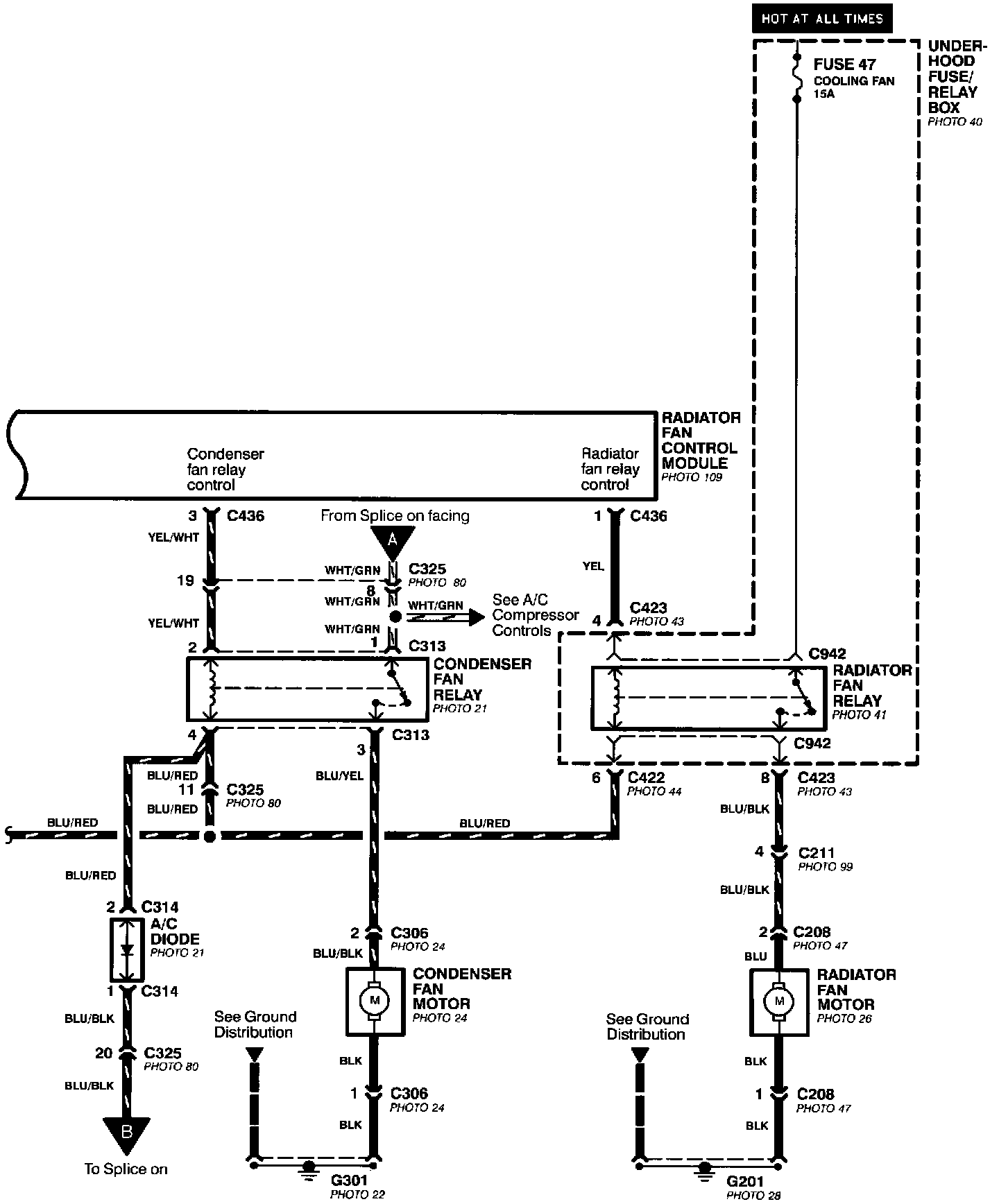

Fans- SI, SR, 4WS, VTEC, SR-V Models:

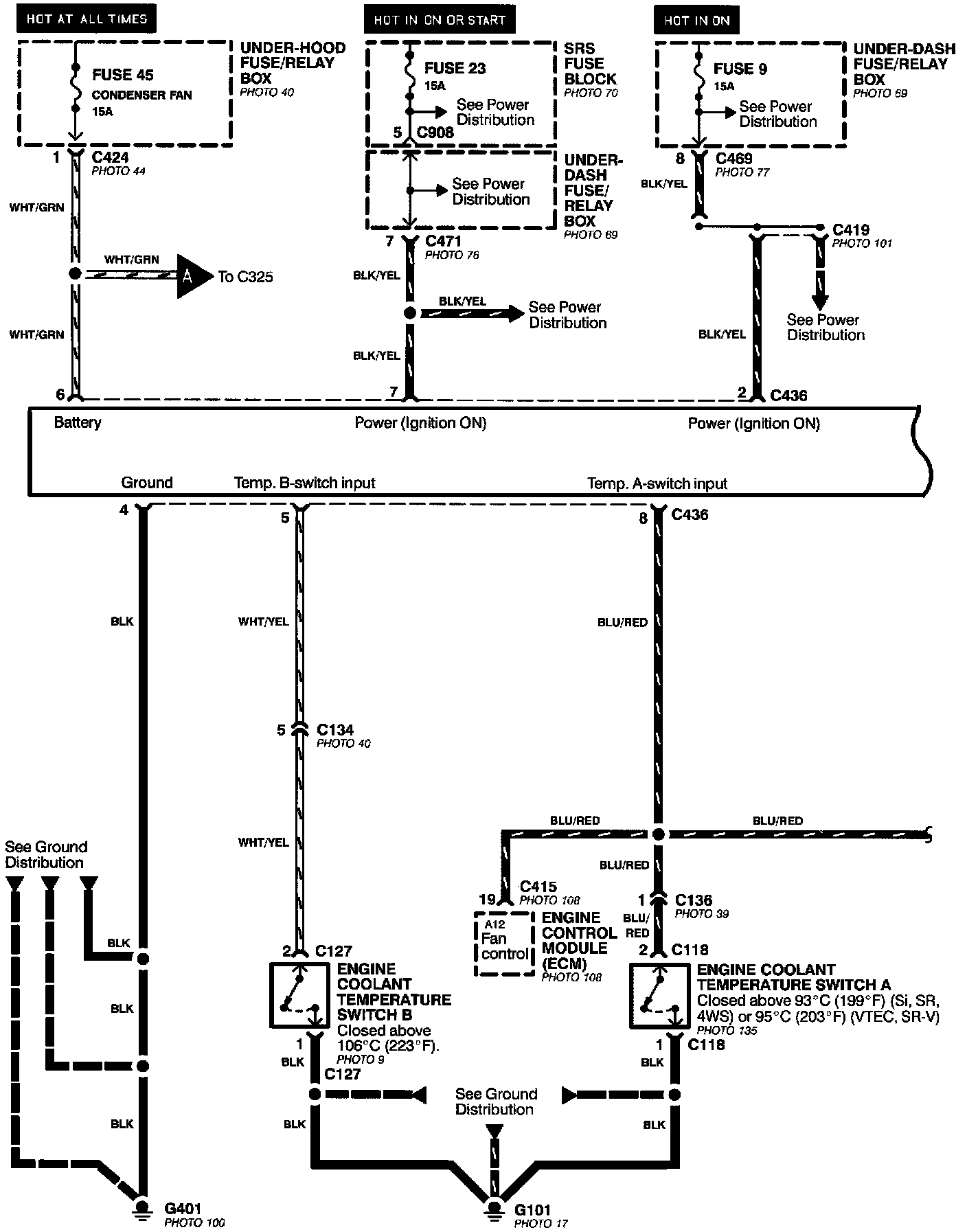

Fans- SI, SR, 4WS, VTEC, SR-V Models:
