Honda
>>
1994
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>

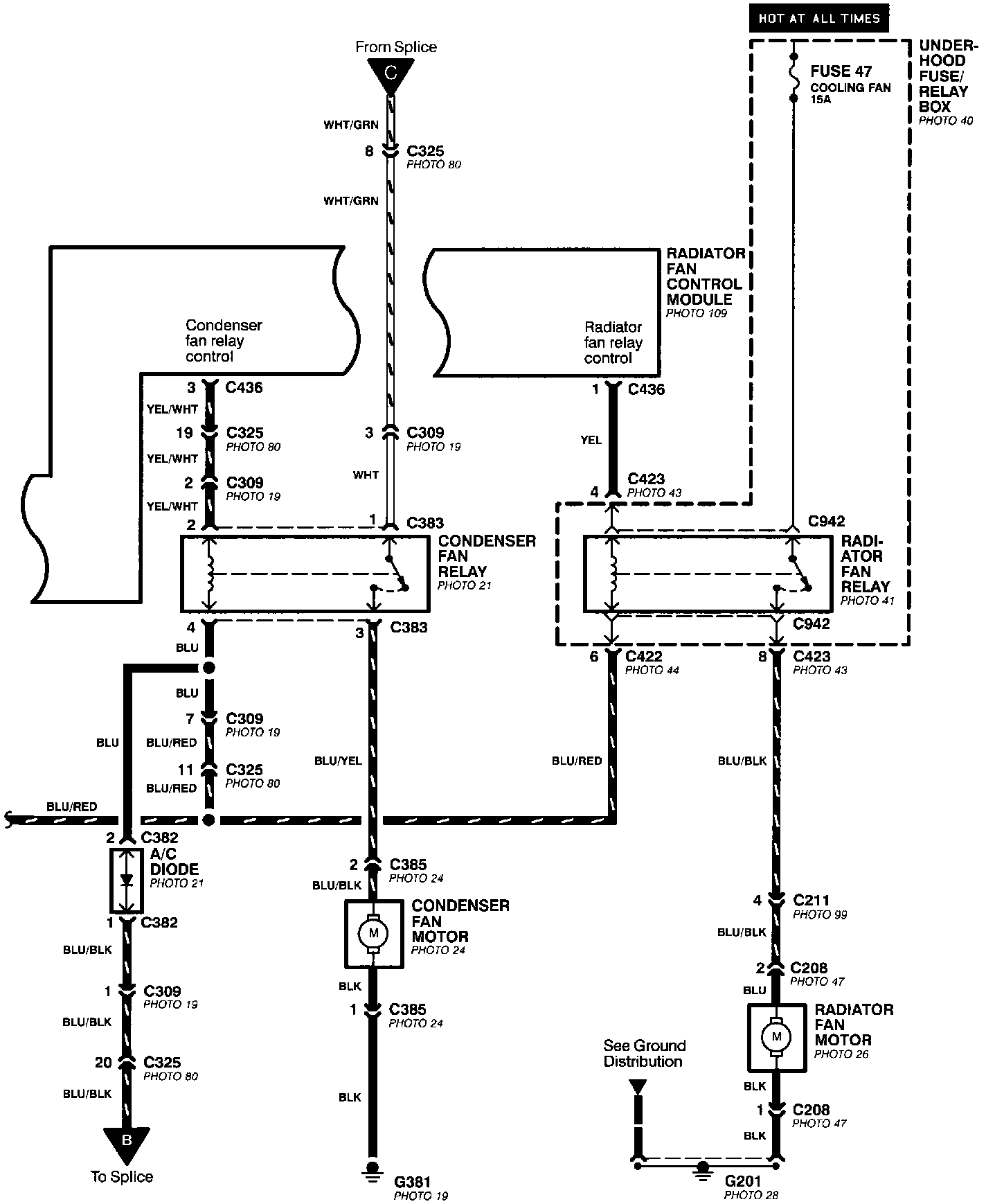

Condenser Fan
>>
S
S

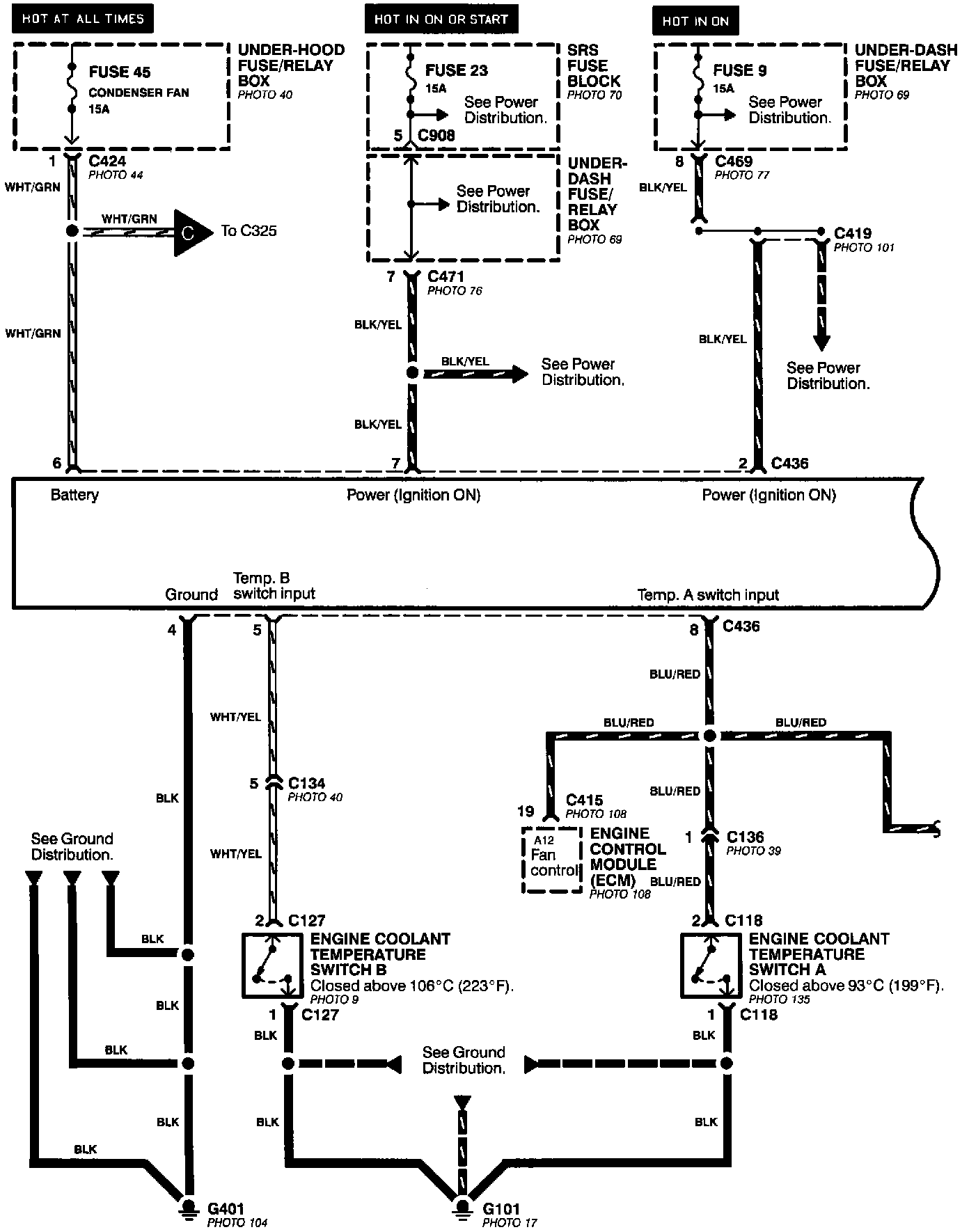

Fans (With A/C) S Models:
Fans (With A/C) S Models:
