Without Air Conditioning

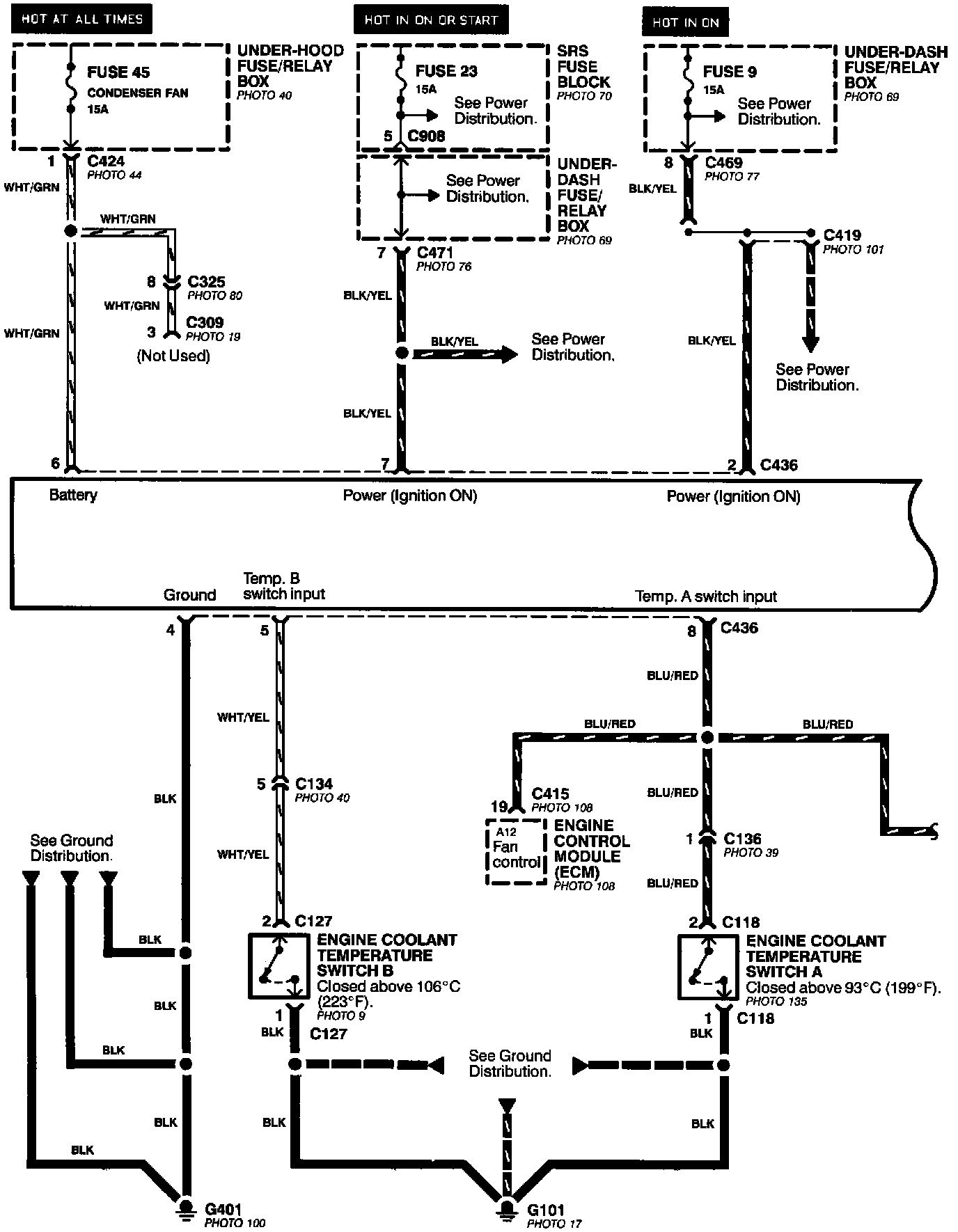

S Models without A/C:



S Models Without A/C:

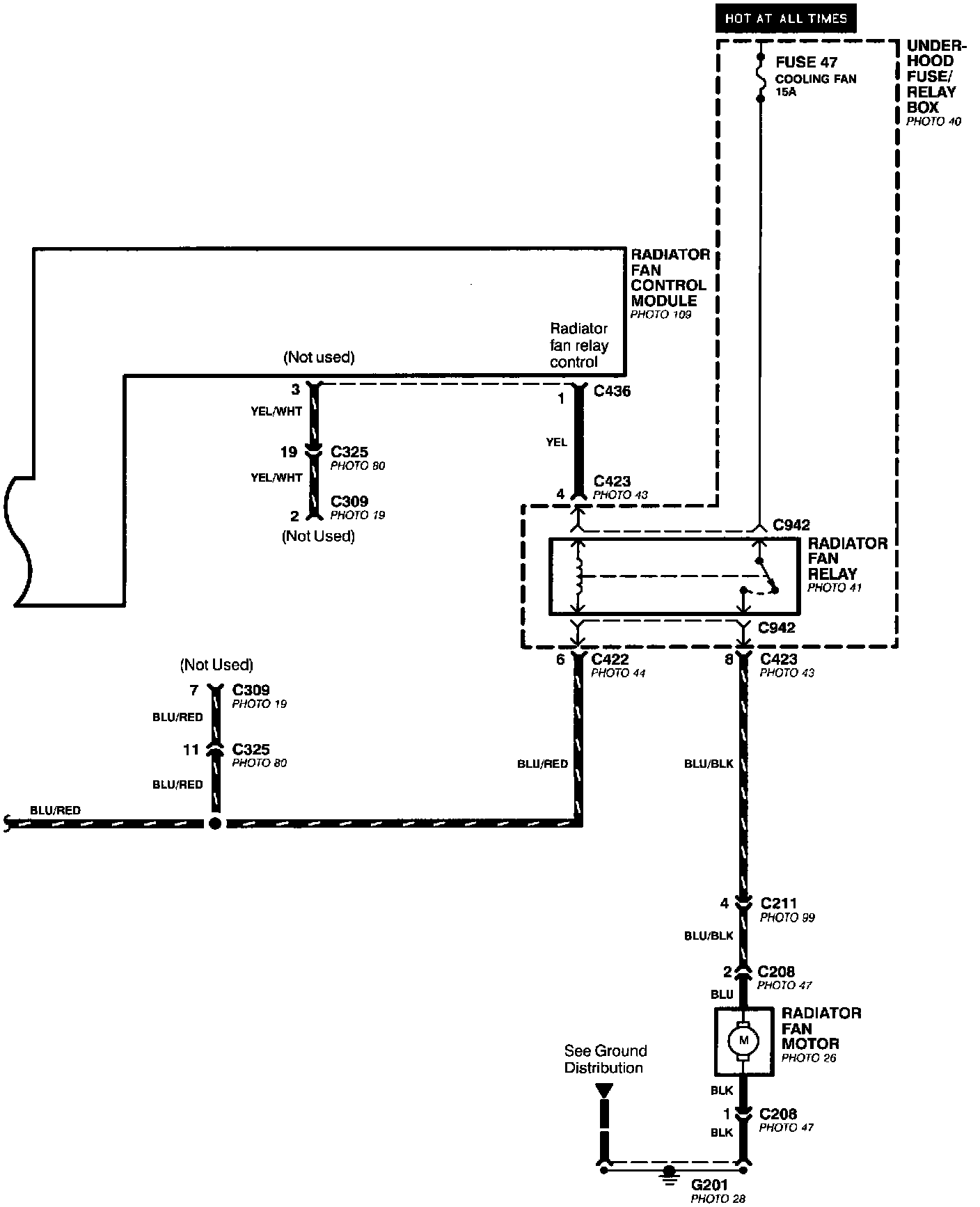

Fans- SI, SR, 4WS, VTEC, SR-V Models:



Fans- SI, SR, 4WS, VTEC, SR-V Models:



Fans- Si, SR, 4WS, VTEC, SR-V Models:
