Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Lamp >> LED Type High Mount Brake Light

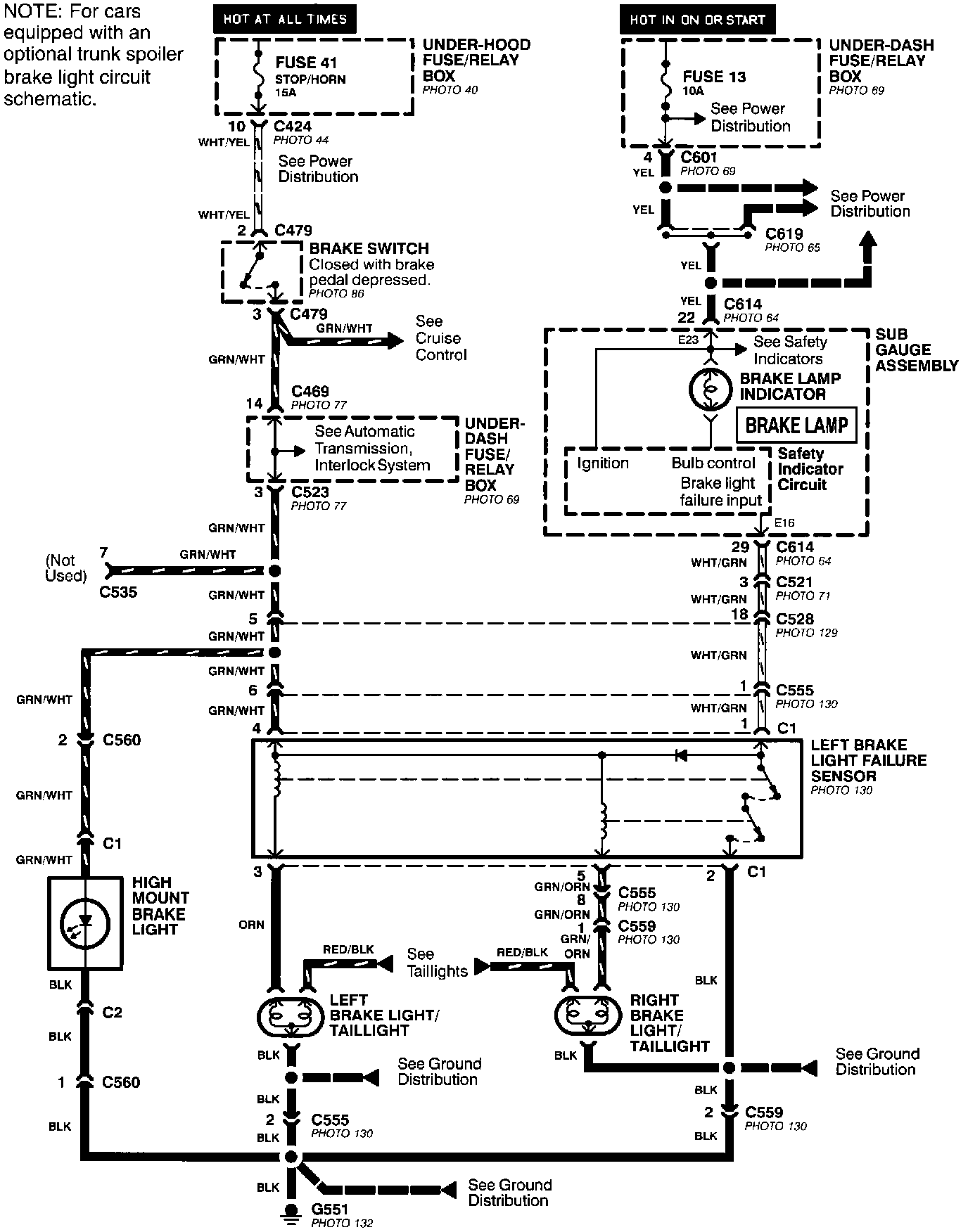

LED Type High Mount Brake Light

Brake Lights- LED Type High Mount Brake Light:
