W/2 Wheel Steering

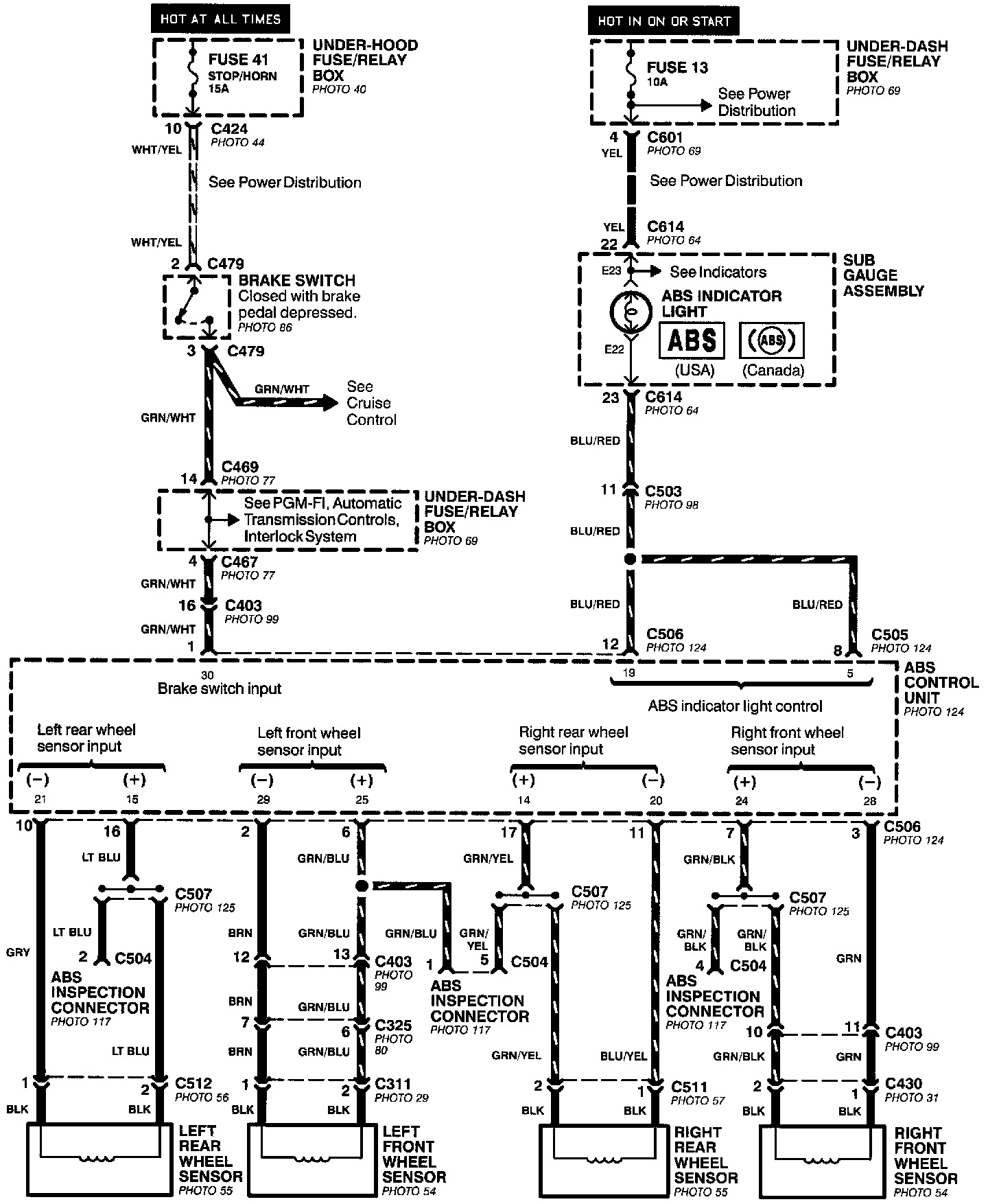

Anti-Lock Brake System- Brake Switch, Indicator, And Wheel Speed Sensor Inputs:

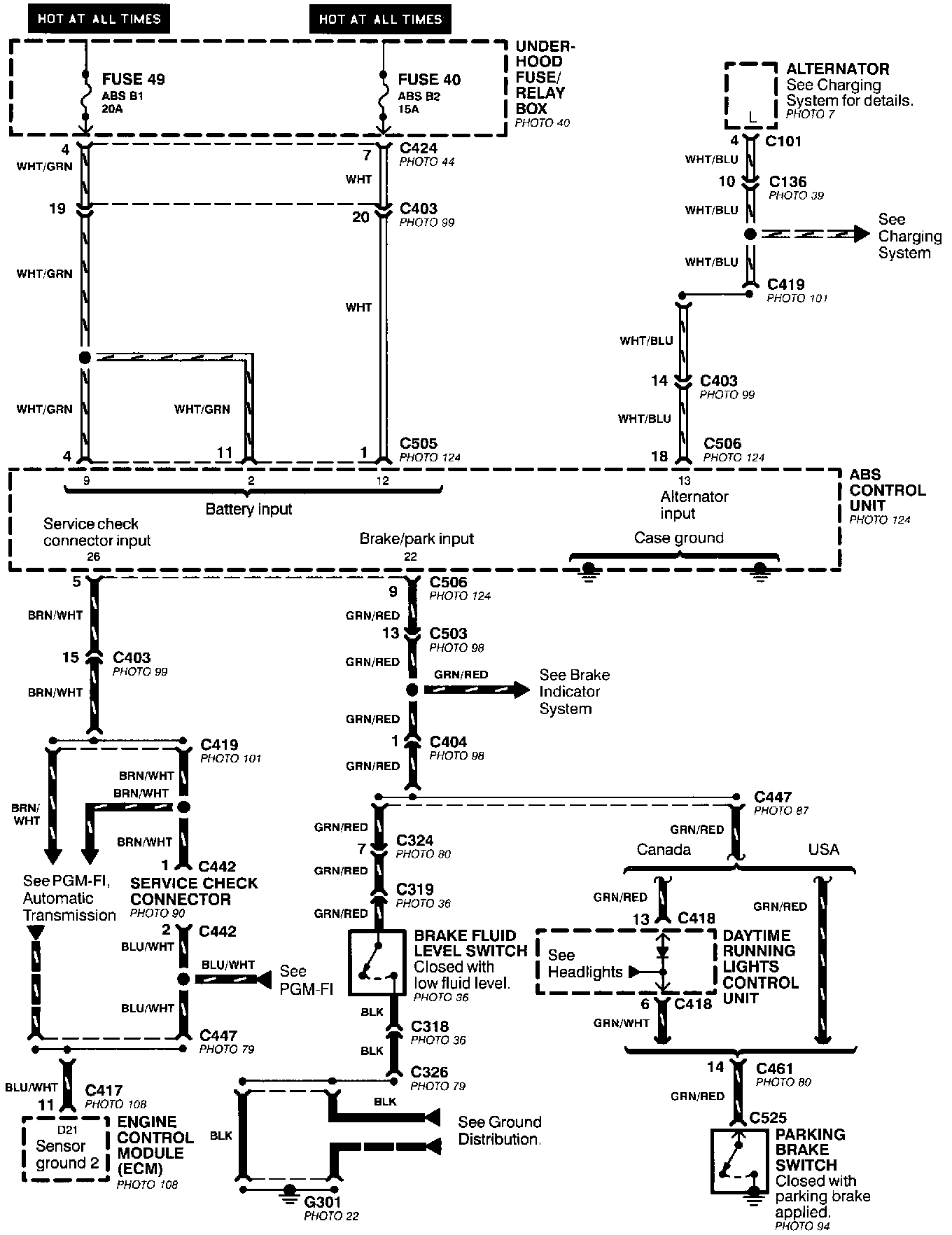

Anti-Lock Brake System- Power, Brake Fluid Switch, And Parking Brake Switch Inputs:

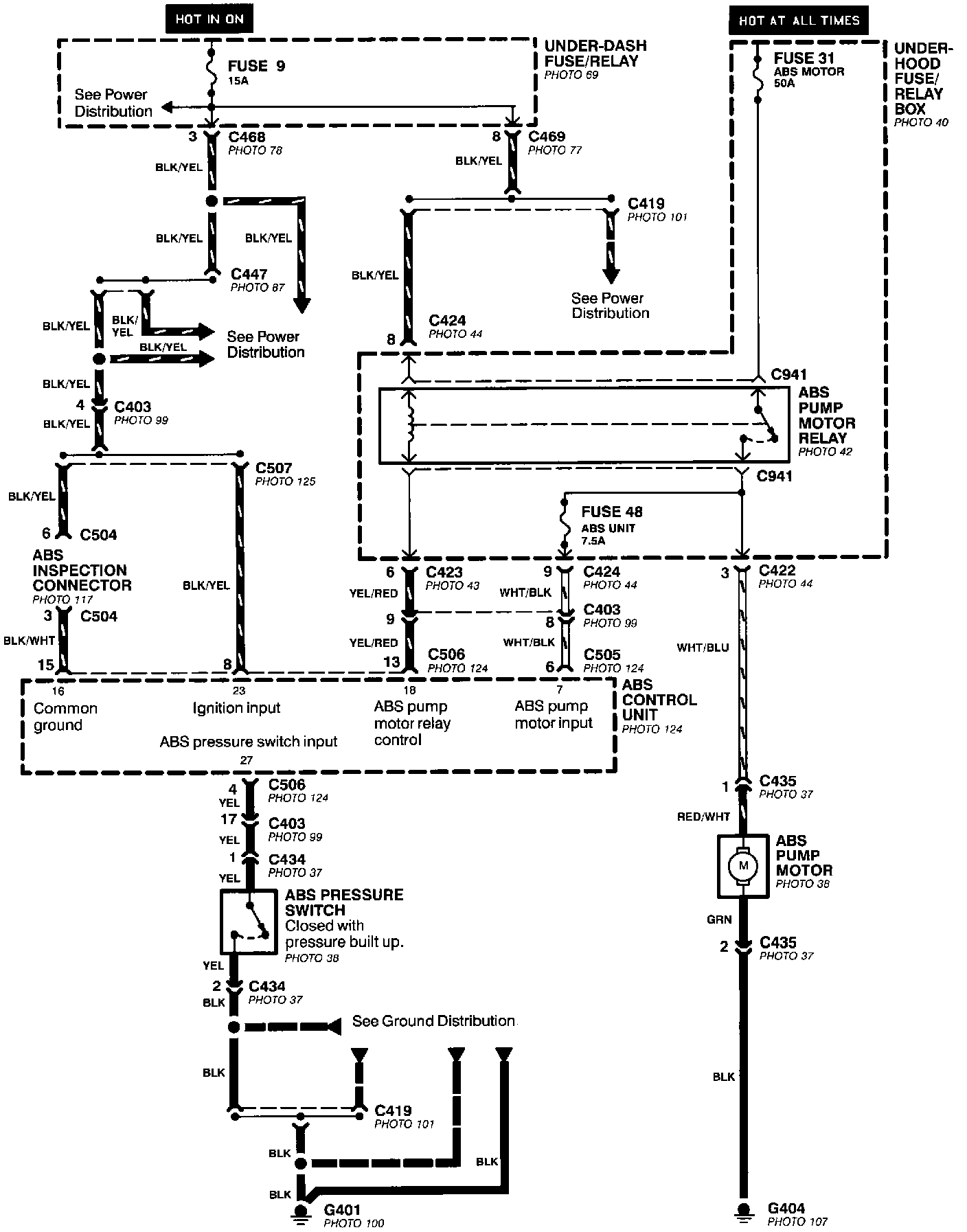

Anti-Lock Brake System- Motor, Pressure Switch, And Ignition Inputs:

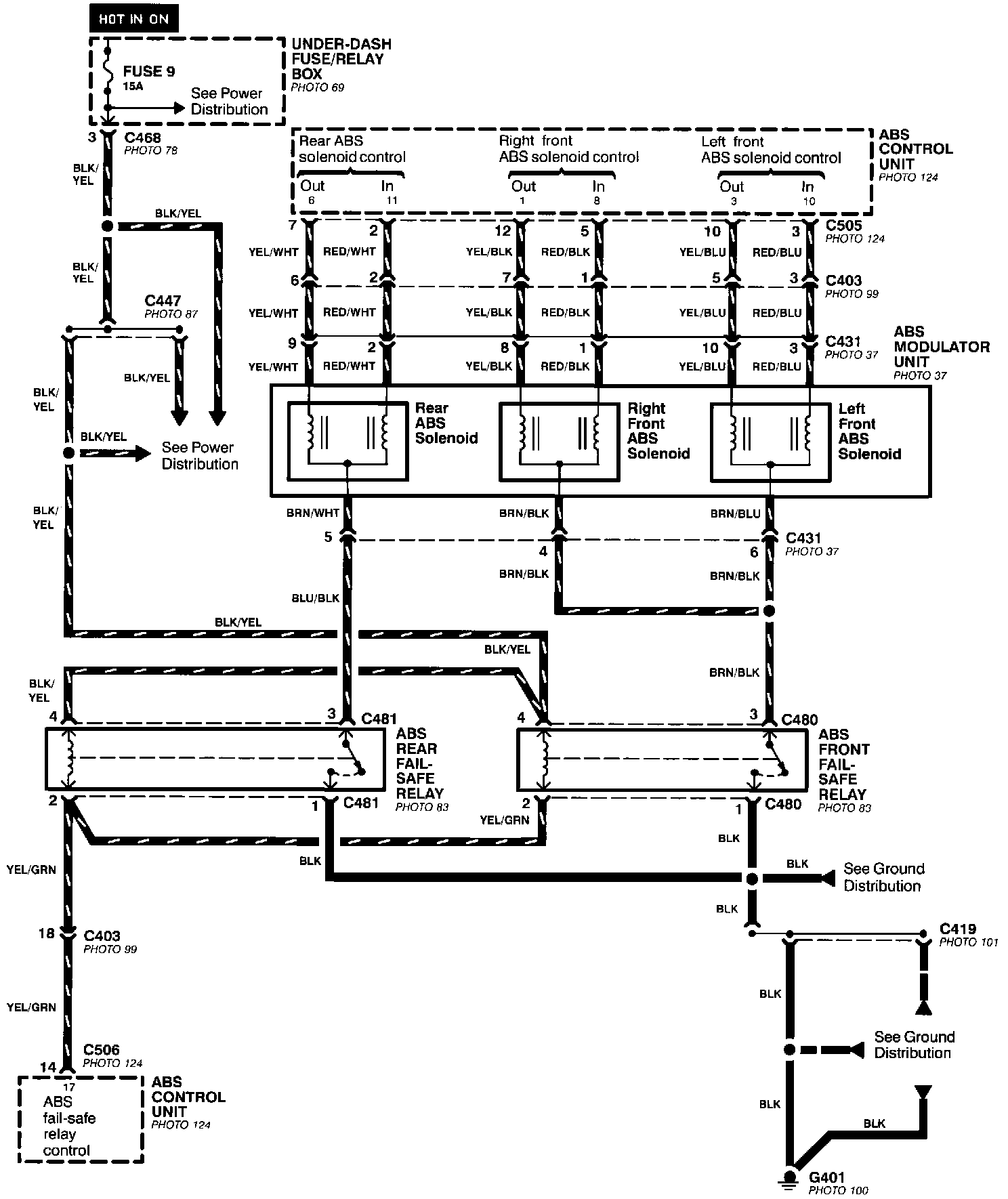

Anti-Lock Brake System- Fail-Safe Relays And Modulator Unit:
