Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations

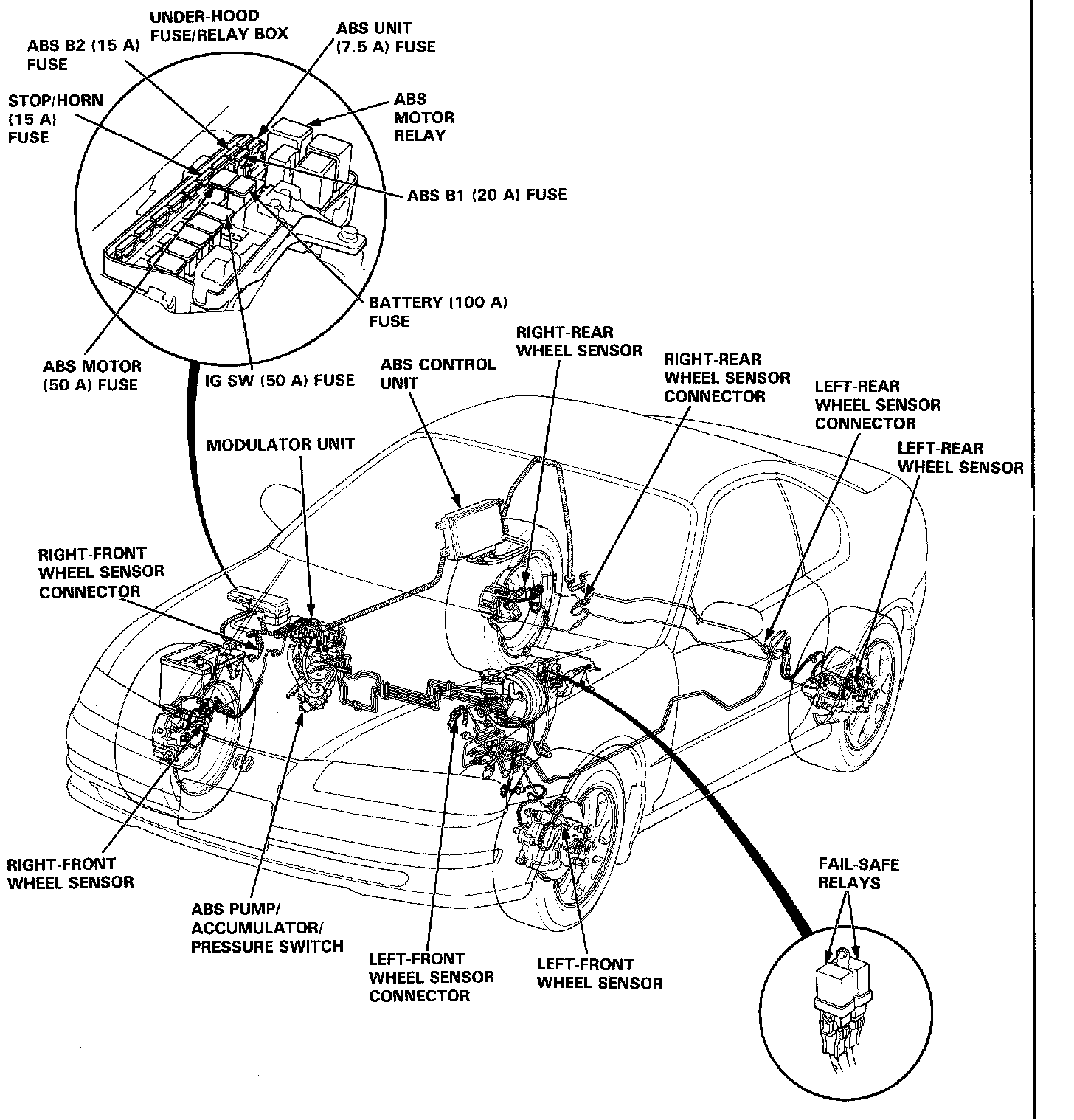

Antilock Brakes / Traction Control Systems: Locations

Fig. 19 Service Check Connector Location:






Service Check/Data link Connector (2P/3P)






Wiring/Connector Locations
