Disposal

WARNING: The accumulator contains high pressure nitrogen gas. Do not puncture, expose to flame or attempt to disassemble the accumulator or it may explode.

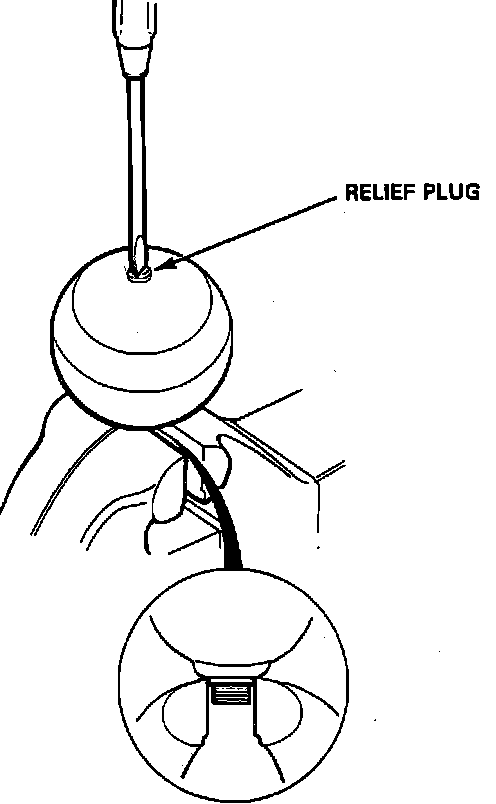

Fig. 79 Relieving Nitrogen Gas From Accumulator For Disposal:

1. Secure accumulator in a vise with relief plug pointing straight up, Fig. 84.
2. Slowly turn plug 3 1/2 turns and wait three minutes for all pressure to escape.
3. Remove plug completely and dispose of accumulator unit.
