Home >> Honda >> 1994 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 7-4

DTC 7-4

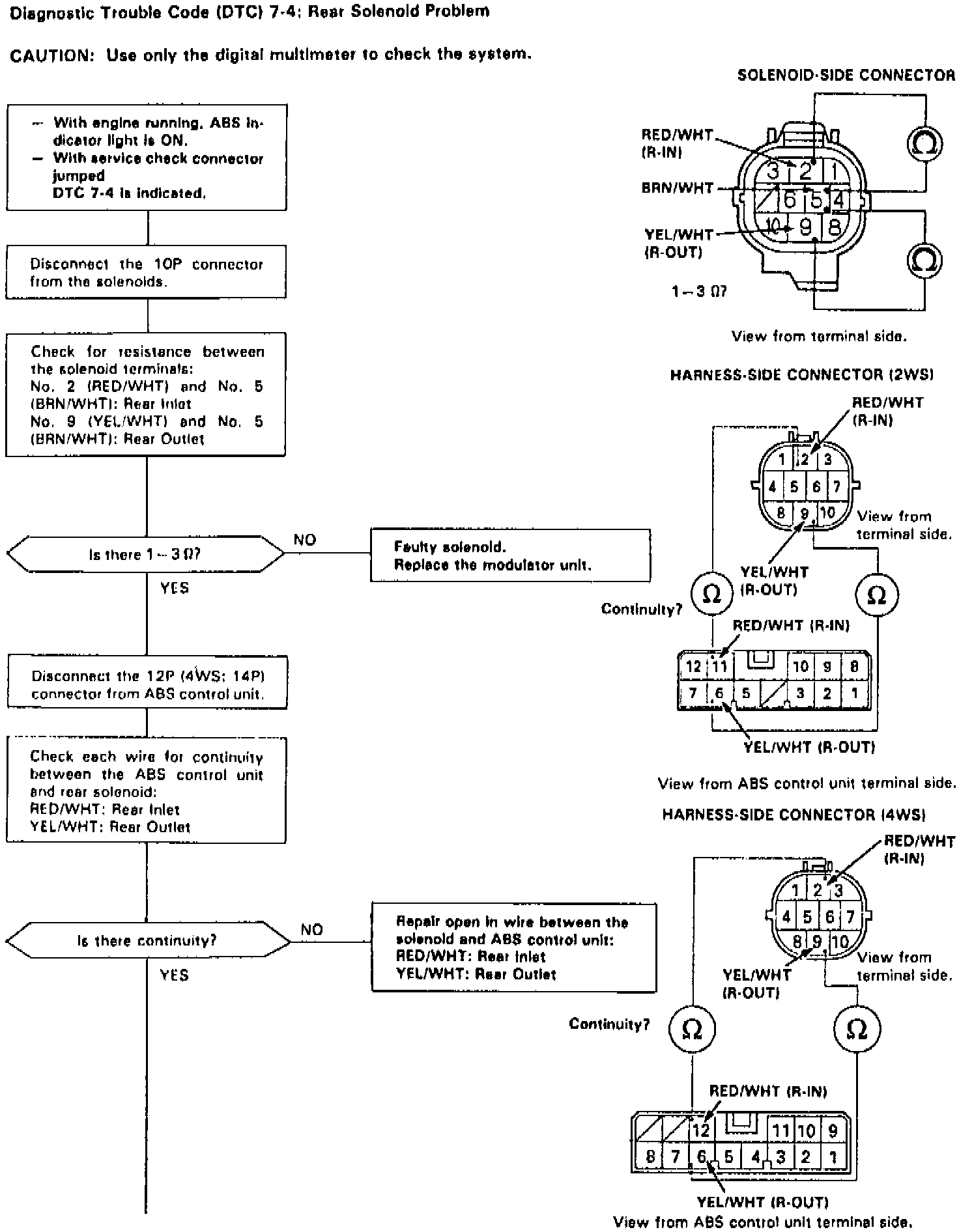

Fig. 32 Code 7-4: Rear Solenoid Problem (Part 1 Of 2):

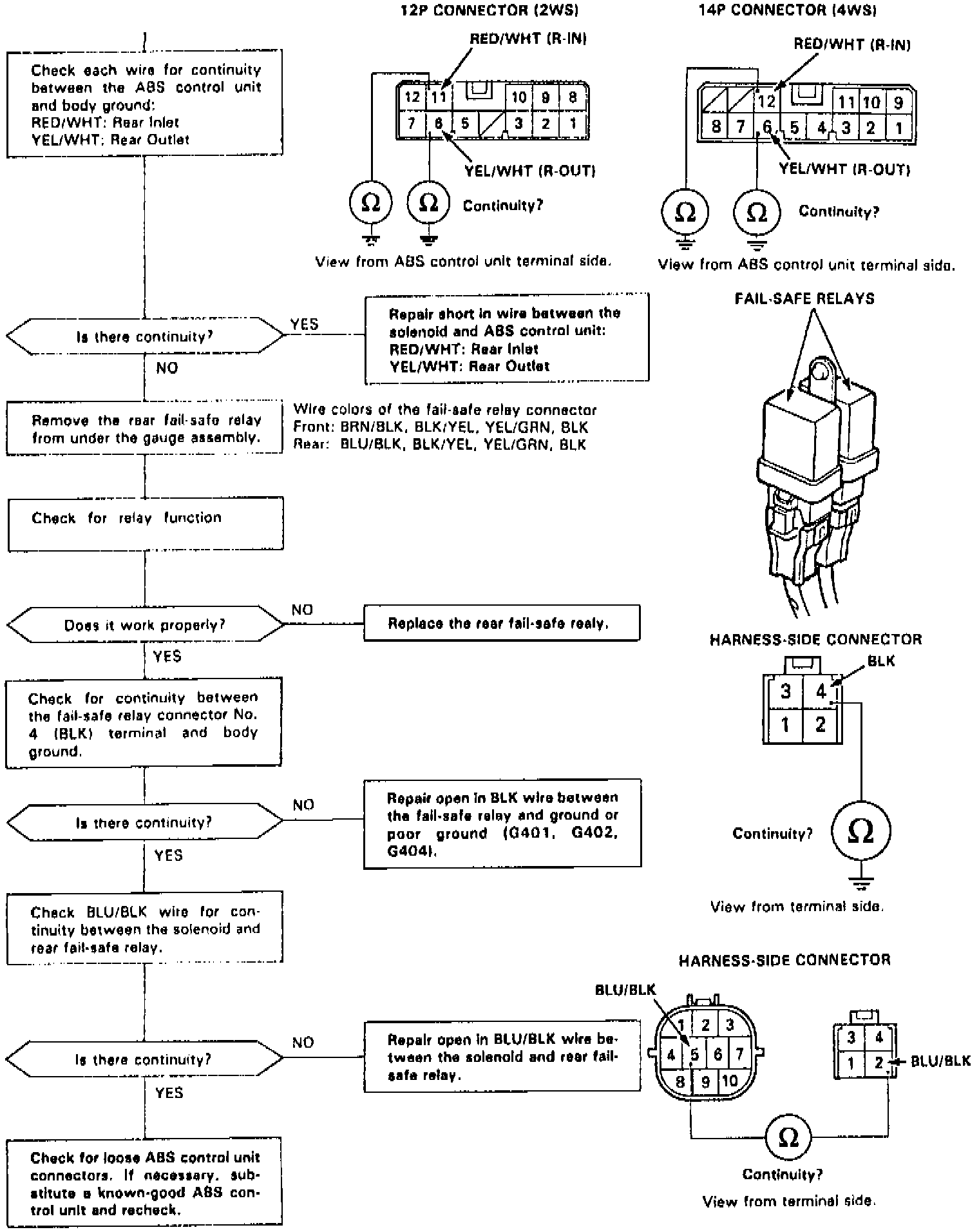

Fig. 32 Code 7-4: Rear Solenoid Problem (Part 2 Of 2):





Refer to Fig. 32 for system diagnostic charts.
