DTC 7-2

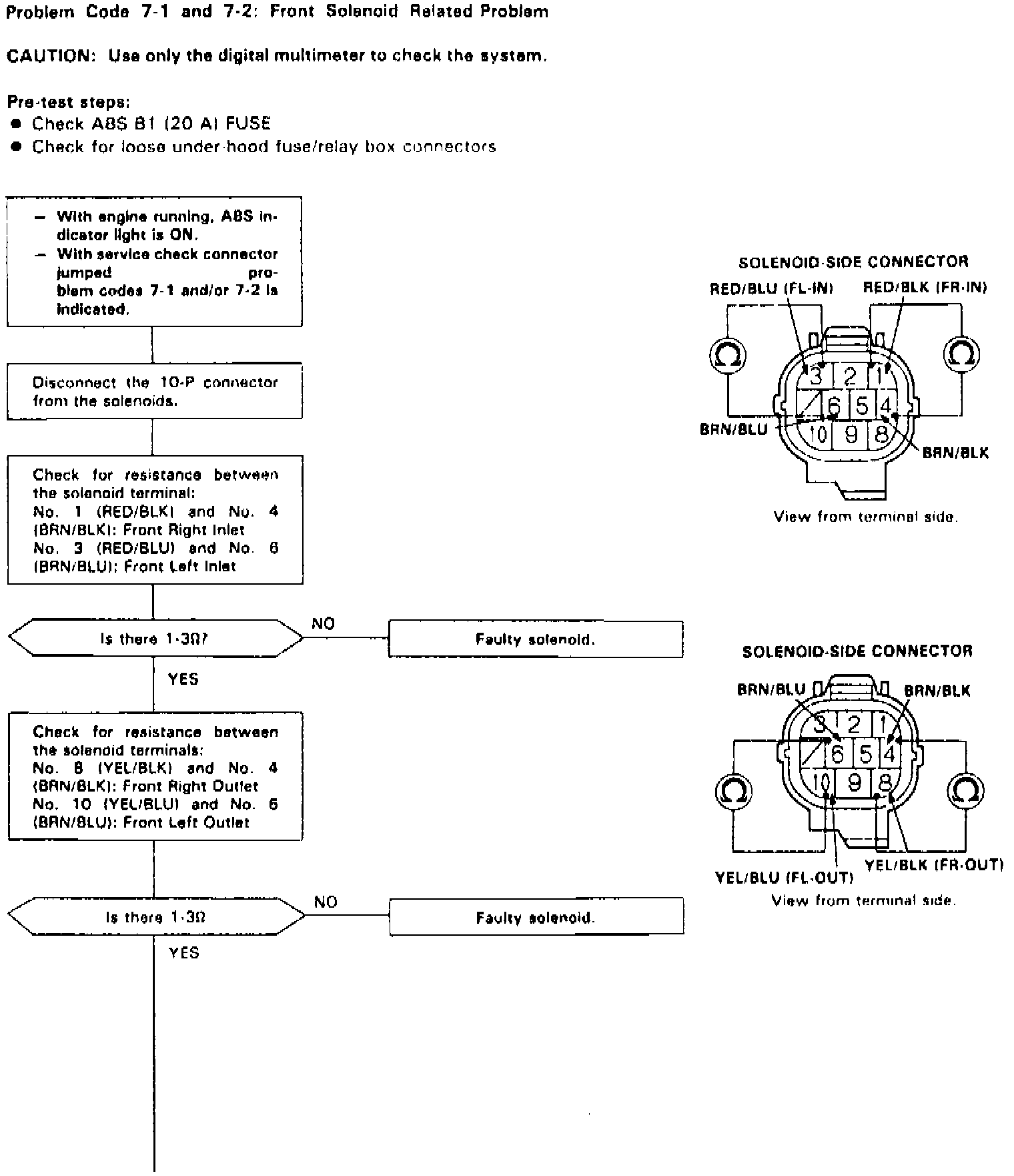

Fig. 31 7-1 & 7-2: Front Solenoid Related Problem (Part 1 Of 3):

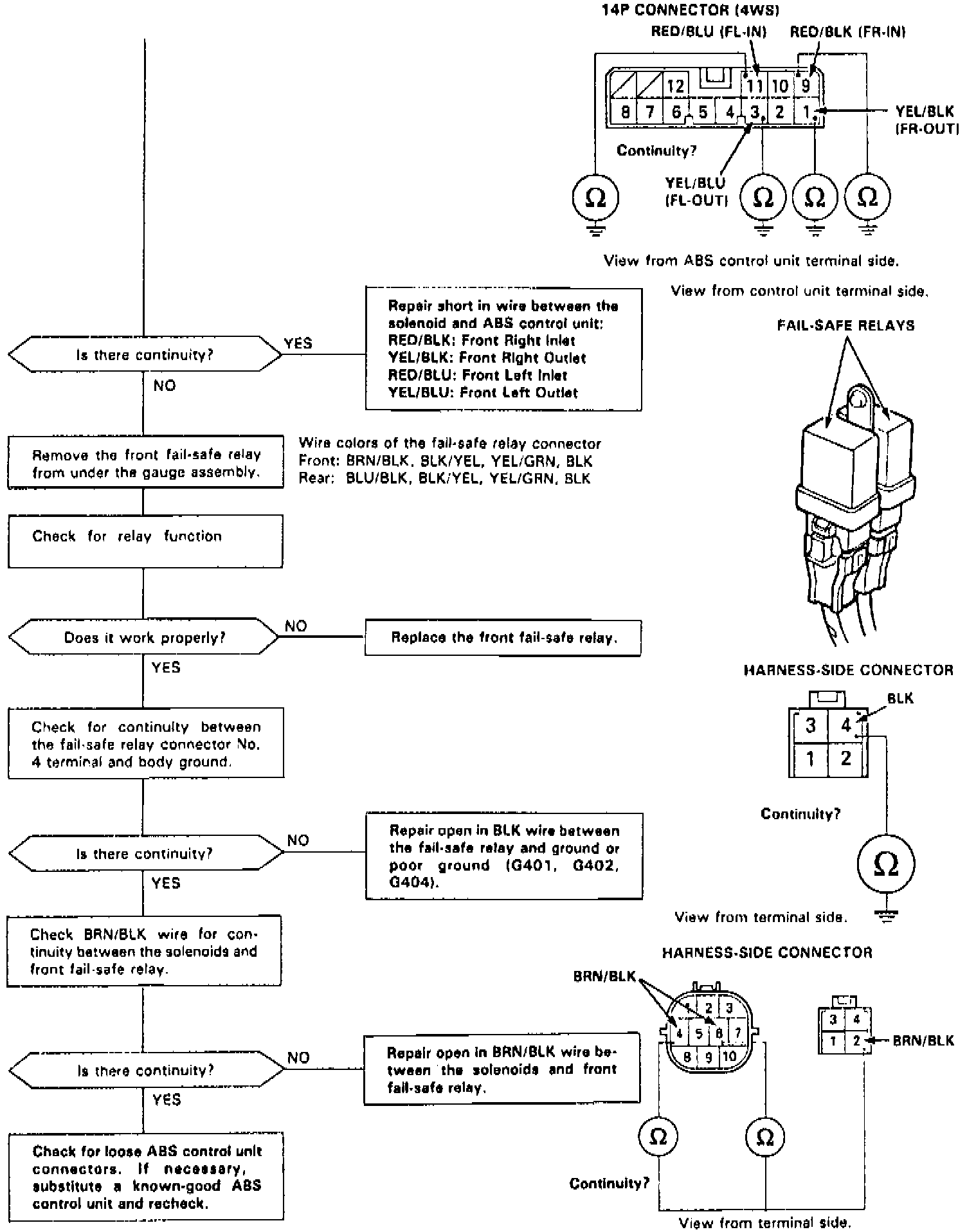

Fig. 31 Code 7-1 & 7-2: Front Solenoid Replated Problem (Part 2 Of 3):

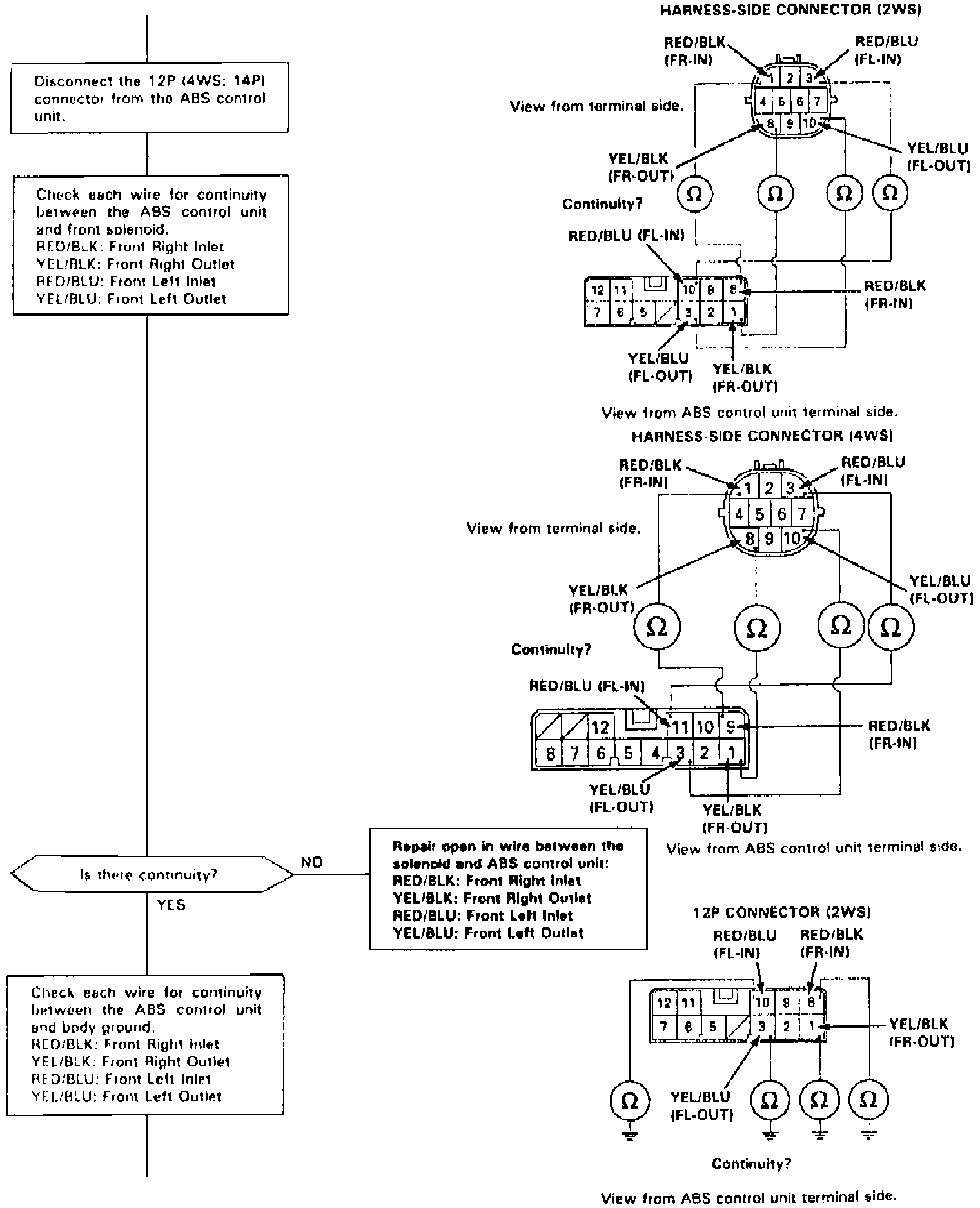

Fig. 31 Code 7-1 & 7-2: Front Solenoid Related Problem (Part 3 Of 3):

Refer to Fig. 31 for system diagnostic charts.
