DTC 6-1

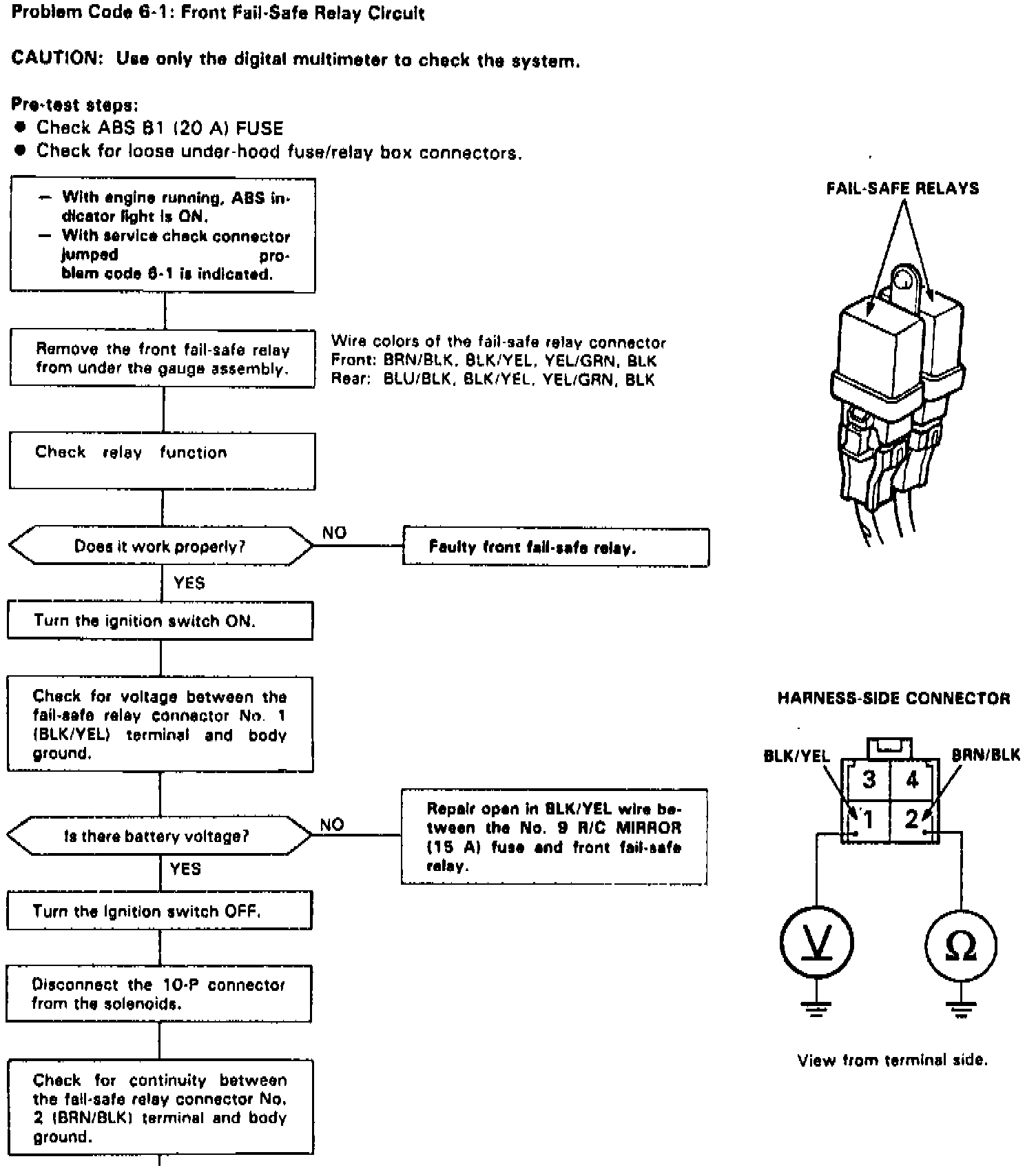

Fig. 29 Code 6-1: Front Fail-Safe Relay Circuit (Part 1 Of 3):

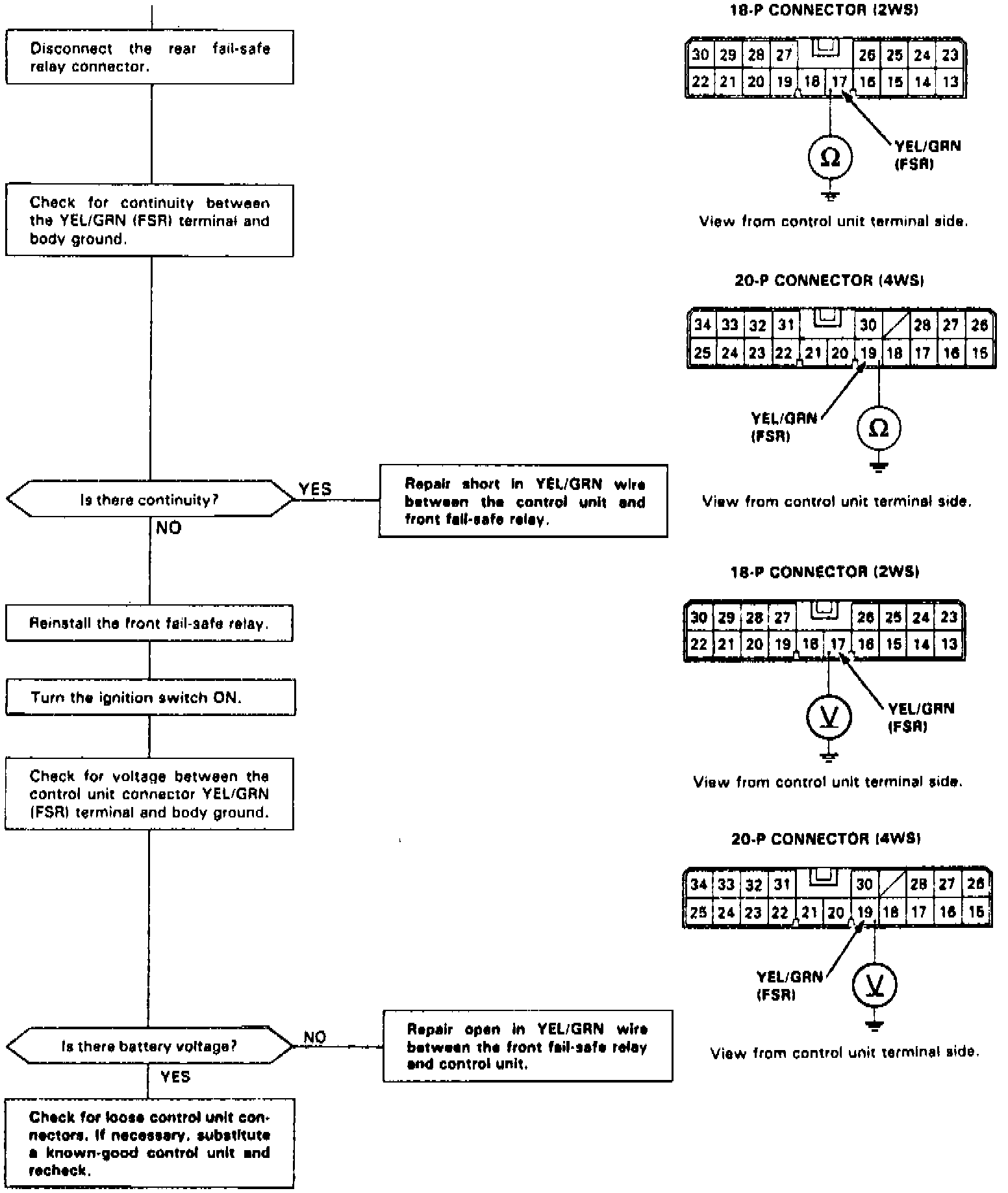

Fig. 29 Code 6-1: Front Fail-Safe Relay Circuit (Part 2 Of 3):

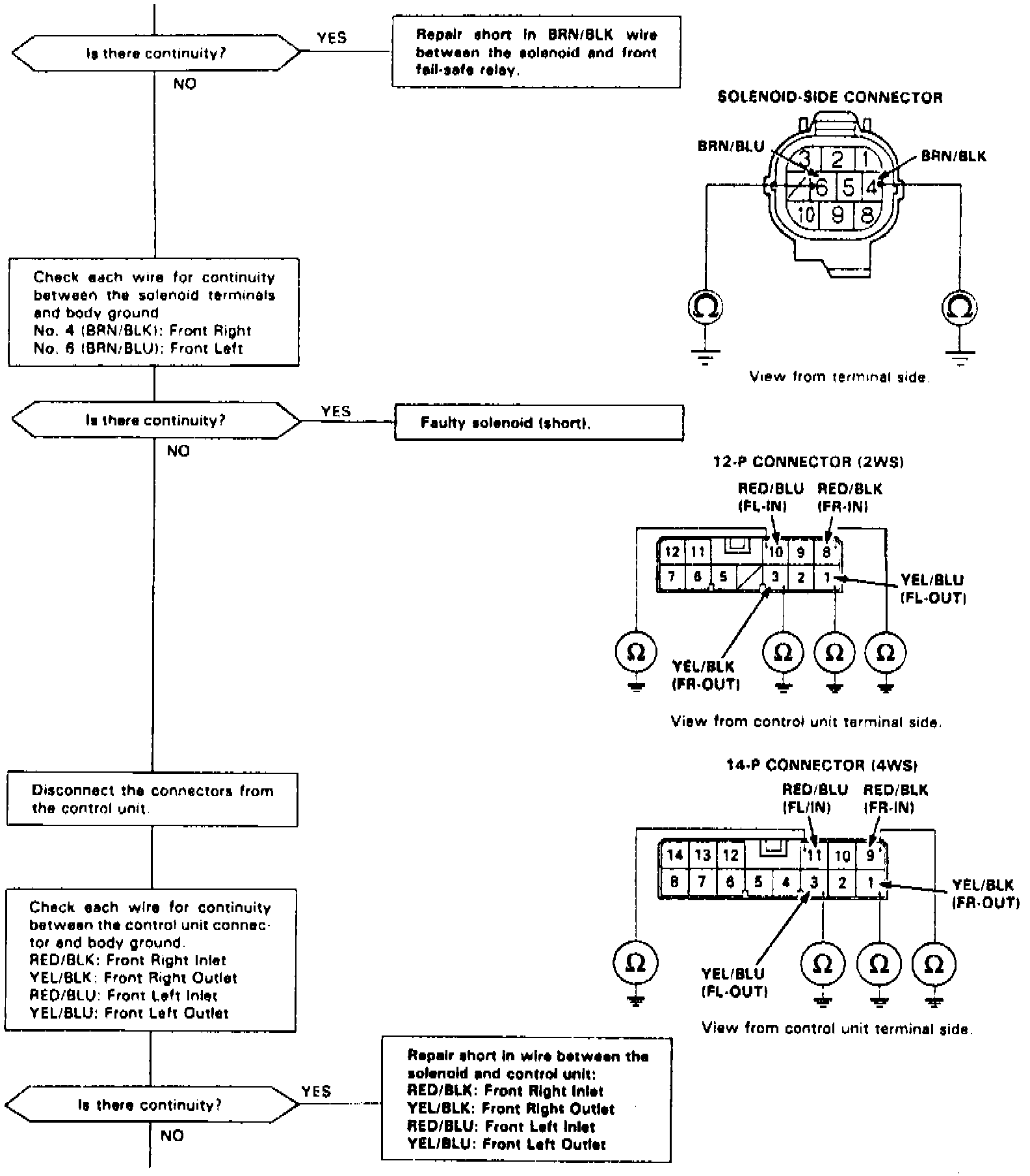

Fig. 29 Code 6-1: Front Fail-Safe Relay Circuit (Part 3 Of 3):

Refer to Fig. 29 for system diagnostic charts.
