DTC 4-2

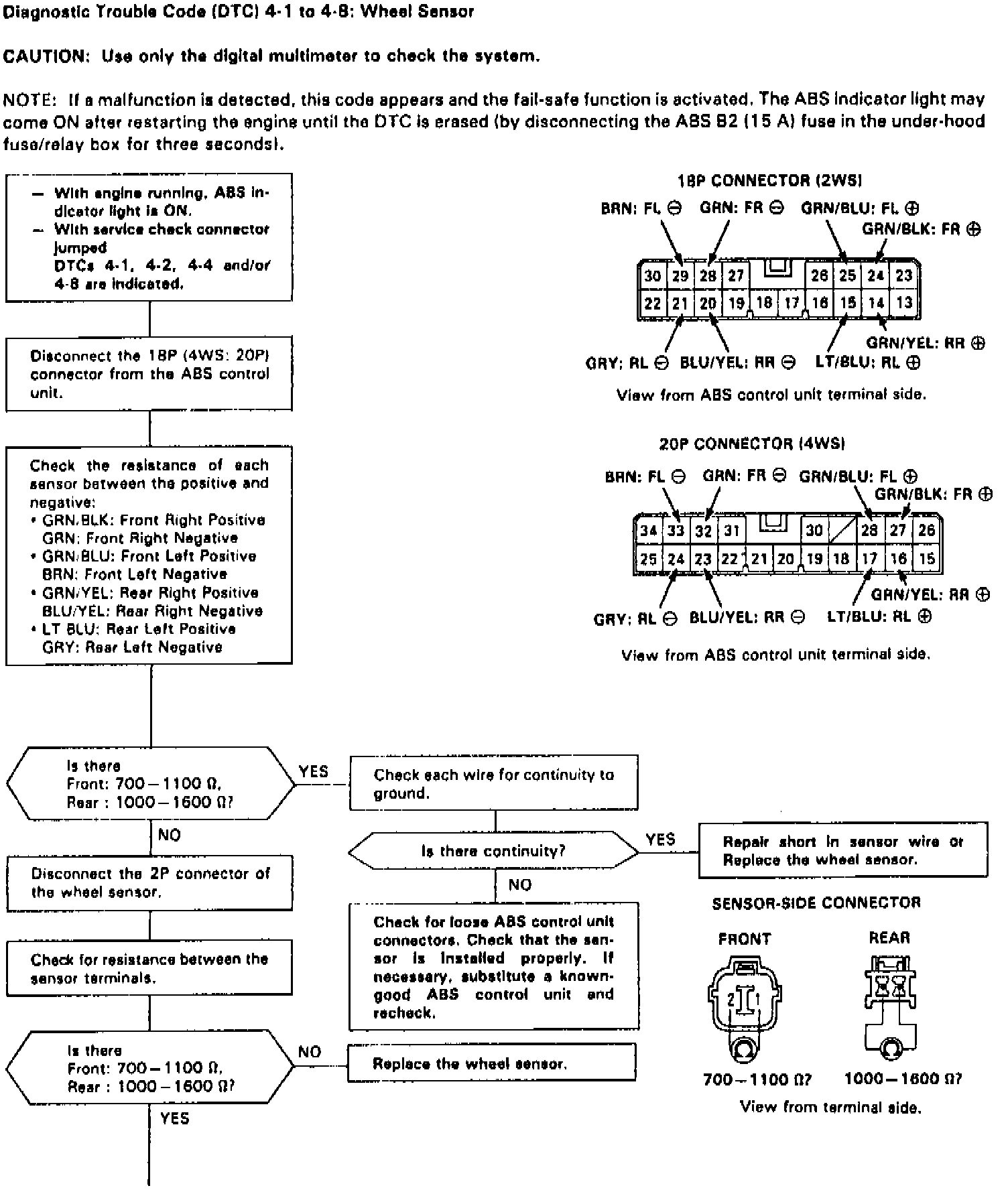

Fig. 27 Code 4-1 & 4-8: Speed Sensor (Part 1 Of 2):

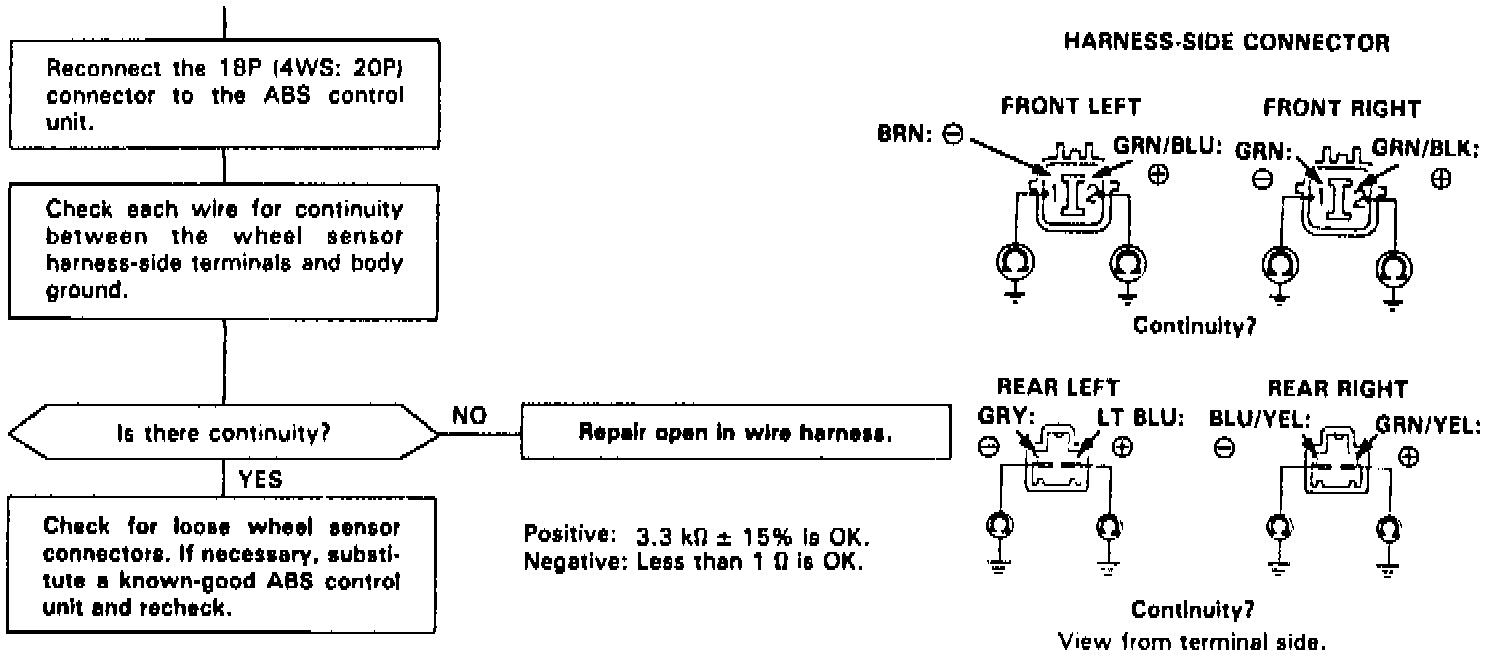

Fig. 27 Code 4-1 & 4-8: Speed Sensor (Part 2 Of 2):





Refer to Fig. 27 for system diagnostic charts.
