A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 1
>>
Brakes and Traction Control
Brakes and Traction Control

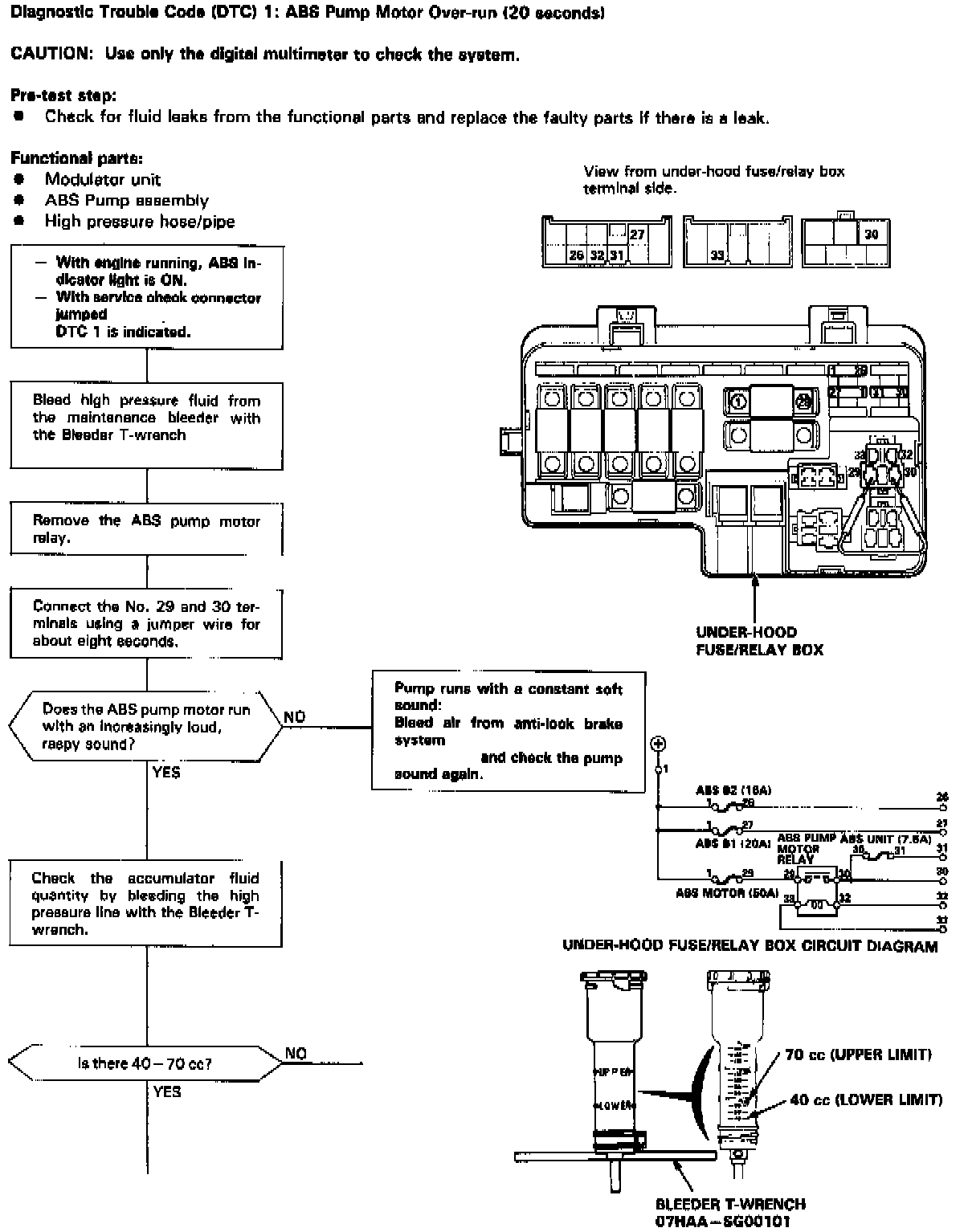

Fig. 22 Code 1: Pump Motor Over-Run (Part 1 Of 2):

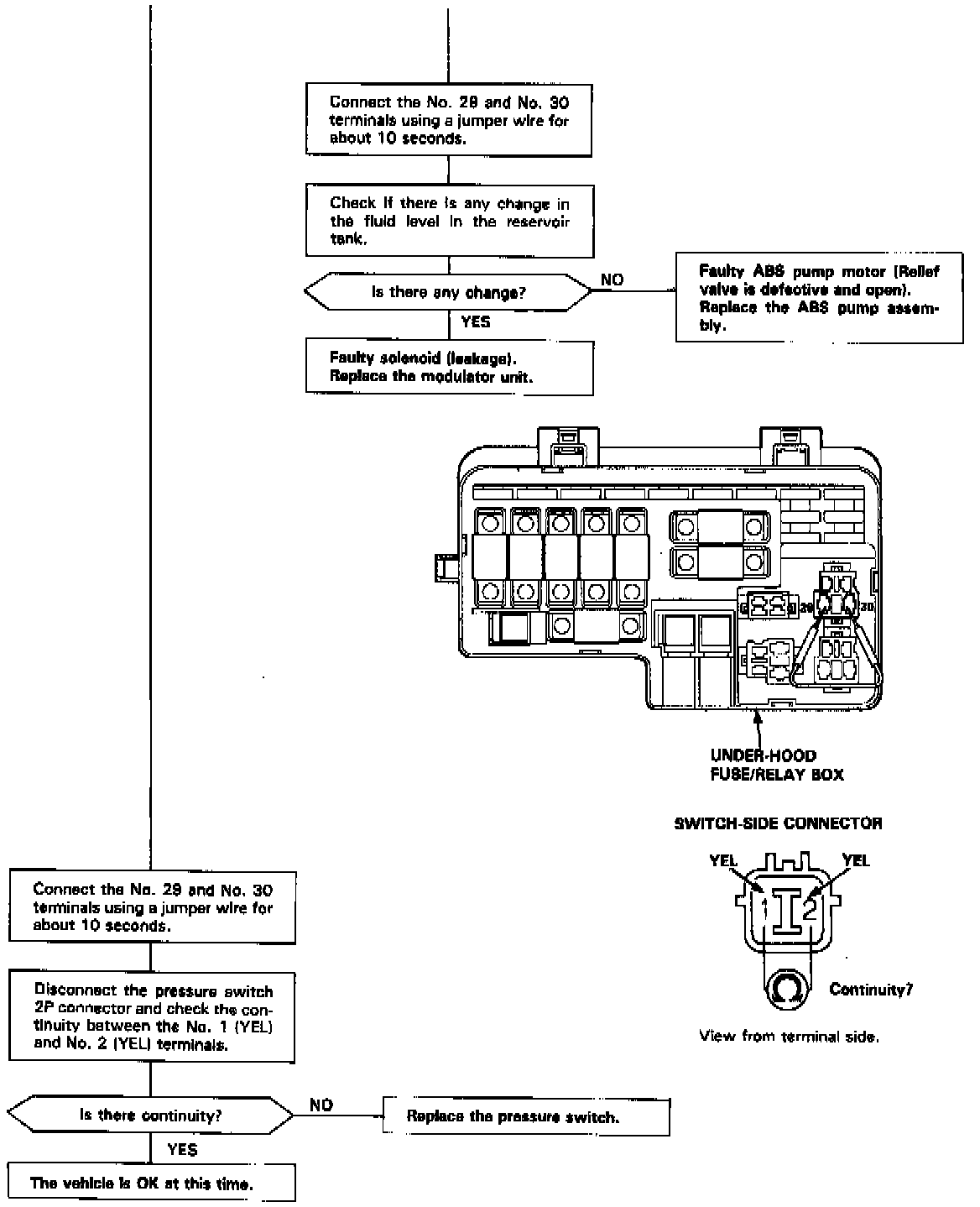

Fig. 22 Code 1: Pump Motor Over-Run (Part 2 Of 2):
Refer to
Fig. 22
for system diagnostic charts.
