FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Honda
>>
1994
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 1-8
DTC 1-8

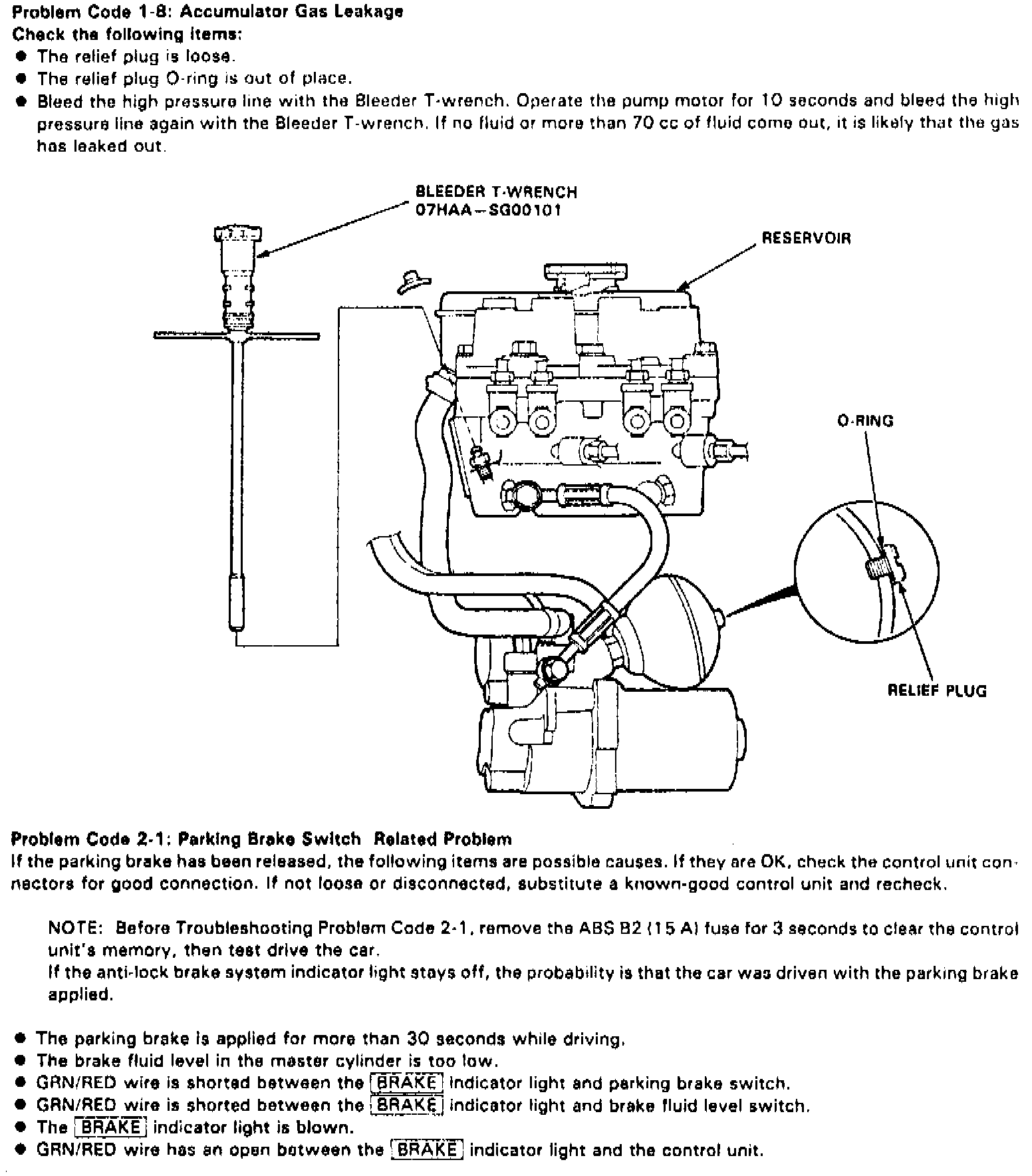

Fig. 26 Code 1-8: Accumulator Gas Leakage:
Refer to
Fig. 26
for system diagnostic chart.
