A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 1-3
>>
Brakes and Traction Control
Brakes and Traction Control

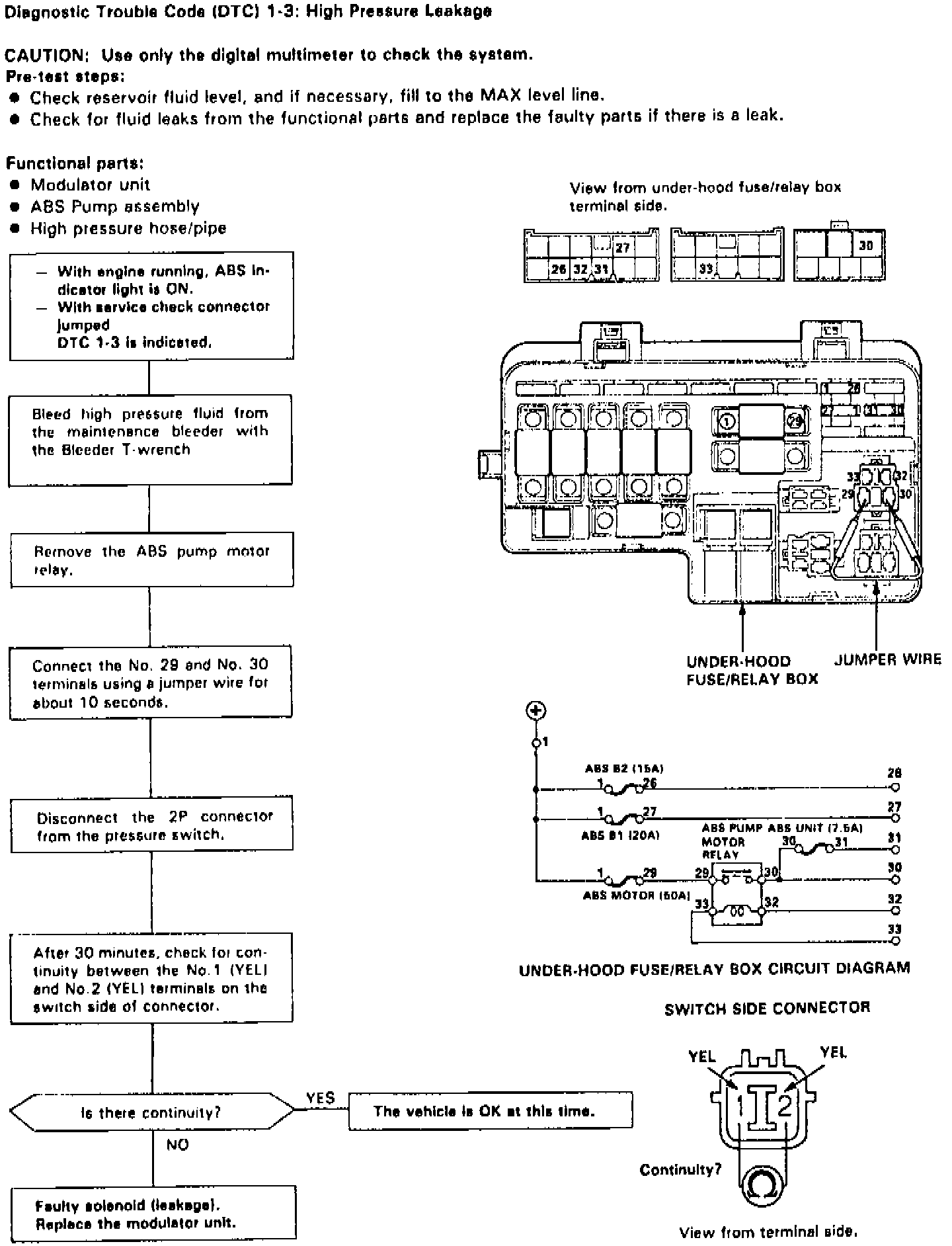

Fig. 24 Code 1-3: High Pressure Leakage:
Refer to
Fig. 24
for system diagnostic chart.
