Mainshaft Bearing/Bushing: Service and Repair

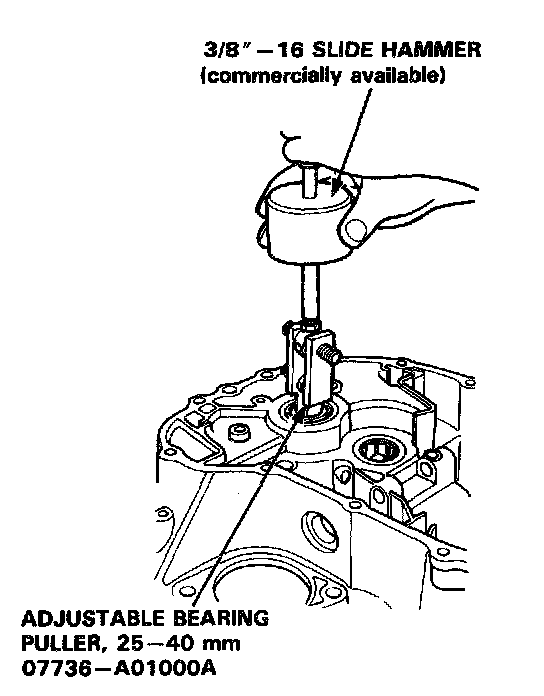

1. Remove the ball bearing using the special tools.

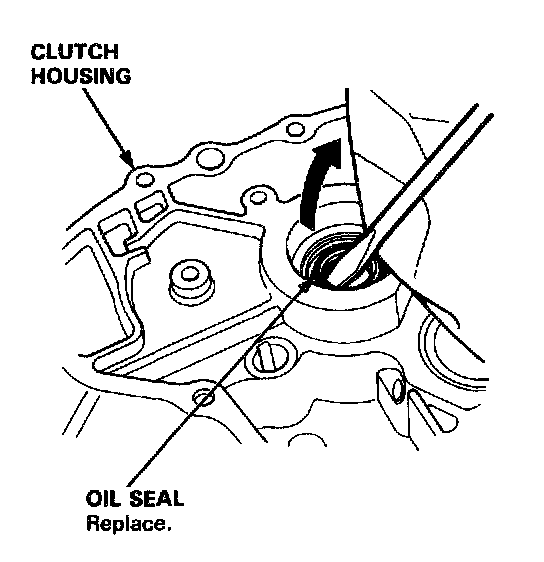

2. Remove the oil seal from the clutch housing.

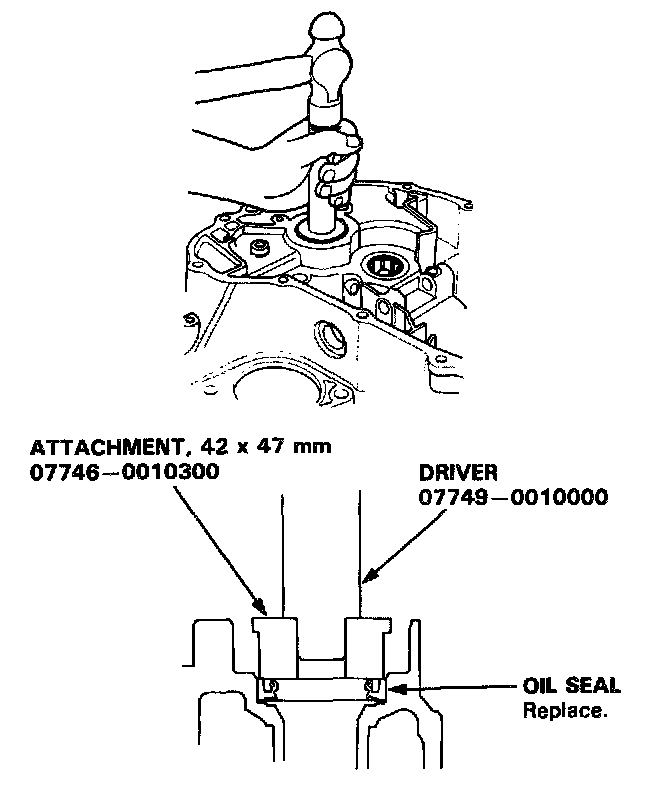

3. Drive the new oil seal into the clutch housing using the special tools as shown.

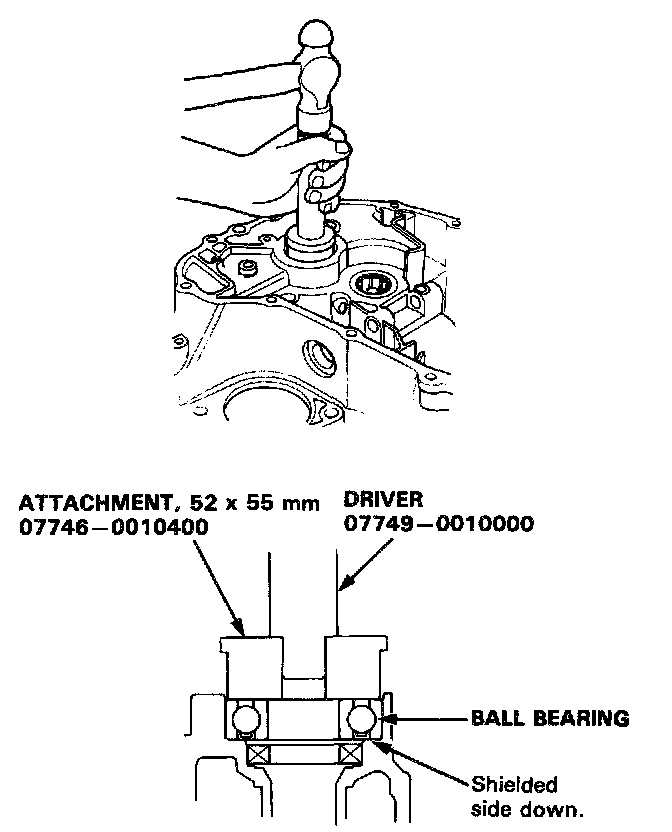

4. Drive the bal1 bearing into the clutch housing using the special tools as shown.
