Counter Gear Bearing: Service and Repair

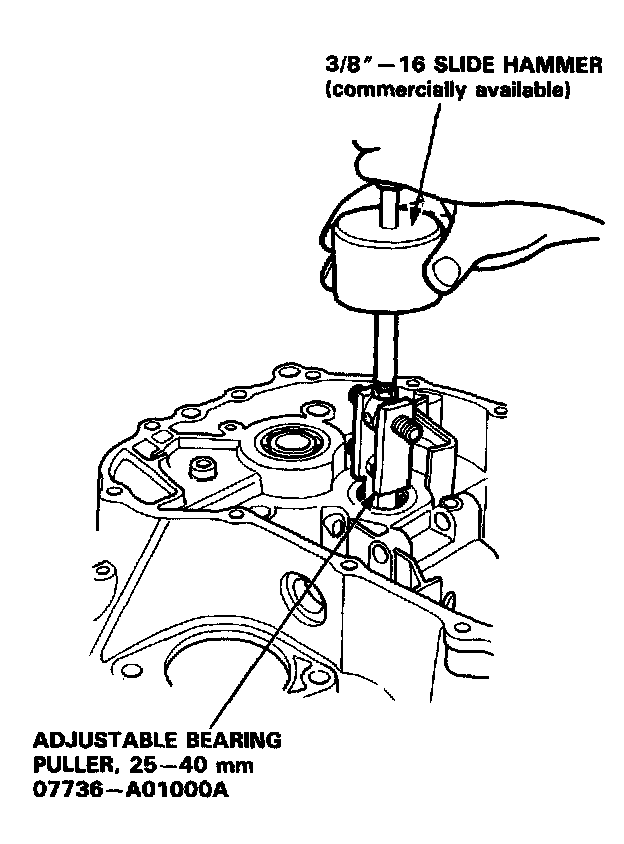

1. Remove the needle bearing using the special tools, then remove the oil guide plate.

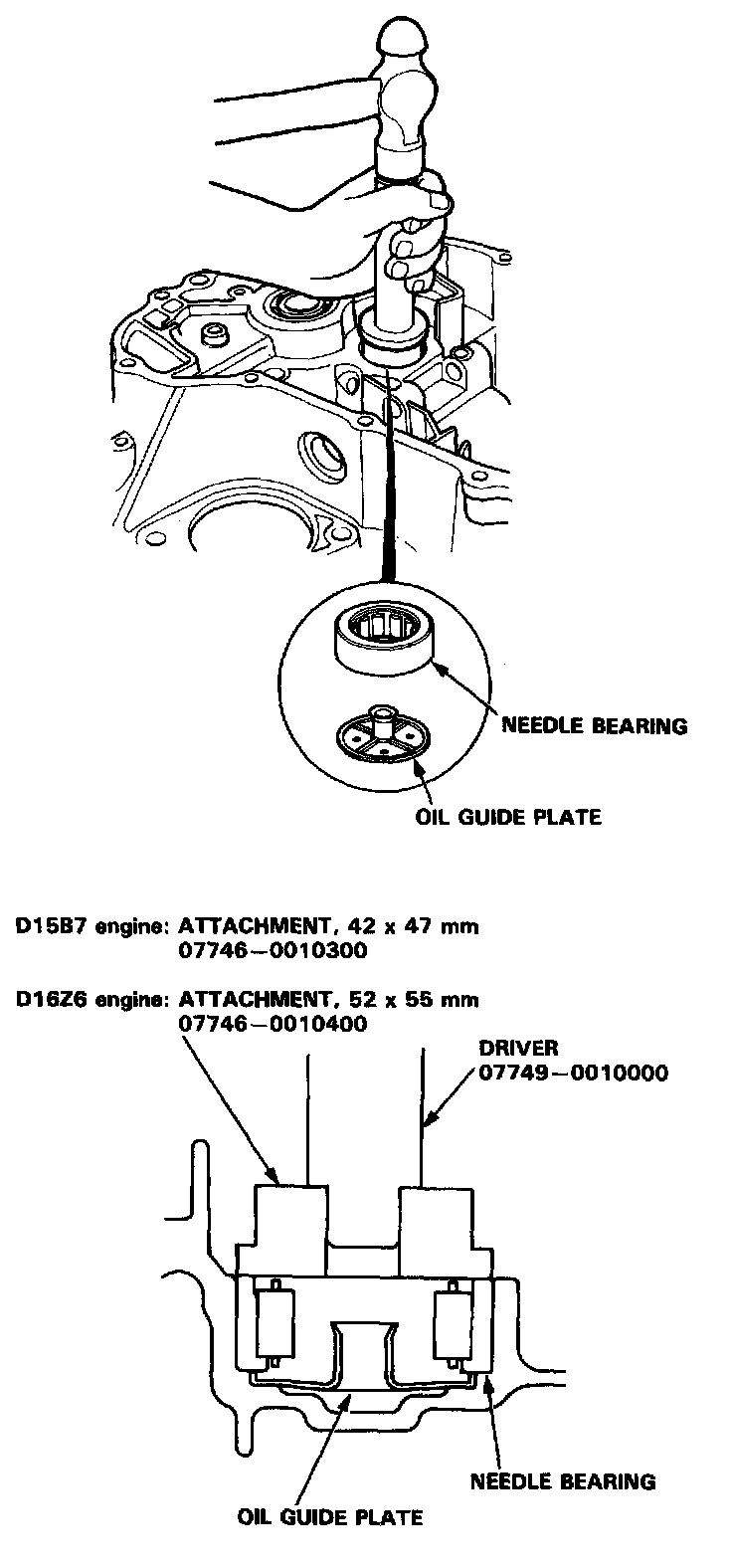

2. Install the oil guide plate, then drive the needle bearing into the clutch housing using the special tools as shown.
